FEETECH 2CH Servo Motor Controller for DC Motor FT-SMC-2CH

FEETECH 2CH Servo Motor Controller for DC Motor FT-SMC-2CH

Features

Can be reprogram by FEETECH programmer

Easy to control 2CH DC motor

Control DC motor to bidirectional continuous rotation

The speed is linear response to PWM

Accepts four mounting screws

Easy to interface with any Arduino microcontroller or PWM-capable device

Weighs only 3.5 g

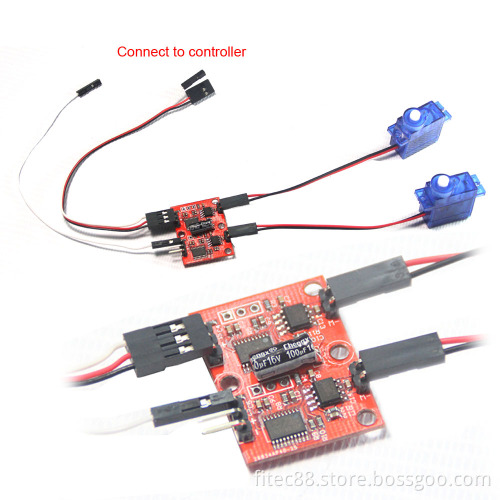

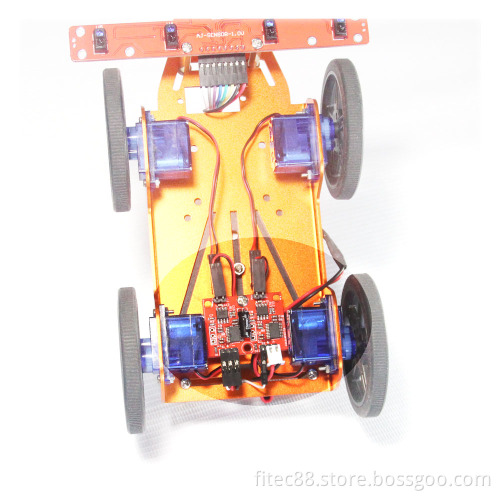

Apply to kinds of small mobile platform robot

Specification

Weight: 3.5g

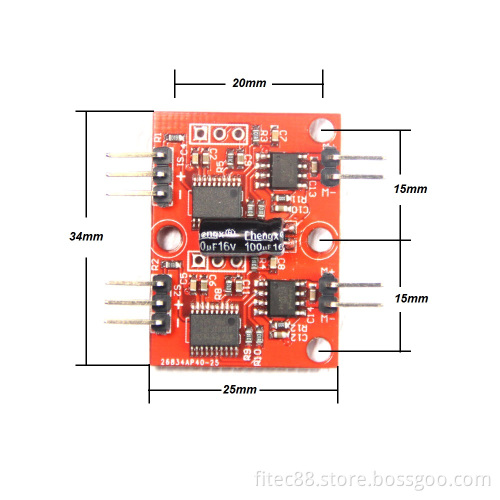

Dimension (L*W*H): 34mm * 25mm * 7.5mm

Controller: STM8F003F3P6

Working Voltage Range: 4V~9V (2CH + and – connect together)

Recommended Voltage: 6V

IDLE Current: 10Ma

1CH Continuous Load Current: 1.3A

Working Temperature: -5℃~60℃

Communication Protocol

The Servo motor controller is controlled through pulse width modulation.

Rotational speed and direction are determined by the duration of a high pulse, in the 1000us–-2000us range.

In order for smooth rotation, the servo needs a 20 ms pause between pulses.

As the length of the pulse decreases from 1500us, the servo will gradually rotate faster in the counter-clockwise direction.

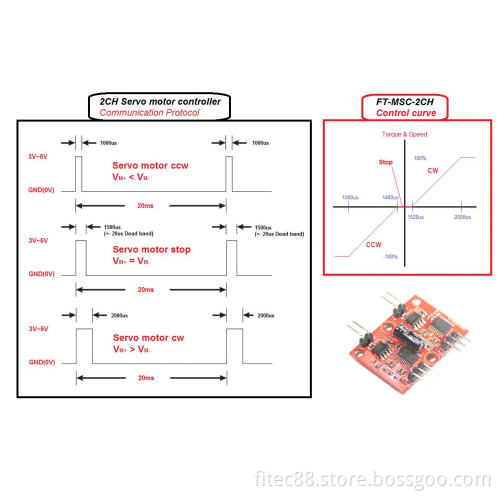

Likewise, as the length of the pulse increases from 1500us, the servo will gradually rotate faster in the clockwise direction, as can be seen in the figure below:
