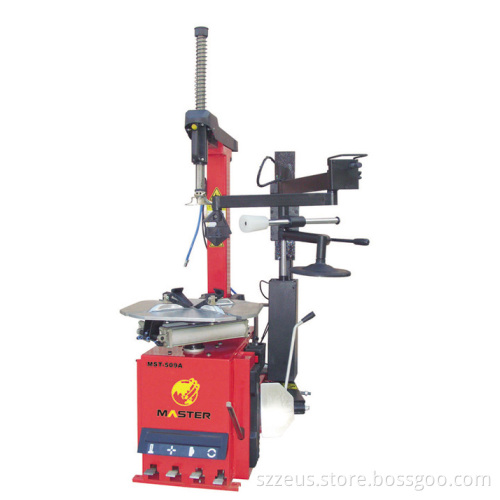

Tyre Changer MST-C509A
Any questions, pls contact with us, thanks.
Olivia
Skype: olivia_lalacool
Features:
1. Pneumatically operated tilting column.
2. Simultaneous pneumatic horizontal and vertical arm locking.
3. Pneumatically operated tilting column.
4. Capable of handling stiff, wide and low-profile tire.
5. The clamping jaws and mounting and demounting head are made of high-quality alloy steel and of scientific structural design protects steel rim from and damage during operation.
Technical Data:
1. Power Supply: 110V/220V/400V (50-60Hz)
2. Motor Power: 0.8KW/1.1KW
3. Outside Clamping: 11”-21”/279-533mm
4. Inside Clamping: 13”-24” degree/330-610mm
5. Max. Wheel Diameter: 41”/1100mm
6. Max. Wheel Width: 13”/330mm
7. Bead-Breaker Force: 2500kgf
8. Operating Pressure: 8-10 bar
9. Noise: < 70db
10. Net Weight: 280kg
11. Gross Weight: 310kg
