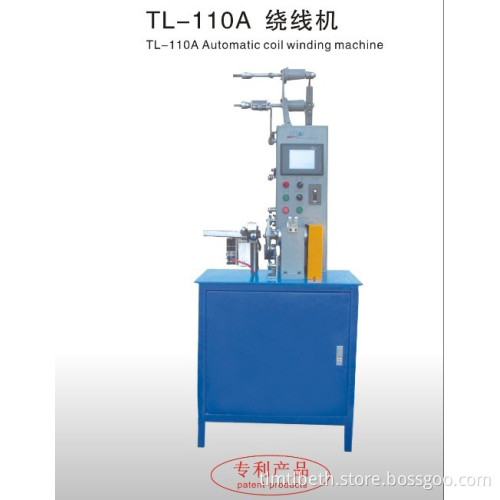

Coiling machine for heating elements

Detailed Product Description

Wind Nichrome wire to coils for heating element

Set parameter in screen
Wire diameter:0.1-1.0mm
Mandrel size: 1.0-12.7mm

Functions

1. PLC control, operated by touch screen, count by coder, and measure resistance value automatically.

2. The inverter controls the shaft speed. Coiling and cutting the coils automatically.

3. Can set the parameters like wire diameter, Ohm/M, Ohm value in the touch screen.

4. Cut by pneumatic cylinder, it can control the number of turns and with clean ends cut.

5. The machine with small size, high accuracy, easy operation and high production.

Main parameters

1.  Power supply: Single phase 220 plus or minus 10% 50Hz

2.  Shaft rotation speed: 0-2134RPM

3.  Plastic wheel rotation speed: 0-74RPM

4.  Plastic wheel hole ID: 14mm, outer dia100-200mm

5.  Collet inner hole: 6.0 +0.05+0.01

6.  Motor rate: spindle motor370W/1340

7.  Plastic wheel motor: 60W/1400RPM

8.  Double roller motor: 120W/1400RPM

9.  Coil ID (mandrel diameter):0.75mm-12.7mm

10. Wire diameter:0.10mm-1.0mm

11. Packing size (L*W*H):780*870*1930(mm)

12. Gross weight:188kg
