Contact Now| Place of Origin: | China |
|---|---|
| Supply Ability: | 10000pcs/month |
| Certificate: | CE; ISO; ROHS |

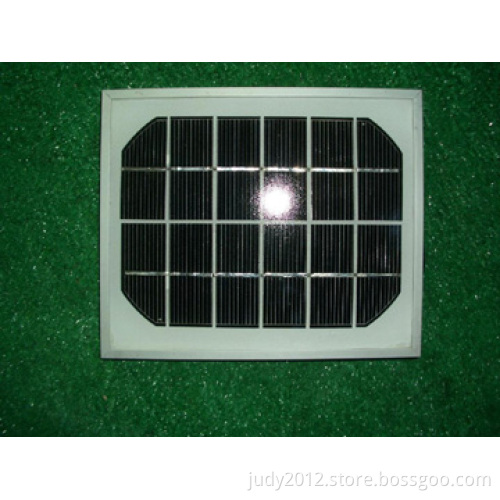

PV solar module 3w
1. Ideal weaklight performance
2. High convertion efficiency
3. Prompt delivery
4. Energy saving
solar module3w <--> Parameter:
|
Max power |
3w |
|
Max Power Tolerance[%] |
±3% |
|
Open circuit voltage(V) |
10.5 |
|
Short circuit current (A) |
0.36 |
|
Optimum operating voltage(V) |
9.0 |
|
Optimum operating current (A) |
0.33 |
|
Max system volt[V] |
DC600V |
|
solar cell type |
Mono 125*62.5mm |
|
number of solar cell |
18 |
|
temperature coefficient of pmax |
–0.43%/°C |
|
temperature coefficient of voc |
–0.33%/°C |
|
temperature coefficient of isc |
0.052%/°C |
|
NOCT |
48°C±2°C |
|
Dimensions of Module |
215*168*17mm |
|
VDC(v)<3000 |
<1000 |
|
Operating Temperature{°C} |
–40~85 |
|
Storage Temperature{°C} |
–40~85 |
Design Characteracteristics:
High efficiency cells operate under both optimal and low light conditions
Cells assembled in modules with a tight range og current performance to ensure optimal operation
Antireflective coatings and High Transmission Low Iron Glass toincrease module output
Solid Reliable Constrution:
Strong frames made from anti-corrosion(anodised)treated aluminium
Toughened Glass surface and reinforce backing board designed to prevent water intrnsion
Sealed Junction boxes filled with resin to keep moisture out ,and Highest Quality EVA and sealants to further protect against moisture
Designed for Seamless Integration with your system
Module frames contain 4-8 mounting points for ease of installation with a variety of racks
All modules supplied with 1m double insulated MC cords for ease of interconnection
Industry leading junction boxes containing Bypass Diodes to reduce the impact of partial shading
PV solar module, pv solar module 3w \- Application:
1) make up of solar energy systems
2) charge street lights
3) provide electricity for house
4) use to water field, or farmland
5) provide electricity for public area, or for poor area.
6) beautify living conditions.
Solar module quality and warranty:
1. Peak power of single module in guaranteed in +-3% power tolerance.
2. Average power of modules in single order is guaranteed not less than the peak power
3. Rigorous quality control meets the highest international standard
4. 5 years limited warranty on material and workmanship
5. Power is not less than 90% in 10 years and 80% in 25 years.
