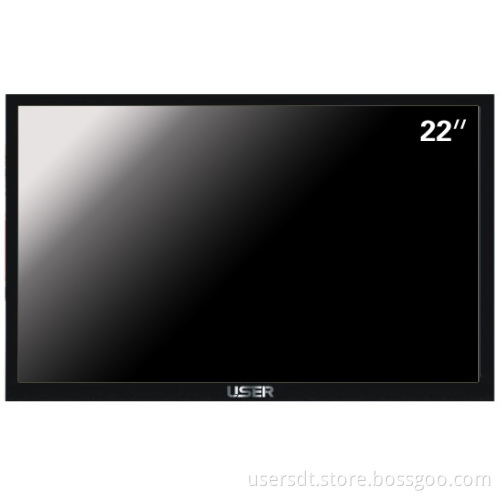

22 inch CCTV LCD Monitor

Feature:
Special design for CCTV monitoring.
Using durable components to maintain the stability of uninterrupted work.
Intelligent Image Enhancement gives you perfect performance on both static and dynamic images.
Smart Contrast Ratio Technology provides the high contrast ratio, which can dynamically adjust contrast between black and white to provide sharper and brighter images.
16.7 M display colors deliver rich and colorful images.
High brightness and Low power consumption.
Multi-Language OSD and User Guide.
Easy to install and maintain.

Application:

CCTV (closed circuit television) monitoring

3.Specification
Product NO.:US-M2201P
Screen:22"TFT-LCD
Display area:476(W) x 298(H) (mm)
Resolution: 1680 x 1050
Aspect Ratio:16:10
Contrast Ratio:1000:1
Number of Colors:16.7M
Brightness:450cd/m2
Viewing Angle:178°/178°
Pixel Pitch:0.282(H) x 0.282(V) (mm)
Response Time (GTG):5ms (Typical)
Horizontal frequency :30-75KHZ
Vertical frequency :56-75KHZ
Surface Treatment :Anti-Glare
Working temperature :0-50(Degrees Celsius)
Storage temperature :-20-60(Degrees Celsius)
Color system :PAL/NTSC/SECAM
Compatible HDMI input/DVI:480P,576P,720P,1080I,1080P
3D Comb filter:Yes
Video reduction noise : Yes
Composite video input : 2(BNCx2)
Y Pb Pr/Y Cb Cr input:1 (BNCx3)
S-video :1
D-15 pin RGB input:1
HDMI /DVI :1
Composite video output: 2(BNCx2)
Language :Chinese, English, espanol, Italiano, Francais, Deutsch
Color  :black (customized)
Dimension :496.7Lx323.1Wx66D (mm)
Installation:wall-mounted,  desktop
Life:no less than 60,000 hours
Voltage :AC100V - 240V, 50/60Hz
On Mode (Average) : 52W (Max)
Standby Mode: <3W (Max)
