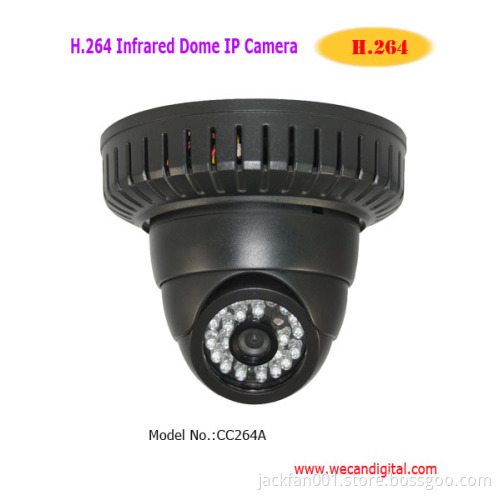

H.264 Infrared Dome IP Camera

Features:
1. 1/3” SONY 420TVL CCD color Sensor;
2. H.264 Main Profile compression algorithm;
3. 720*576P resolution real-time output.
4. 24pcs 850nm led lights, 20m distance with night vision.

Specifications:
Sensor:1/3" SONY 420TVL CCD color Sensor
Effective pixel:720*576P
Minimum illumination:0.5 Lux
Lens:f=3.6mm, F=2.0, Fixed Iris
Lighting:24pcs 850nm Infrared LEDs, 20m distance
First Stream Resolution:D1(720*576)/CIF(352*288)/QCIF(176*144)
Second Stream Resolution:CIF(352*288)/QCIF(176*144)
Compression:H.264
Frame rate:PAL:25fps; NTSC:30fps
First Stream Bit rate :90kbps ~ 2.048Mbps
Second Stream Bit rate:90kbps ~ 512kbps
OSD:Support
Audio Compression:G.711/G.726
Basic Protocol:TCP/IPH,TTP,SMTP,FTP,DHCP,DDNS,UPNP,NTP
Mobile Phone View:Support
 Video control:Support
 Motion Detection :Yes( 4 zone detection )
 Triggered Actions:Email/ send message to alarm server
User Setting:Three levels
 Date/ Time Setting:Support
Upgrade:Upgrade from network
DDNS:A free DDNS provided by manufacturer
Ethernet:10Base-T/100base-TX
Audio In:Audio input interface x 1
OS Supported:Microsoft Windows 98/2000/XP/Vista, Mac OS
Browser:Internet Explorer6.0 and Above or Compatible Browser, Safari/Firefox etc.
Power:DC 12V
Power consumption:less than 6W
Operating temperature:-20~ 45 degree
Humidity :10% ~ 80% non-condensing
Dimension(L*W*H):135*135*115mm
Weight:393g
