Product Description

i                   Introduction:

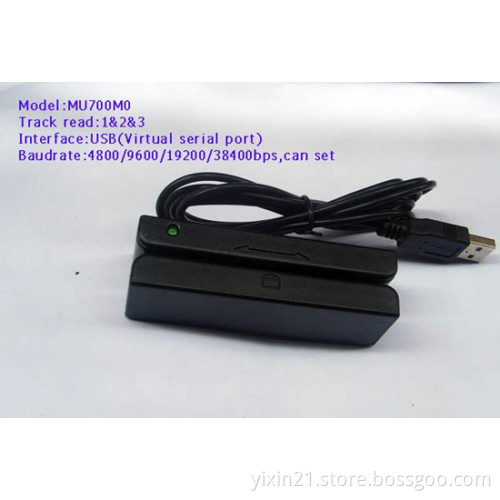

MU700M0 serial products are hand swipe operated magnetic card reading machine with USB interface(Virtual serial port), adopting high integrated magnetic card decoding chip. Theyhave small electricity consumption and stronginterference resistance. They comply with ISO-7811 7812 magnetic card decoding standard completely. It can read card bi-directionally, free to choose data with or without enter keyand has intelligent lights to alert if card data is read correctly. Exquisite magnetic installation structure makes card reading more stable and reliable, which is our patented technology. Reasonable product design makes products smalland compact.

ii.              Features:

u      123 Tarck read

u      Manual-swipe type reader

u      Bi-directional reading capability

u      USB interface (Virtual serial port)

u      Baudrate 4800/9600/19200/38400 can set

u      Operation responded by two LED

u      Head rated 800,000 passes,electronics rated 125,000 hours

u      Power supplied by PC USB

u      DLL/OCX developing kit for Windows

u      Card feeding sSpeed : 10 to 150 cm/sec

iii.              Applications:

u      Magnetic stripe card reader

u      POS Keyboard

u      Security Control

u      CAT(card authorization terminal )

iv.              Environment Requirements:

u      Ambient Temperature

- Storage : -20 C to +70 C

- Operating : 0 C to +50 C

u      Ambient Relative Humidity

- Storage : 0 to 95%

- Operating : 10 to 90%

v.              Physical Characteristics:

u      Color:black

u      Weight:80g

u      USB cable length:1.5m

u      Current:Less than 45mA

u      Operating Locus:Indoor only

u      Power Supply:DC 5V +/- 5% ( Supplied from the host computer )

u      Dimensions:90 mm ( D ) X 27 mm ( W ) X 28 mm ( H )
