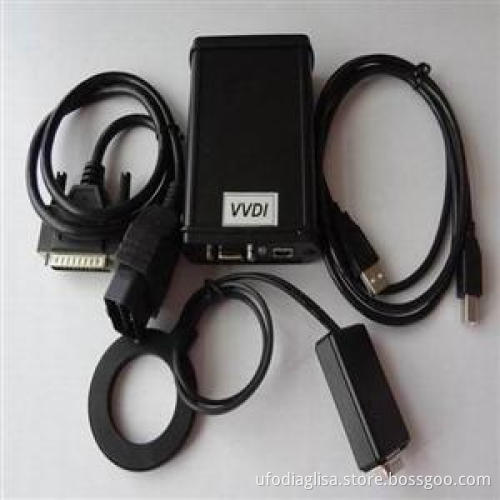

Vag commander 8.6

Product name:VAG COMMANDER 8.6,VAG VVDI Interface,VAG Vehicle Diagnostic Interface VVDI

Latest version:V8.6

Supported language:English

VAG Vehicle Diagnostic Interface VVDI Newest update:

1. Support NEC 24C32 change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.

2. Support GOLF5 MM7 (9S12) change mileage through obd2, generate dealer's keys, read and write EEPROM and backup flash data.

3. Add TA special chip pre-program. Directly pre-program ID48 to TA2, TA3, TA4, TA5 chips.

IMMO PLUS 2.0 software and VAG Commander Software can use VVDI hardware together, but previous VVDI customer need update hardware then can support IMMO Plus software.

Now IMMO PLUS has been updated to V4.0. Please download from our website to update.

Function:

1) Extracting security access codes (PIN) by OBDII

2) Programming keys by OBDII. Preparation of dealer's keys.

3) Mileage recalibration by OBDII

4) Clearing crash data DTCs by OBDII

5) Read/Program flash memory of engine control units by OBDII. Options for resetting the number of flashing attempts.

6) Exchange speed limit of MMI-TV system

1.Standard diagnostic functions:

1) Connect to the device using KWP2000 over TP2.0, KWP2000 over TP1.6, UDS over ISO transport protocol (CAN), KWP1281 or KWP2000 over K-Line

2) For all electronic control units reading identification data

3) For all electronic control units read error (DTCs)

4) For all electronic control units clear error (DTCs)

5) Scan all units

6) Broadcast requests

7) Measured values

8) Adaptation

2.Special functions:

1) Instrument CAN

(1) With this function you can establish diagnostic session with the Instrument cluster using KWP2000 over TP2.0

(2) You can read current odometer value

(3) You can change odometer value

(4) Added support for VDO Instrument Cluster 2006+

(5) Read/Program memory of instrument cluster immobilizer

(6) Reading security access code of the IMMOBILIZER

(7) Read/Write immobilizer related data

2) EZS - Kessy (Q7/A6/Allroad)

(1) With this function you can prepare dealer key/learn dealer key

(2) Read/Write EEprom from EZS - Kessy (Q7/A6/Allroad)

3) Instrument K-Line

(1) With this function you can establish diagnostic session with the Instrument cluster via K-Line (KWP1281 or KWP2000)

(2) You can Read/Change odometer value

(3) Read PIN code

(4) Read/Write EEprom

(5) Read ROM/Flash from the Instrument cluster

4) Engine Control Unit
