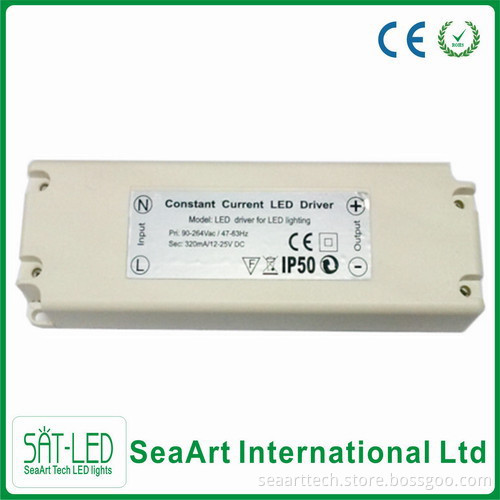

7w Constant Current LED Driver
- Min. Order:
- 10
- Min. Order:
- 10
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China,Guangdong |
|---|---|
| Supply Ability: | 100000pcs/month |
| Certificate: | CE&RoHS |
LED Driver
Specification
1.Input voltage:AC90~265V
2.Isolation constant current output:320mA--680mA,high precision constant current
3.High efficiency can reach 85%
4.Small size, adapt to ceiling light, downlight and other LED lamps,
5.Open protection, short circuit protection
6.Long life span
7.Can adopted LED light together pass safety regulations and electromagnetic compatibility standards
Extreme operating parameters
|
Parameters |
Extreme value |
|
Input Voltage |
AC90-265V |
|
Working temperature |
−25 to +65°C |
|
Storage temperature |
−40 to +85°C |
Typical output current performance parameters
|
Item |
Parameters |
Style |
||
|
SAT09C320V25M04 |
SAT09C450V12M04 |
SAT09C680V12M04 |
||
|
Input Feature |
Voltage |
90~265Vac |
||
|
Frenquency |
47~63HZ |
|||
|
Efficiency |
≥80% |
≥75% |
≥75% |
|
|
Current |
≤200mA |
≤200mA |
≤200mA |
|
|
Input Power |
≤10W |
≤6.5W |
≤10W |
|
|
Output Features
|
Output Voltage |
12-25V |
6-12V |
6-12V |
|
Output Current |
320mA/23VDC |
450mA/9.6VDC |
680mA/9.6VDC |
|
|
Output Power |
7W |
4.5W |
7W |
|
|
Current Precision |
5% |
5% |
5% |
|
|
Ripple |
500mV |
500mV |
500mV |
|
|
Protect Features |
Output Over Voltage |
25V |
12V |
12V |
|
Output Over Current |
— |
|||
|
Short Crcuit Power |
≤0.1W/100~250Vac |
|||
|
Environment |
Temperature Coefficient |
≤±300PPM/-10~65°C |
||
|
Safety Regulation |
Withstand Voltage |
INPUT/OUTPUT:≥3.75KVAC |
||
|
Insulation Rsistance |
INPUT/OUTPUT:≥100MΩ/500VDC |
|||
|
Electromagnetic Compatibility |
Electromagnetic Iterference |
EN55015 |
||
|
Other |
Size |
110*35*20 |
||
