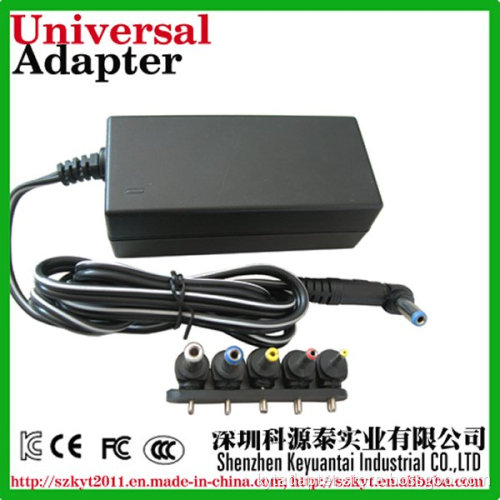

36W Universal Laptop Power Adaptor
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
Product Description
Product Description
Specification for 36W Universal Laptop Power Adaptor
| 1, Input: 100 to 240V AC, 50/60Hz |
| 2, Output power: 36W series |
| 3, Output voltage: 5 to 24V DC |
| 4, Output current: 10 to 6,000mA |
| 5, Overload protection |
| 6, Output over voltage protection |
| 7, Short circuit protection |
| 8, High efficiency Mini 82 % |
| 9, DC socket (optional) |
| 10, CEC power supply standard |
| 11, CE approved |
| 12, No Load Power Consumption ≤ 0.3 W at Rated Voltage |
| 13, Ripple And Noise: Output voltage 1% |
| 14, High-Voltage test : Primary to secondary: 3 kV 5 mA 60 S |
| 15, Leakage Current : 0.5 mA (max) at input 240Vac |
| 16, Operating Temperature Range 0--40°C |
| 17, Storage Temperature Range: -20 --- 85°C |
| 18, High Humidity Operation :+ 40 °C and 90 ~ 95% Humidity |
| 19, Dimension :110.0mm*45.0mm*31.5mm |
| 20, Net weight: About 185 gram per unit. |
| 21, Color : Black / White |
| 22, The power adapter should have 50,000 hours according to MTBF. |
| 23, Insulation Resistance:Primary to Secondary : 50 Meg. Ohms min. 500VDC |
| 24, Delivery 15 Working days in punctual |
| Payment Details: |
| Payment Terms: |
| T/T or L/C |
| Minimum Order: |
| 1,000 to 1,999 Pieces |
Real Factory support
1,High quality products
2, Reasonable price
3,Strict quality control system
4,Excellent R/D and sales team
5,Diversified options
6,12 months warranty
7,International certificates
We supply: AC/DC adapter, desk adapter, wall mount adapter, LED adapter(LED driver), security adapter, USB car charger, wired car charger, battery charger, power supply, switching power supply.
