Infrared RGB LED Flexible Controller44-Key
- Min. Order:
- 100
- Min. Order:
- 100
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen |
|---|---|
| Supply Ability: | 10000pcs/month |
| Certificate: | CE,ROHS,FCC |
Specifications

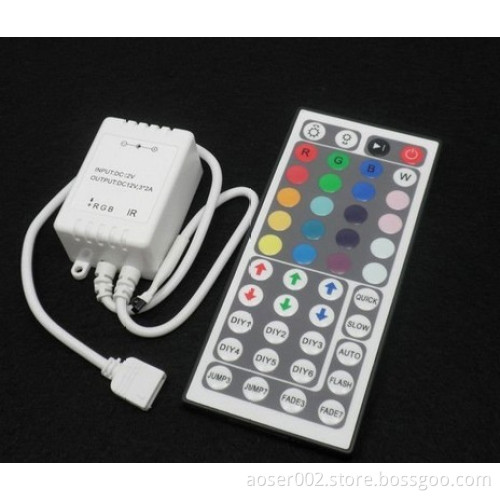

44 key LED RGB Controller
1.Voltage: 12V/24V
2.Output: 3 channels <2A each
3.Working temperature: -20~+60
4.Common anode
LED RGB Controller
Specifications:
Working temperature: -20~+60°C
Supply voltage: DC5V/ 12V/ 24V optional (specify the required voltage on orders)
Output: 3 channels
Connection mode: common anode
External dimension: L63 x W35 x H22 mm
Controller dimension: L125 x W56 x H7mm
Net weight: 90g
Gross weight: 95g
Static power consumption: <1W
Output current: <2A (each channel)
Output power: 5V:<30W, 12V:<72W, 24V:<144W
Summarization:
24-key infrared controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as low price, easy connection and simplicity to use. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through infrared remote control.
