Intelligent GSM wireless home alarm with LCD and display

Description

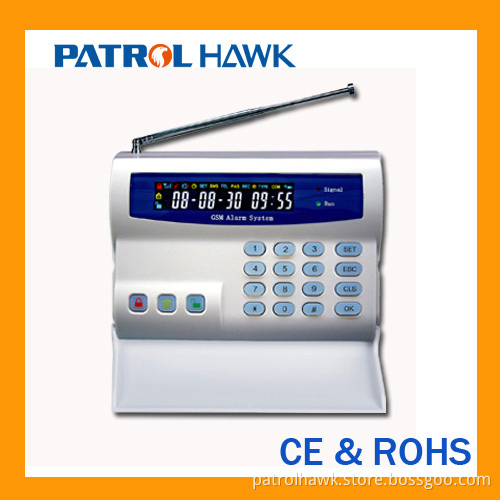

Name: GSM ALARM SYSTEM WITH COLOR LCD
Model: G20E & G20EA

GSM alarm systems are popular in the world now. The GSM alarm systems could extensive apply to security installation, data monitor and long-range supervision systems in same areas such as family, office, villa, government, police station etc.

Main Function

GSM quad band module, support 850/900/1800/1900mhz.
With color LCD show screen and keyboard on the host
10 wireless guarding zones

Send SMS to 3 mobile phones automatically while alarming
Call 3 phones automatically while alarming and drive#160; Wiretap
Set the time of arm/disarm/partial arm
Arm/disarm/partial arm by the keyboard on the host, remote controller or SMS.
Set the host by keyboard on the host or SMS
Modify the name of 8 wireless guarding zones and inquire the status of host by SMS demand
Define the 8 wireless guarding zones as partial arm/arm by keyboard on the host
With standby rechargeable battery
Connect with the alarm center through GSM network

Specification

* Zone: 10 Wireless guarding zones;
* Wireless frequency:315M/433M
* GSM frequency: 850/900/1800/1900MHz
* Consumption: 1W(while sending message)
* External power failure alarm: Start-time: Less than 1s
* Alarm response time: Less than 8s (GSM in normality)
* The volume of siren: More than 110dB
* Power requirements: AC 220V 50Hz (optional)
  Working power consumption: Less than 3W
  Standby battery: DC 8.4V
  Standby battery working hours: More than 15 Hours
* Working conditions
  Operating temperature: -20Degree ~ 60degree
  Humidity: 20% to 95%
* Weight of alarm host: Net weight: 0.5Kg; Gross weight:0.75Kg
* Dimension of alarm host:160mm(L)×113mm(W)×38mm(H)

Packaging

1 x Alarm Host
1 x Wireless PIR motion sensor
1 x Magnetic door/window contact
2 x Remote controllers
1 x Siren
1 x AC Adapter
1x Manual
