HONGDU TESTING EQUIPMENT CO.,LTD.

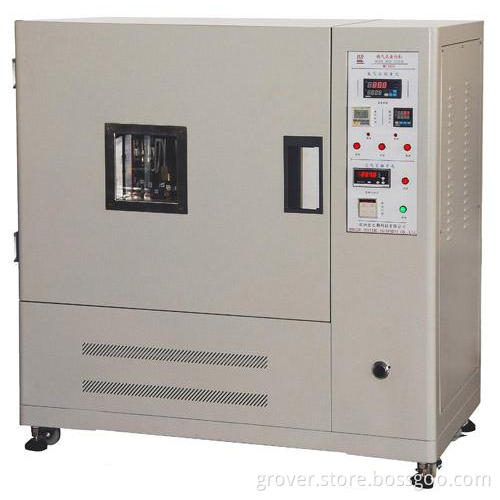

HD-102D Aging Oven
Product explanation:
This machine is manufactured and designed to meet the requirements of relevant standards,such as GB/T2951, UL1581, ASTM-D5423 etc.It is used to test the ability of material to withstand thermo-mechanical stress,this material can be used in Electrical Appliances, Electrical wire accessories, luminaires, motors, connectors, etc.
Features:
* It is a full-draft circulating-air oven.
* The intelligent PID temperature control system allow precise operation.
* Providing horizontal airflow for even exposure to all samples.
* Two shelves could be removed free,and the shelve is circumgyrated at 10r/m.
* Using the watt-time-meter can measure the air exchange capacity.And the air exchange capacity can be adjusted by a simple system.
* The big window in the door makes your view more convenient.
* Four-tiered safety system for overheat conditions.
* Stainless steel interior.
* OPTION:Heat Impact Device.
Technical parameter:
|
Power source
|
AC 220v 50Hz Max 30A
|
|
Temperature range
|
Ambient to 3000C
|
|
Temperature precision
|
+-10C
|
|
Heat power
|
5KW
|
|
Heat time
|
less than 1h (from ambient to 3000C)
|
|
Maximum fresh-air exchange capacity
|
200 times/h
|
|
Test period
|
0.01s to 999.9hours
|
|
Measure range of watt-time-meter
|
1 to 9999.9Wh
|
|
Interior capacity
|
450mm W,420mm D,500mm H
|
|
Exterior dimensions
|
1150mm W, 680mm D, 1100mm H
|
Standards:
GB/T2951
UL1581
ASTM-D5423
Test Objects:
Electrical Appliances
Electrical wire accessories
Luminaires
Motors
Connectors
