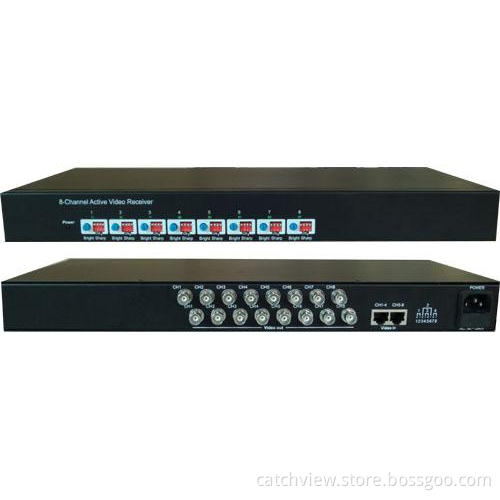

CCTV 8 Channel Active Video Balun Receiver (CV-VB811R)

1. High-Density 19", 1U Rack Mount
2. Full-motion CCTV video at distances up to 1500m when used with any passive transceiver
3. Up to 2400m with any active UTP video transmitter
4. 60 dB crosstalk and noise immunity
5. Brightness & sharpness controls
6. Built-in transient suppression protection
7. Frequency response: DC-8MHZ
8. CMRR: 60 dB
9. Power: AC90-260V
10. Connectors: Female BNC and RJ45
11. Impedance: BNC: 75 ohms, Terminal: 100 ohms
12. Transient Immunity: 6000V 1.2µ S x 50µ S
13. Dimension: 430mm*169mm*44mm(excluding connectors)
14. Weight: 1963g
