LCD display metal bumper car reverse system
- Min. Order:
- 500
- Min. Order:
- 500
- Delivery Time:
- 7 Days
Your message must be between 20 to 2000 characters
Contact NowPlace of Origin: | China |
---|---|
Supply Ability: | 80000pcs/month |
Certificate: | CE,FCC,Rohs |
car reverse system

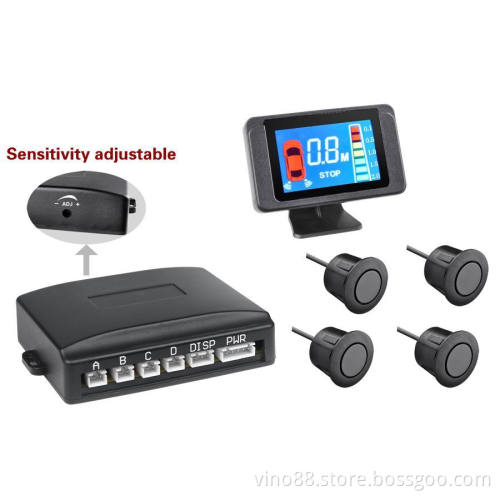

LCD display metal bumper car reverse system
Features:
1. LCD display metal bumper car reverse system2. New designed products, used for EU new cars
3.LCD display with car model on the screen
4, adjustable sensitivity
5, silica gel sensor cover
6.4 sensors
7.CE,FCC,ROHS
Details:
* Compatible with Eu New cars with metal bumper.
* Automatically detecting of obstacles to the rear of the vehicle while reversing.
* 4-car parking system ensures full coverage of scanning zone; without any blind point.
* Numeric display of the distances.
* Has car model on the screen display
* Sensor Detection Range: 0.3m - 2.0 m ; Display Range: 0.3~2.0m
* Distance Display in meter
* In-bumper type sensors giving the look of factory installed system
* Perfect for backing up, street parking, parallel parking, garage parking, and parking in tight spot . * Step-up beeping for telltale of the distance, beeping fast when close to obstacle and contimuously if within 0.3 meters from the obstacle
* Powered by tapping into the wires of ignition switch and back up light
* High precision, accurate and reliable.
* Work well between -40 ~+85
* 3 years warranty
Technical Parameters
Rated Voltage |
12V |
Working Voltage |
10---16V |
Power consumption |
4W |
Operating current |
IDDQ 30MA / PAL power alarm 200MA |
Working temperature |
-40°C---85°C |
Speaker |
60dB |
Detect Rate |
40kHz |
Detect Distance |
0.3---2.0M |
Alarm type
Alarm Level |
Distance between fender-guard and obstacles
|
Digital Display |
Sound |
Range |
6 |
2M<S |
- - |
--- |
|
5 |
1.6M≤S≤2M |
Show the actual distance |
--- |
Safe |
4 |
1M≤S≤1.5M |
Show the actual distance |
BI---BI---BI |
Safe |
3 |
0.5≤S≤0.9M |
Show the actual distance |
BI—BI--BI |
Warning |
2 |
0.3≤S≤0.4M |
Show the actual distance |
BI-BI-BI |
Dangerous |
1 |
S≤0.2M |
0.0 |
BI----- |
Dangerous |
