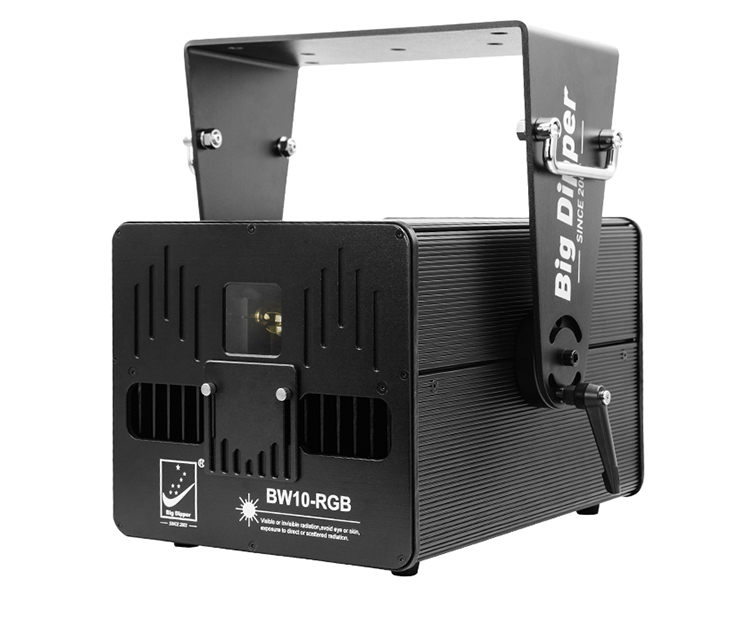

Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
  • Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show
Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show

Big Dipper 10w animation stage lighting equipment waterproof Disco laser light show

  • $793.00
    4-49 Piece/Pieces
  • $783.00
    50-99 Piece/Pieces
  • $763.00
    ≥100 Piece/Pieces
Transportation:
Ocean, Land, Air, Express
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C,T/T,D/P,D/A,Paypal
Incoterm: FOB,EXW,CFR,CIF,FCA
HS Code: 9405499000
Transportation: Ocean,Land,Air,Express
Product Description
Product Description













Product parameters

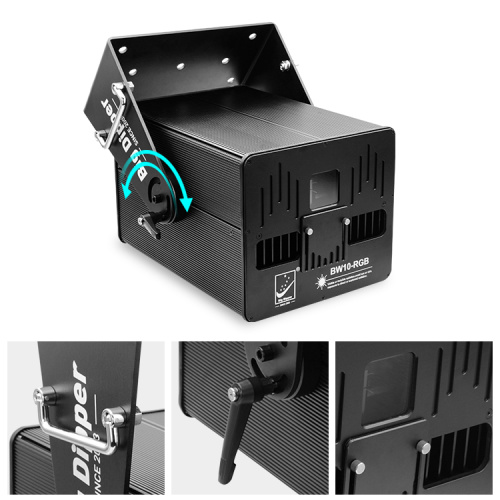

Model : BW10-RGB

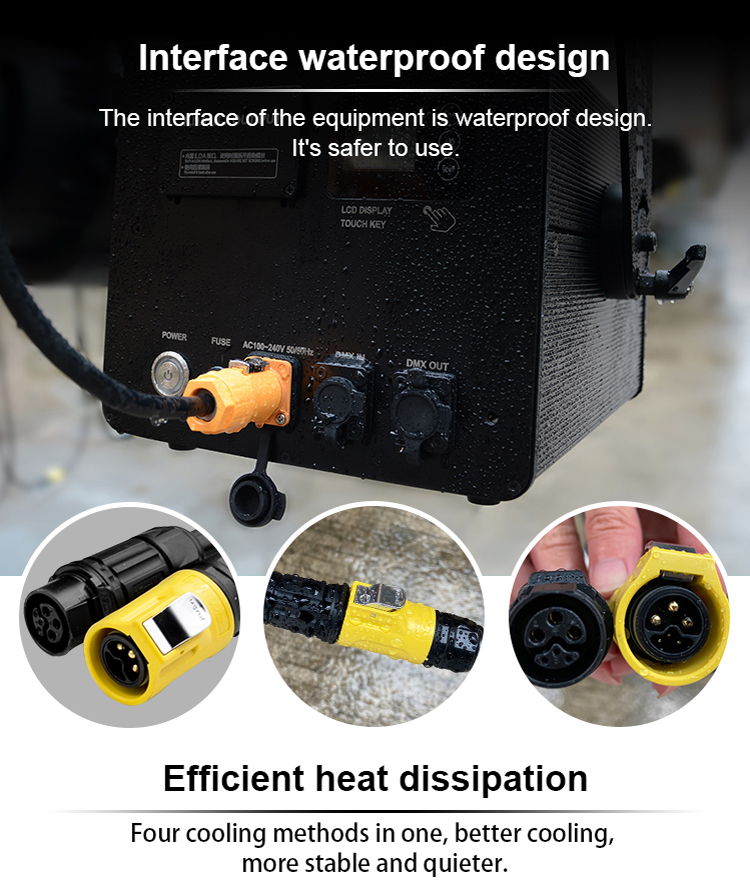

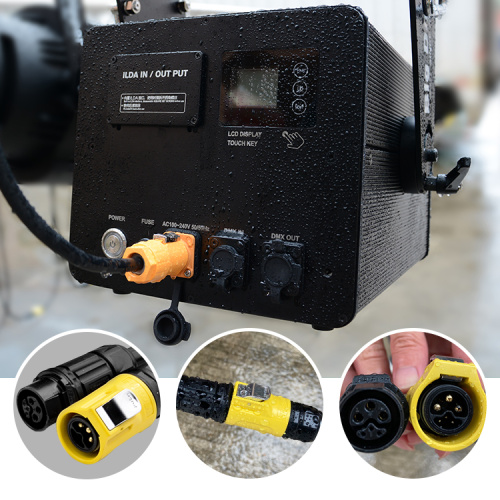

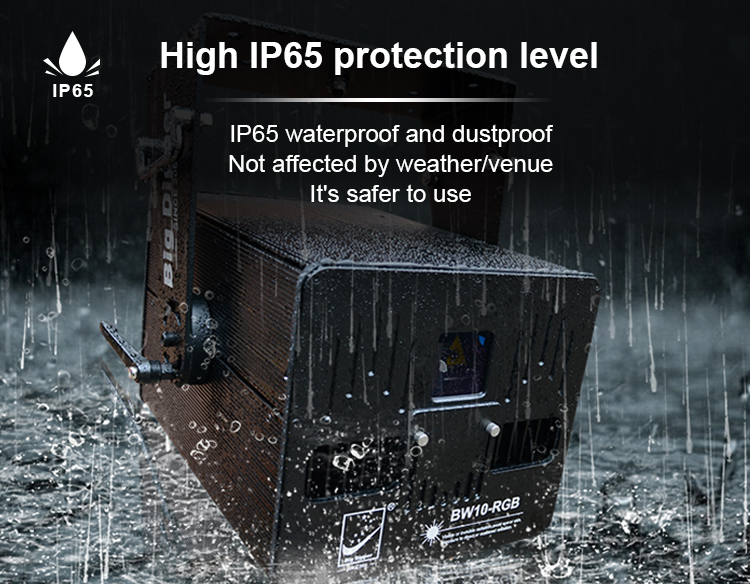

 Protection Grade : IP65

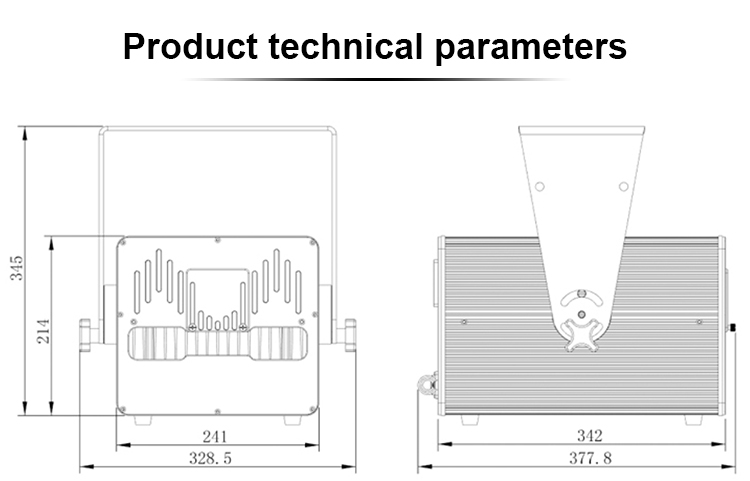

Size : 241*214*378mm (Excluding the handle)
 Laser Color : Red / Green / Blue

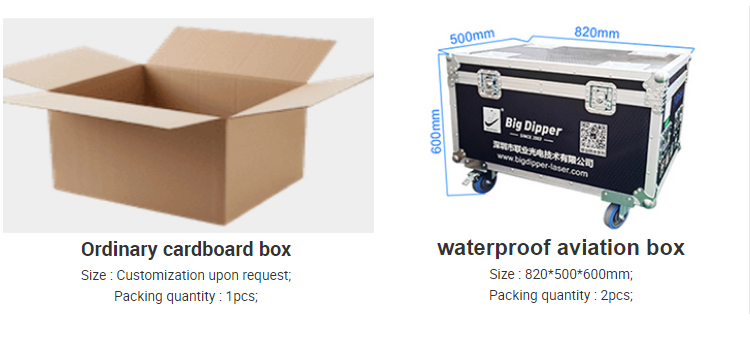

Packing : 1pcs/2pcs

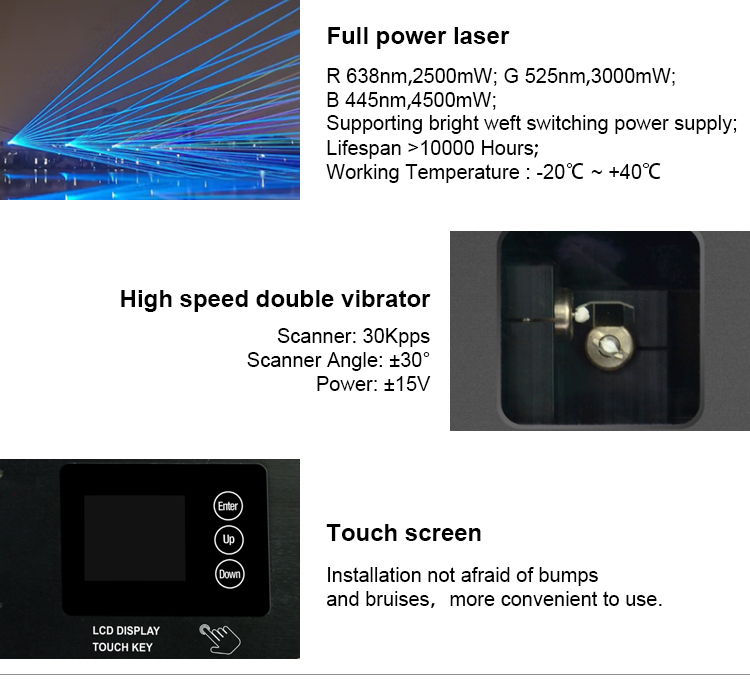

 Scanner : 30 Kpps
N.W : About 11.5kg
 Scanner Angle : ±30° Maximum
Power Supply : AC100-240V 50/60Hz
 Spot Divergence Angle : ＜2.5 Mrad
Rated Power : 135W
 Work Temperature : -20℃~+40℃
Laser Modulation : 0~5V , TTL
 Output Laser Spot : 5.5*5.5mm
Laswe Power : R638nm 2.5W ; G520nm 3W ; B450nm 4.5W
 Lifespan : >10000 Hours

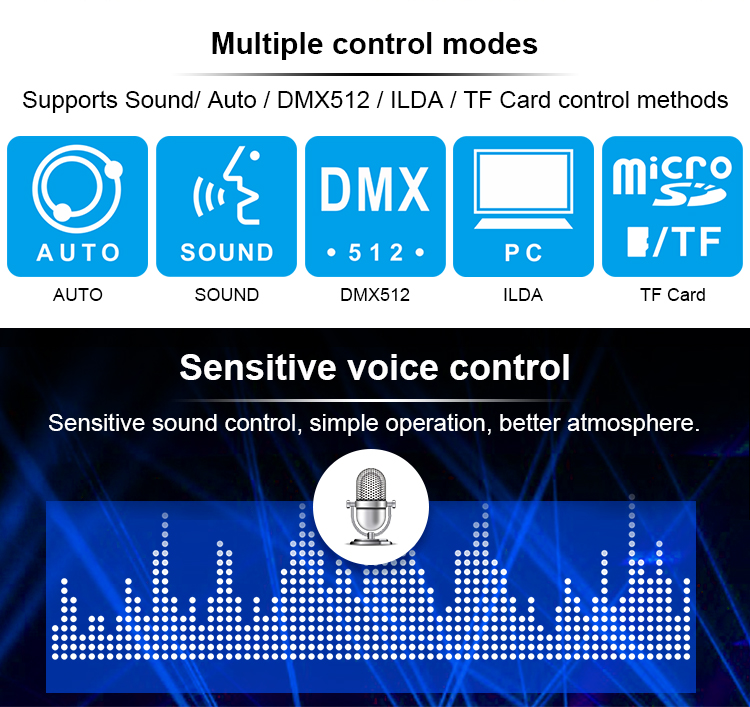

Control Model : Sound / Auto / DMX512 / ILDA
 Channel : 10CH/34CH

High and low temperature power testing
Laser parameters
 Laser power (W)
 Wave length (nm)
Temperature
 -25℃
 +60℃
 -25℃
 +60℃
R
 2.13
 2.13
 638
 638
G
 2.53
 2.53
 520
 520
B
 4.1
 4.1
 450
 450
RGB
 8.3
 8.3
 /
 /
Power supply parameters
Input voltage
 Input current
 Output current
 Power factor
180V / 60Hz
 1.096
 131
 0.664
220V / 50Hz
 0.943
 132
 0.636
230V / 50Hz
 0.909
 131.4
 0.628
240V / 50Hz
 0.878
 131
 0.621
