Big Dipper 10W RGB Full Color Animation laser Lighting Projector With 30K PPS Scanner ensure smooth and beautiful graphics

Big Dipper 10W RGB Full Color Animation laser Lighting Projector With 30K PPS Scanner ensure smooth and beautiful graphics

$1500.00

2-9 Piece/Pieces
$1450.00

≥10 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Min. Order:: 1 Piece/Pieces

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Product Description

10W RGB Full Color Animation PC Controlled Laser Lighting

Advantage

1. In terms of technological innovation, German laser product experts will guide the entire product development and optimization process; 2. Quality assurance: It has been mass-produced and passed the European market verification. Within 3 months, a single OEM customer has received 3 continuous return orders, and has sold 300 units in total; 3. Product features: 1) The size is one-half of the common models on the market (three-quarters the size of A4 paper), and the net weight of the machine is 5.7Kgs, which is compact and convenient; 2) The laser tube uses imported LD, with a total power of 11.8W; 3) The galvanometer uses imported bearings, the scanning angle is ±30°, the speed is 30KPPS, and the accuracy reaches 30,000 points per second; 4) Adopt full dust-proof technology, dust-proof grade IP52, to avoid light decay caused by dust and smoke to the greatest extent; 5) The laser driver adopts analog modulation, our company's modulation frequency is 120KHZ, the common model on the market is 30KHZ, and the smoothness of the color gradient is better; 6) The product structure is divided into upper and lower layers, the lower layer adopts convection settings to ensure stable heat dissipation performance, and the laser tube does not become hot when working, maximizes the service life of the light combination tube and guarantees the stability of the whole machine quality; 7) The operating temperature is -20 to 40°C; 8) The light exit hole adopts double-layer coating, with a light transmittance of 98%, which can effectively reduce reflection and avoid light power attenuation. At the same time, it is equipped with a light barrier that can be flexibly adjusted; 9) International safety standards, with triple protection of safety lock, switch button, and DMX connector; 10) The menu interface is directly displayed with pictures, which is better than the traditional small LCD screen, and the operation experience is better; 11) Equipped with R, G, B brightness adjustment buttons, which can quickly realize the functions of color adjustment, dimming, and light closure; 12) Equipped with 19V 6.32A external Huntkey adapter, which is safe and stable, reduces the heat dissipation of the whole machine, and reduces the volume of the whole machine; 13) Equipped with dot protection device to improve product safety performance; 14) After continuous optimization and improvement, the graphics ratio, tailing, and color mixing problems that are common in the market have been solved; 15) The product production standard achieves 5% single-point protection, 6% no flicker, no shaking, 12-14% light emission (50% light emission for common models on the market); 16) The Heguang standard is 10 meters; 17) There are convenient dimming windows around the top, side and left of the light outlet, which is convenient to adjust the light combining effect flexibly in later use. Our technical R&D department is still researching and developing upgraded and optimized versions for product performance, structure, color ratio and other aspects. We welcome your valuable guidance.

Parameter

Model	10W RGB
Laser Diodes	Red 638nm 2W，Green 520nm 2W，Blue 450nm 6W
Spot Divergence angle	Red<1.5mrad，Green<1.5mrad，Blue<1.5mrad
Dimming	0~5V，TTL: Analog dimming >100KHz
Scanner	30Kpps ±30°(maximum)
Control mode	Sound/Auto/ DMX/ Mater slave/ LDA/ XY mirroring maually/
Working Temperature	-10°C~40°C
Rated Power	120W
Power Adapter	External AC100~240V 50/60Hz DC19V 6.3A

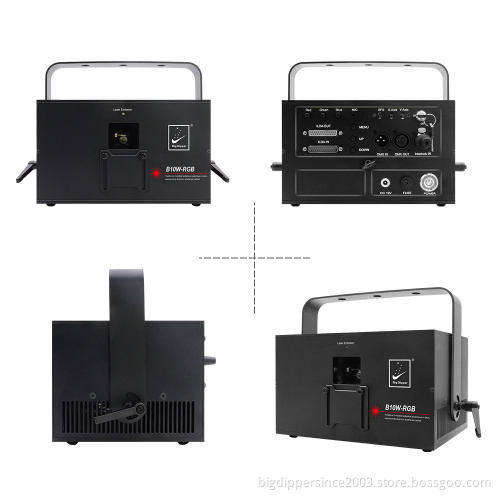

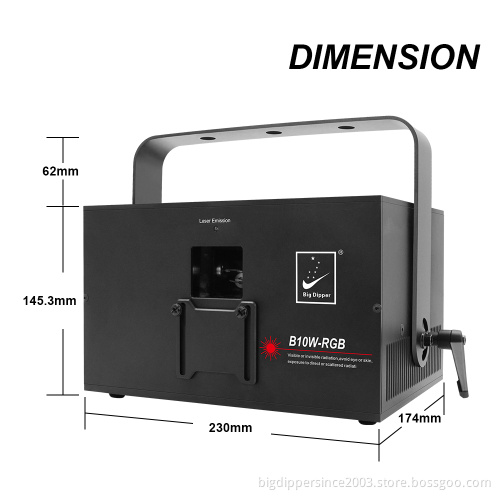

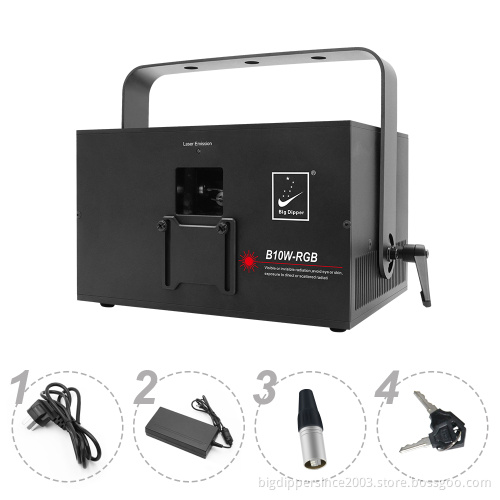

Detailed Images

FAQ

Q1. Are you factory?
A1. Yes, we are factory, welcome to visit us in ShenzhenCity, Guangdong province.

Q2. Do the lights have Minimum Order Quantity asked?
A3. In our standard package, we don't have MOQ asked, any quantities are acceptable.

Q3. Do you provide the Warranty ? How about the after sales service ?
A3.Big Dipper always specialize in stage lighting products & Solutions with best price, and we believe in our products, 12 months guarantee and provide friendly, easy-to-reach support.

Q4. Do Ingleby has IP65 outdoor laser light?
Yes, we have IP65 outdoor laser light.

Q5. Except the outdoor laser light, what's the IP rating of your products?
A5.Most of our products are IP33.

Packaging&shipping

Package
- One piece into one colorful box or inner carton.

- 4,12 or 24 pieces into one outer carton. (Base on product)
Shipping
- Air shipping, China post (E-Packet), Express (DHL, UPS, FEDEX, EMS)

- Sea shipping, from Shenzhen port or Guangzhou port to any other's destination port.
Trade terms
1. Payment, 30% T/T as deposit before production , 70% balance before shipment .

2. Price Term, EXW Ingleby factory, FOB Shenzhen, CIF your destination port.
3. Leading Time, within 3- 10 working days after payment confirmed

Our Services

Sample Service:
-Small quantities of samples we can accept.
-Sample delivery time is around 1-5 days after confirmation

After-sale Service:
- We offer quick after-sale service
- Any quality issue, once confirmed is our responsibility, we will compensate our customer

Big Dipper led stage lights advantage:
- With more than 15 years development
- Self-produce laser diodes in dust-free workshop
- Self-produce light's housing,step motors,software ect.
- have strong R&D team and well equipped factory,strict quality control system
- Comprehensive distributor management system.
