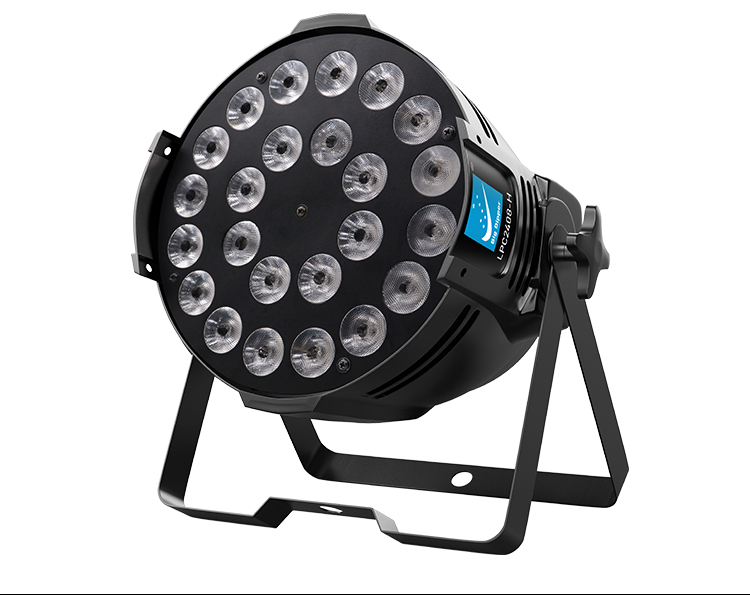

Big Dipper 24PCS 8W Par Full Color LED Wash Wedding Bar KTV Stage Lighting
-
$39.004-199 Piece/Pieces
-
$38.00200-499 Piece/Pieces
-
$36.00≥500 Piece/Pieces
Your message must be between 20 to 2000 characters
Contact NowPayment Type: | L/C,T/T,D/P,D/A,Paypal |
---|---|
Incoterm: | FOB,CIF,CFR,EXW,FAS,FCA |
HS Code: | 9405499000 |
Model :LPC2408-H |
24*8W RGBW 4-in-1 full color Par Light |
![]() |
High brightness light bead ------------------------- |
|
![]() |
24*8W RGBW 4-in-1 full color Par Light -------------------
Power supply: AC100-240V 50-60Hz |
3m illumination
2380 lux
--------------
|
Beam Angle 45°
Luminous flux ≥5100 lm
--------------
|
0~100%
Electronic linear Dimmer
--------------
|

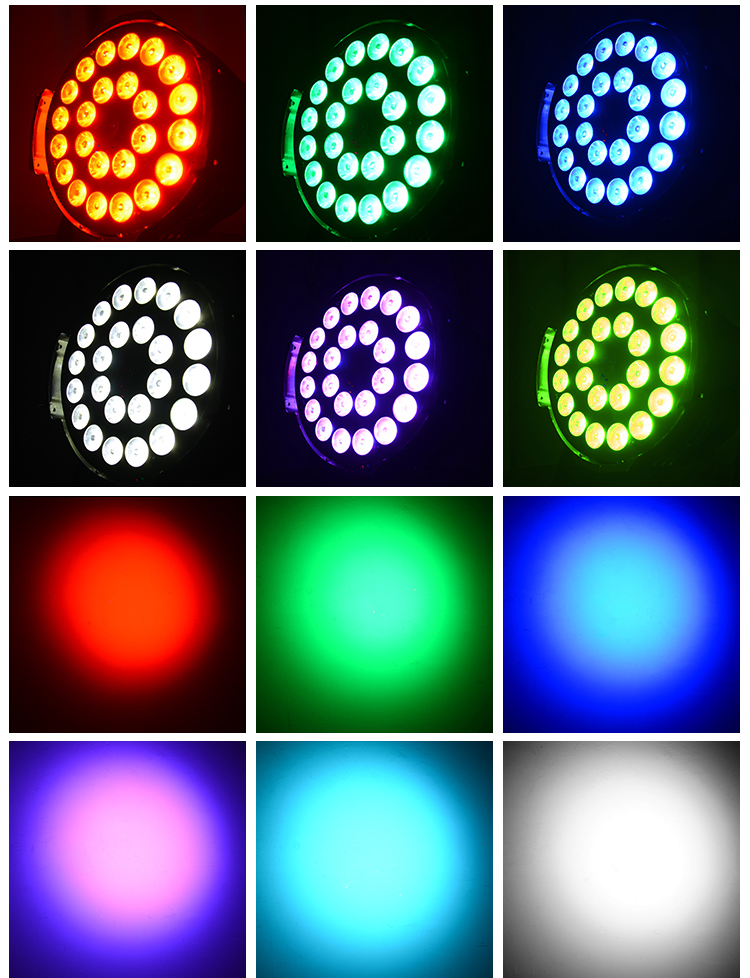

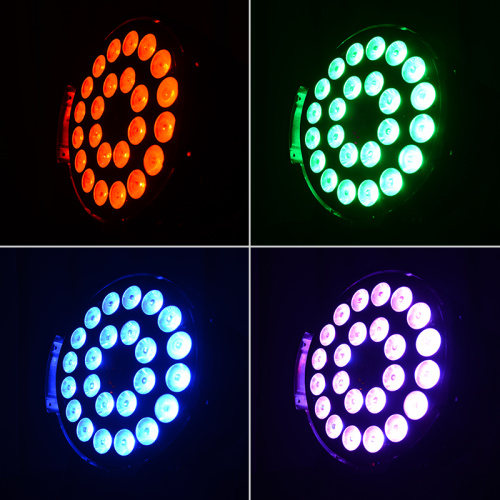

Lighting effects |
---------------------- Hight brightness, strong stability,
high Light conversion efficiency.good mixture color
|
![]() |
![]() |
![]() |
![]() |
![]() |

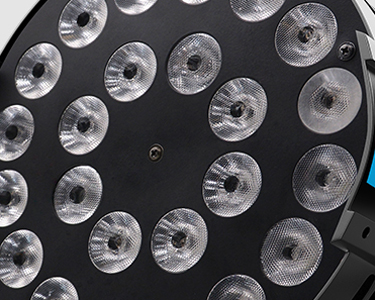

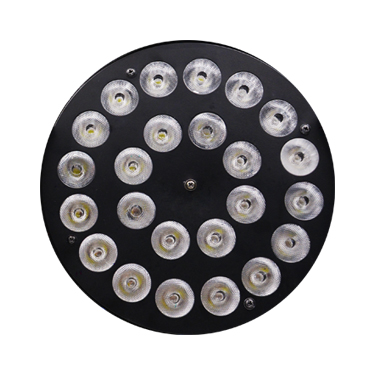

High brightness light bead --------------------
Imported Cree lamp beads, |

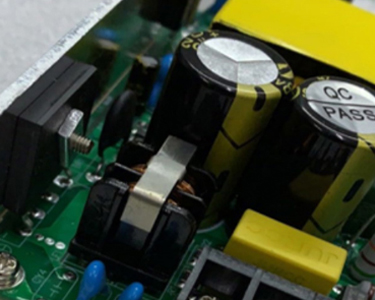

Good power module --------------------
Provide?electronic stable,
save electronic, good safety.
|
![]() |
![]() |

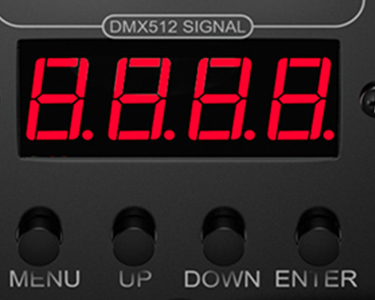

Simple operation --------------------
Simplified electronic display screen, |

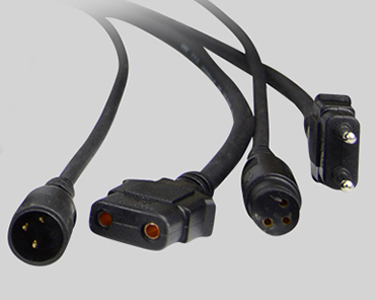

All copper lamp power cord --------------------
It adopts pure copper plug,
excellent conductivity, stable terminal, stable output, anti-freezing and durable, and maintain the power output of the lamp. |
![]() |
![]() |
Product parameters |
|

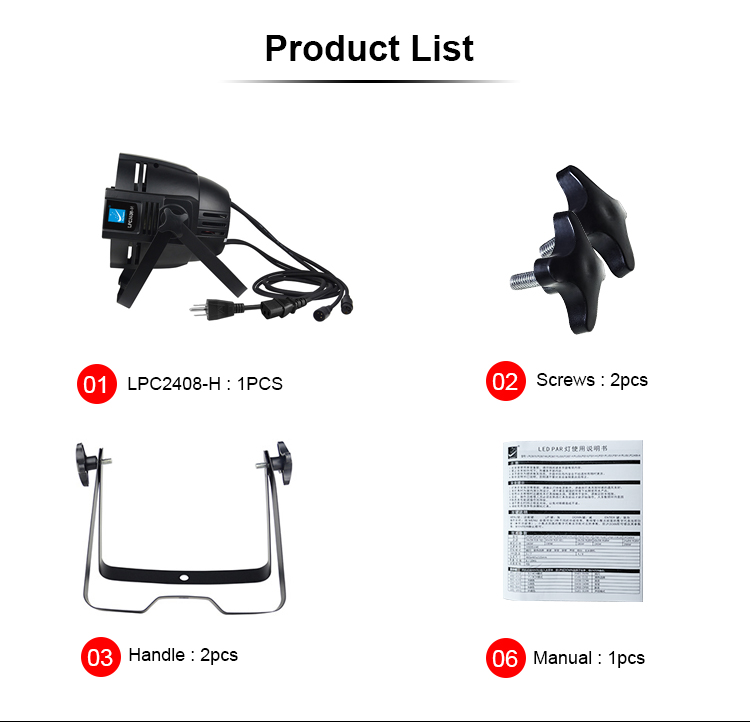

Model: LPC2408-H |
Rated power: 200W |
Mode: By manual/Auto/Sound/DMX/Master-slave |
Power supply: AC 100~240V 50/60Hz |
Light Source: 24*8W RGBW 4 in 1 |
Channel: 4/8 |
Luminous Flux: Color Mixing ≥ 5100 lm |
Dimmer: 0-100% Electronic Linear Dimmer |

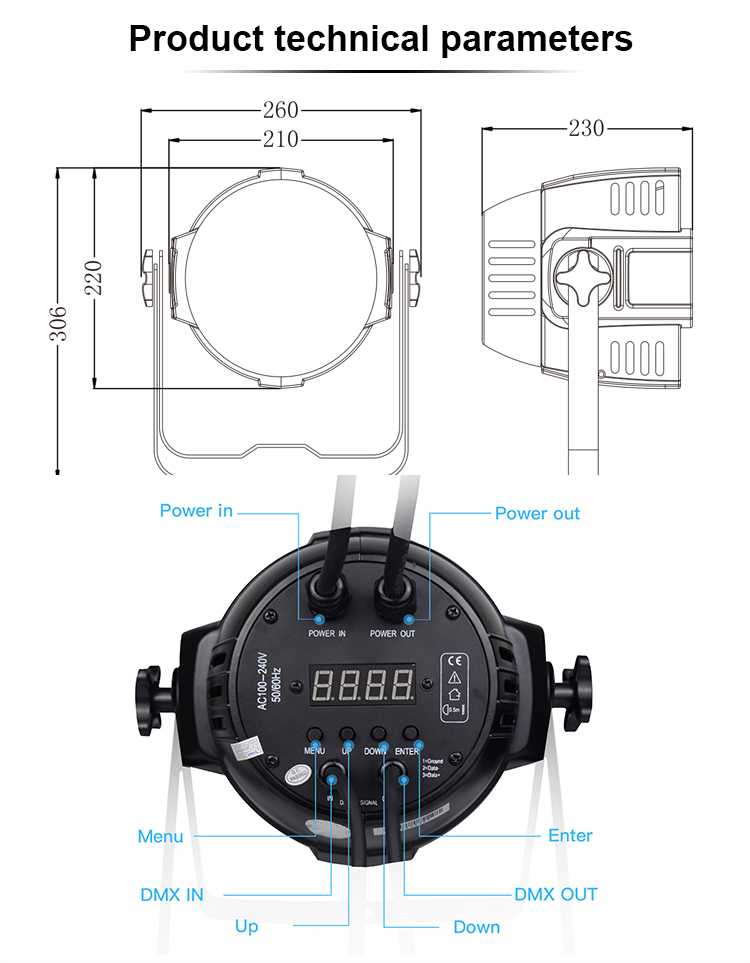

Product size: 230*240*254mm(Excluding the handle) |

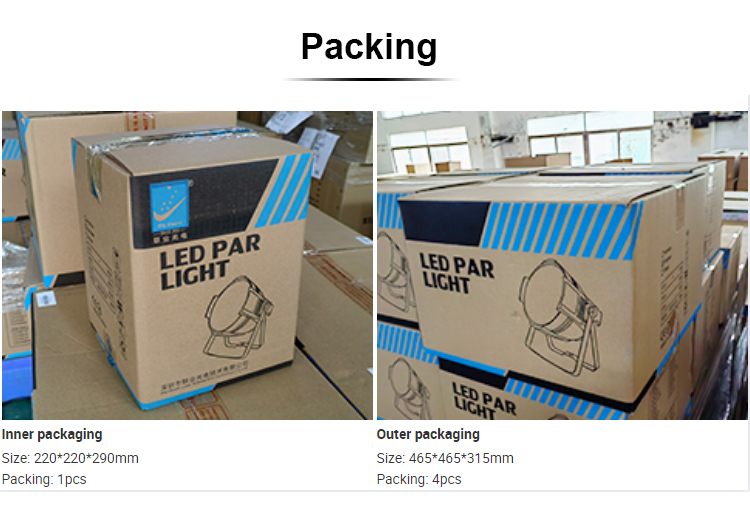

Carton Size: 465*465*315mm |
N.W. / G.W.: 8kg/10.5kg |
|
4 Channel table |
||
Channel |
Value |
Function |
CH1 |
0 |
Red off |
1~255 |
From dark to bright |
|
CH2 |
0 |
Green off |
1~255 |
From dark to bright |
|
CH3 |
0 |
Blue off |
1~255 |
From dark to bright |
|
CH4 |
0 |
White off |
1~255 |
From dark to bright |
8 Channel table |
||
Channel |
Value |
Function |
CH1 |
0~255 |
Dimming |
CH2 |
0 |
Red off |
1~255 |
From dark to bright |
|
CH3 |
0 |
Green off |
1~255 |
From dark to bright |
|
CH4 |
0 |
Blue off |
1~255 |
From dark to bright |
|
CH5 |
0 |
White off |
1~255 |
From dark to bright |
|
CH6 |
0 |
Flash from slow to fast |
1~255 |
DMX |
|
CH7 |
0~50 |
Color selection build-in |
51~100 |
Color Jumping build-in |
|
101~150 |
Color fade build-in |
|
151~200 |
Color pulse build-in |
|
201~255 |
Sound |
|
CH8 |
0~255 |
Speed (color,voice) |
Power supply parameters |
|||
Input voltage |
Input current |
Input power |
Power factor |
100V / 60Hz |
2.733 | 205.3 | 0.755 |
110V / 60Hz |
2.483 | 203.3 | 0.745 |
120V / 60Hz |
2.283 | 201.6 | 0.736 |
220V / 50Hz |
2.388 | 197.5 | 0.649 |
230V / 50Hz |
1.328 | 196.1 | 0.643 |
240V / 50Hz |
1.291 | 198.3 | 0.639 |
Lamp high&low temperature testing |
||
/ |
Ambient temperature |
|
-25℃ |
+40℃ |
|
Whole machine power |
199.5 W |
199.5W |
Light flux |
5083 lm |
5083 lm |
Color temperature |
23950 K |
23950 K |
Color rendering index |
89.5 Ra |
89.5 Ra |
Waves length |
483.8 nm |
483.8 nm |
![]() |
![]() |
