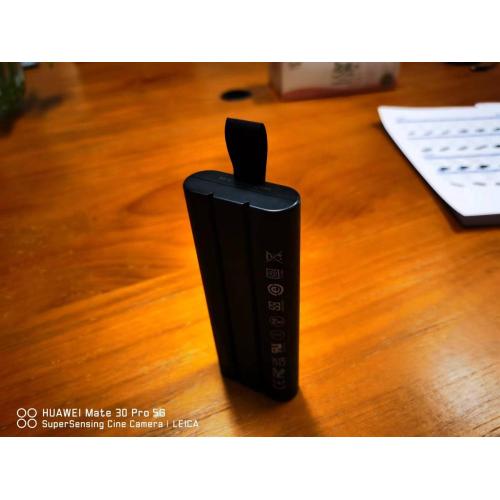

2S1P 7.2V 3450mah Standard intelligent lithium battery pack
-
$120.00≥1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Air, Express, Ocean, Land
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,T/T,Paypal,Others |
|---|---|
| Incoterm: | FOB |
| Transportation: | Air,Express,Ocean,Land |
Standard intelligent lithium battery pack 7.2V/10350mAh/71.28Wh.
Features:
Compliance with regulatory requirements in many regions of the world.
"Standard SMBus v1.1 interface.
"Integrated LED Power status (SOC) indicator.
Panasonic cells with the highest energy density and stability on the market.
The charging optimization rules of JEITA are satisfied.
Comprehensive safety protection functions, such as overcharge, overdischarge, overcurrent, overtemperature, short circuit, etc.
It has the equalization function to effectively improve the battery life.
Accurate electricity calculation of TI.
Application:
Suitable for portable electronic devices, industrial and medical fields, etc.
Overview:
Factory capacity 20% to 30%.
Certified CE/FCC/IEC62133/UN38.3 for compliance.
Operating temperature 0 °C ~ 50 °C (charging).
-20 °C ~ 60 °C (discharge).
Storage temperature-20 °C ~ 50 °C (maximum).
-20 °C ~ 25 °C (recommended).
Electrical properties:
Rated voltage 7.2V.
Rated capacity 9900mAh.
Nominal capacity 10350mAh.
Internal resistance < 200m Ω @ 1kHz at 25 ℃.
Maximum charging current 7.2A.
Maximum charging voltage 8.4V.
Maximum discharge current 8.0A.
Cycle life:
300 cycles ≥ 80% rated capacity.
(test standard: CC/CV charging: 5A hand 8.4 V per CC discharge: 2A to 5V@25 ℃).
Dimensions and specifications:
Long 150.0mm ±0.3mm.
Wide 58.5mm ±0.3mm.
Thick 22.0mm ±0.3mm.
Weight 350g ±10g
