LiFePO4/Lithium 12V 36ah SLA Replacement Battery Pack
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C,T/T |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express |
Product Description
Product Description
Basic Info.
Model NO.
12-36
Installation
Packaged
Rechargeable
Chargeable
Keywords
SLA Replacement Battery
Capacity
36ah
Voltage
12.8V
Transport Package
Carton
Specification
lifepo4
Trademark
LR
Origin
China
Production Capacity
600000 PCS/Momth
Product Description

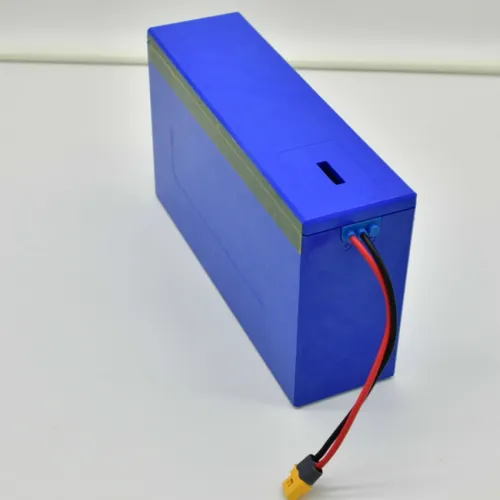

Lifepo4/lithium 12V 36ah SLA replacement battery pack
Feature:
1, High energy density
2, High working voltage for single battery cells
3, Pollution-free
4, Long cycle life
5, No memory effect
6, Capacity, resistance, Voltage, platform time consistency is good
7, With short-circuit production function, safe and reliable
8, Factory price& High quality
9, Good consistency, low self discharge
10, Light weight, small size
Battery group specifications
|
Electrical
Characteristics
|
Nominal Voltage
|
12V
|
|
|
Nominal Capacity
|
36Ah0.2C
|
||
|
Energy
|
460Wh
|
||
|
Internal Resistance
|
60 ≤mO
|
||
|
Months Self Discharge
|
≤3.5% per month at 25ºC | ||
|
Cycle Life4
|
3000 Cycles 0.2C Charge/Discharge at 1 00%DOD,End of Life 70% Capacity.
|
||
|
PACK |
Charge Voltage
|
14.6±0.2V
|
|
|
Charger Current
|
20A
|
||
|
Max.Charge Current
|
50A
|
||
|
Discharge Current
|
20A
|
||
|
Max. Continuous Current
|
50A
|
||
|
Max.Pulse Current
|
100A(<3S)
|
||
|
Disxcharge Cut-off Voltage
|
40.-41.0V
|
||
|
Charge Temperature
|
0ºC to 45ºC(32ºF to 113ºF) 60±25% Relative Humidity
|
||
|
Disxcharge Temperature
|
-20ºC to 60ºC(-4ºF to 140ºF) 60±25% Relative Humidity
|
||
|
Storage Temperature
|
0ºC to 45ºC(32ºF to 113ºF) 60±25% Relative Humidity
|
||
|
Water Dust Resistance
|
IP55
|
||
|
Cell & Method
|
IFR32700 N60, 15S9P
|
||
|
Plastic Case
|
ABS
|
||
|
Dimension(L*W*H*TH)
|
197*165*169mm
|
||
|
Weight
|
4.5kg | ||
|
Terminal
|
M8
|
||
|
BMS |
Single cell over-charge cut-off voltage |
3.7V
|
|
|
over-charge release voltage |
3.6V
|
||
|
Single cell under-discharge cut-off voltage |
2.0V
|
||
|
Discharge release voltage |
2.5V
|
||
|
Over-discharge cut-off current |
Yes |
||
|
Over-discharge cut-off current delay |
1.5S |
||
|
Short-circuit protection |
Yes |
||
|
Short-circuit protection delay |
Yes |
||
|
Temperature protection |
Yes |
||
|
|
Balance function |
Yes |
|
