Rechargeable Electric Scooter Lithium Battery with Ce
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express, Others
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Place of Origin: | CHINA |
|---|---|
| Payment Type: | L/C,Paypal,Western Union |
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Express,Others |
Product Description
Product Description
Basic Info.
Model NO.
lithium ion battery
Rated Capacity
20ah
Standard Voltage
60V
Usage
Remote Control Boat, Remote Control Plane, Remote Control Car
Electrolyte
Organic Electrolyte
Certificate
Ce, UL, ISO9001, ISO14001)
Voltage
60V
Capacity
20ah
Warranty
13 Month
Combination
16s8p
Transport Package
Cartons, Pallets
Specification
customize
Trademark
eastar
Origin
Shenzhen, China
Production Capacity
6000 PCS / Day
Product Description
Specification

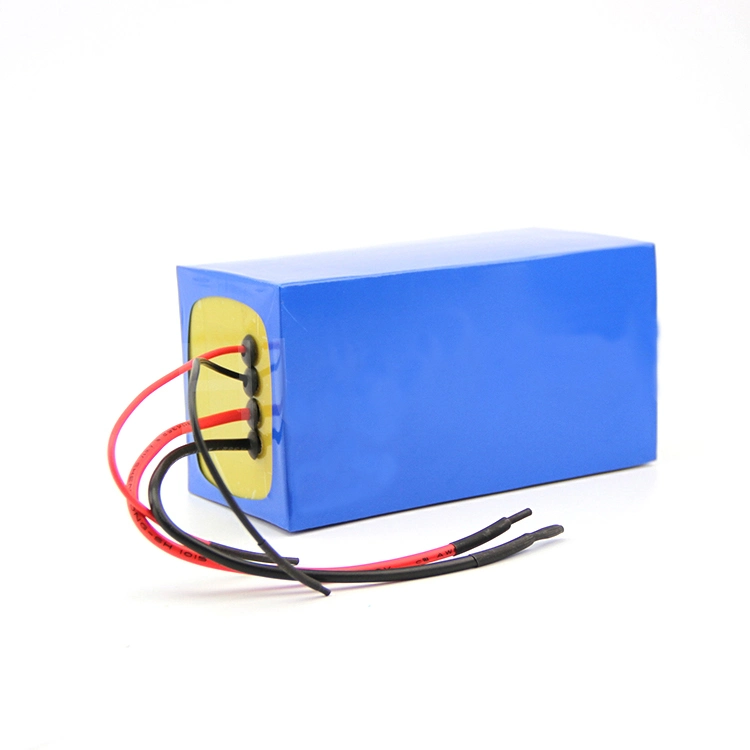

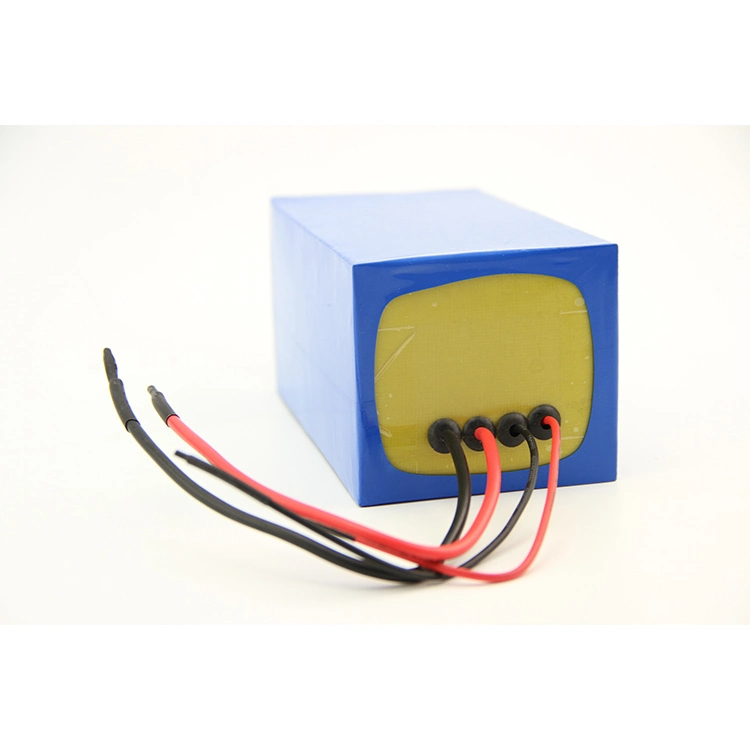

Rechargeable 16s8p 60V 20ah Electric Scooter Lithium Battery with CE
Rechargeable 16s8p 60V 20ah Electric Scooter Lithium Battery with CE
Voltage/Capacity: 60v/20ah
Battery cell material: LiMn2O4/Li(NiCoMn)O2/LiFepo4 etc.
Type of battery cell: 18650 made in china or import brand 18650
Combination mode: 16S8P or customized
Main protection: over-charge, over-discharge, over-current, short protection, temperature etc.
Application: e scooter, e bike
Battery cell material: LiMn2O4/Li(NiCoMn)O2/LiFepo4 etc.
Type of battery cell: 18650 made in china or import brand 18650
Combination mode: 16S8P or customized
Main protection: over-charge, over-discharge, over-current, short protection, temperature etc.
Application: e scooter, e bike
|
Technology parameters of 60v 20ah Li-ion battery pack
|
||
|
No.
|
Items
|
Parameters
|
|
01
|
Nominal voltage
|
60V
|
|
02
|
Nominal capacity
|
20AH
|
|
03
|
Rated power
|
≤1200wh
|
|
04
|
Continuous working current
|
25A/adjustable
|
|
05
|
Over current protection
|
50-75A/adjustable
|
|
06
|
Over charge protection voltage
|
4.25±0.025V/CELL optional
|
|
07
|
Over discharge protection voltage
|
2.5±0.05V/CELL optional
|
|
08
|
Charge mode
|
CC/CV
|
|
09
|
Charge current
|
0.2C-0.5C/adjustable
|
|
10
|
Diamensions of battery pack
|
Customized/design drawing service
|
|
11
|
Charge temperature
|
0 ºC~+45 ºC
|
|
12
|
Discharge temperature
|
-20 ºC~+60 ºC
|
|
13
|
Storage temperature
|
-5 ºC~+25 ºC
|
|
14
|
Relative humidity
|
40~85%RH
|
|
Technology parameters of 18650 Li-ion battery cell
|
||
|
No.
|
Items
|
Parameters
|
|
01
|
discharge level
|
2C~5C/adjustable
|
|
02
|
Size
|
Φ18mm×65mm/standard
|
|
03
|
Nominal voltage
|
3.6V/3.2v etc
|
|
04
|
Nominal capacity
|
1800mah/2000mah/2200mah/2400mah/2500mah
|
|
05
|
The maximum upper limit voltage
|
4.2V
|
Product Information:
Battery cell type: Li-ion Battery 18650 3.7v 2500mAh
Protection function: charging upper limit, cut-off discharge, over current, short circuit, temperature, balance and so on.
Features:
1. Accept OEM/ODM.
2. There are 2000mAh, 2200mAh, 2500mAh, 2600mAh, 3000mAh for options.
3. Use the orignial import cell, such as SANYO /SONY /PANASONIC /SAMSUNG /LG, and domestic famous brand for the battery pack.
4. Protection system: all adopts the original chip from Japan and USA.
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage:
1.If the battery need to be stored for a long time, charge the battery for 40%-70% electric quantity.
2.Battery and the charger should be stored in clean, dry and ventilating place, and should not be together with corrosive material, keep the battery away from fire and heat source.
Maintainance:
If the battery won't be used for a long period, charge it every 3 months, and each time 2~3h.
Transportation:
Battery should be transported after packaging, and should avoid severe vibrating, impacting, extrusion, and direct light and rain. They can be transported by train, ship and plane, etc.
Battery cell type: Li-ion Battery 18650 3.7v 2500mAh
Protection function: charging upper limit, cut-off discharge, over current, short circuit, temperature, balance and so on.
Features:
1. Accept OEM/ODM.
2. There are 2000mAh, 2200mAh, 2500mAh, 2600mAh, 3000mAh for options.
3. Use the orignial import cell, such as SANYO /SONY /PANASONIC /SAMSUNG /LG, and domestic famous brand for the battery pack.
4. Protection system: all adopts the original chip from Japan and USA.
Warranty:
The period of warranty is one year from the date of shipment.
We guarantee to give a replacement in case of cells with defects proven due to manufacturing process instead of the customer abuse and misuse.
Storage:
1.If the battery need to be stored for a long time, charge the battery for 40%-70% electric quantity.
2.Battery and the charger should be stored in clean, dry and ventilating place, and should not be together with corrosive material, keep the battery away from fire and heat source.
Maintainance:
If the battery won't be used for a long period, charge it every 3 months, and each time 2~3h.
Transportation:
Battery should be transported after packaging, and should avoid severe vibrating, impacting, extrusion, and direct light and rain. They can be transported by train, ship and plane, etc.
Advantages:
1. Provide customization, of course, the cost is free. And global after-sales service.
2. Ensure the consistency and the extension of battery pack life.
3. Stable discharge voltage performance, good rate performance, excellent cycle life, perfect safety performance.
4. Eco-Friendly and environmentally friendly.
5. UN, UL certifications and standards of ROHS.
6. International advanced automatic production and inspection equipment fully installed in UL safety Testing lab & Battery performance Testing lab.
1. Provide customization, of course, the cost is free. And global after-sales service.
2. Ensure the consistency and the extension of battery pack life.
3. Stable discharge voltage performance, good rate performance, excellent cycle life, perfect safety performance.
4. Eco-Friendly and environmentally friendly.
5. UN, UL certifications and standards of ROHS.
6. International advanced automatic production and inspection equipment fully installed in UL safety Testing lab & Battery performance Testing lab.
|
01
|
Have been engaged in custom battery since 2008
|
||
|
02
|
Provide sample for free if amount less than USD5
|
||
|
03
|
Professional PCM/BMS design technology
|
||
|
04
|
Finished battery safety performance could reach MSDS/UN38.3 etc test standard
|
||
|
05
|
5S factory with dust-free workshop
|
||
|
06
|
100% quality inspection
|
||
|
07
|
Process design far exceeds battery industry standard
|
||
FAQ
1.Q:Can you accept OEM and ODM Service?
A:Yes, we supply OEM&ODM service as clients requirement.
2.Q:Can we get samples for test?
A:Yes, we offer sample, but free samples are not available at beginning.
3.Q:What's your payment term?
A:TT, L/C, West Union, Paypal etc.
4.Q:What's your warranty for products?
A:Generally speaking, it's one year's warranty, for quality problems, we will send you a new one.
5.Q:How long will be the delivery?
A:Usually delivery in 7-15 days, but could be change according to the quantity or other things.
6.Q:How do you control your product quality.
A:All batteries have 10 steps testing during the whole production.
