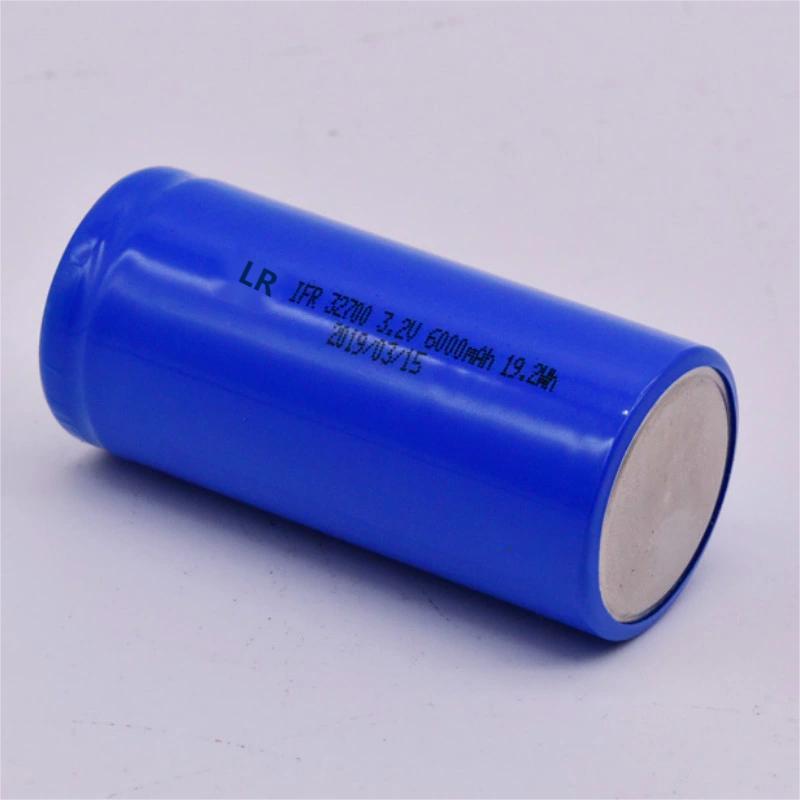

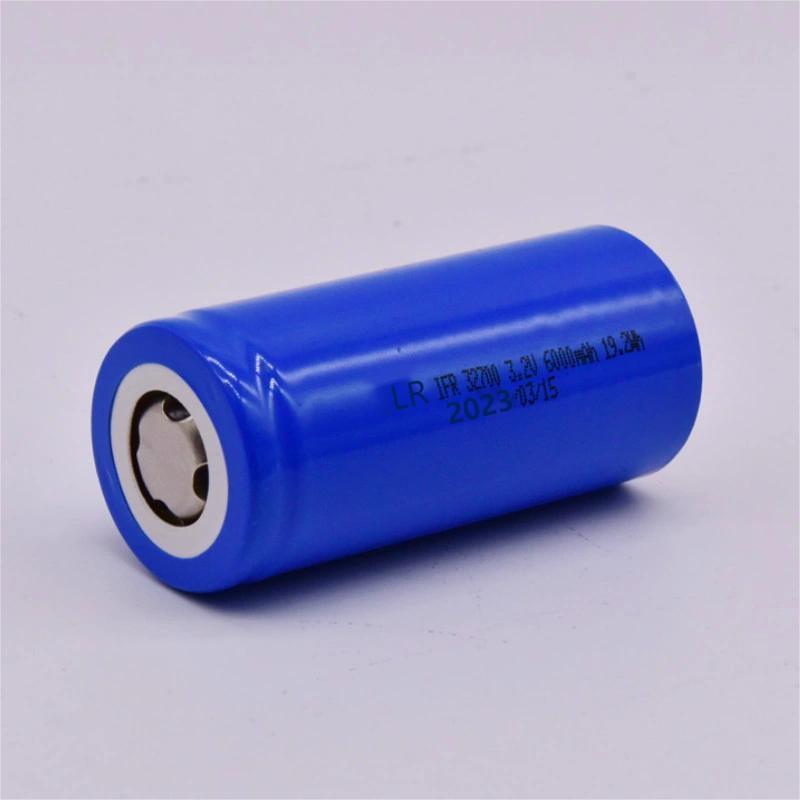

3.2V 6ah 32700 LiFePO4 Battery Cell
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Others
- Port:
- shenzhen
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | L/C,Paypal |
|---|---|
| Incoterm: | FOB |
| Transportation: | Ocean,Land,Air,Others |
| Port: | shenzhen |
3.2V 6 hour 32700 Lithium Iron Phosphate Battery integrates the latest energy storage technology and is designed for high performance and long life. As the leader of the 3.2V Cylindrical Battery series, it not only maintains excellent voltage stability, but also significantly improves the energy density. In particular, the battery is based on advanced 3.2V Lifepo4 Battery technology, which ensures excellent cycle life and safety, and stable operation even under extreme conditions.
For those seeking high-capacity applications, our 3.2V 100Ah Lifepo4 Battery is ideal because its high-capacity design can meet the needs of long-term power supply, especially for solar energy storage systems. As a representative of the 3.2V 6ah 32700 LiFePO4 Battery Cell, it is able to efficiently convert solar energy into electricity and store it, providing clean and reliable energy for homes and businesses. Whether in remote areas or urban environments, this battery can be an important force in promoting the green energy transition due to its high efficiency and environmental protection characteristics.
|
Item
|
General Parameter
|
Remark
|
|
Nominal Capacity
|
6000mAh
|
0.2 C5A Discharge
|
|
Nominal Voltage
|
3.2V
|
Mean Operation Voltage
|
|
Discharge cut-off voltage
|
2.0V
|
0.2 C5A Discharge
|
|
Charging limited Voltage
|
3.65±0.03V
|
0ºC~45ºC
|
|
Standard Charge Current
|
0.2 C5A
|
0ºC~45ºC
|
|
Standard Discharge Current
|
0.2 C5A
|
-10ºC~ +60ºC
|
|
Rapid Charge Current
|
0.5C5A
|
0ºC~45ºC
|
|
Rapid Discharge Current
|
0.5C5A
|
-10ºC~ +60ºC
|
|
Max. Discharge Current
|
3C5A
|
Limited Voltage2.0V
|
|
Max. Pulse Discharge
Current |
5C5A
|
ms
|
|
Internal Impedance
|
≤25mΩ
|
At AC 1kHz
|
|
Weight
|
About141g
|
±2g
|
|
Storage Temperature Range
|
one month -20ºC ~ 45ºC
three months -20ºC ~ 35ºC a year -20ºC ~ 25ºC |
Voltage of shipment
2.8V~3.2V |
Located in Shenzhen and Dongguan, we have two professional factories, both of them are ISO9001 certfied, there are more than 1500 employees and monthly output can be 9,000,000pcs, the product have been approved the CE,UL organization and pass the ROHS test.
Each of our production is strict quality control in each step of the production process, from the purchase of raw materials through each step in the manufacturing process.
As a professional power supplier, we engage in providing the high quality, high effective, environmental friendly and safety portable power solution for your life, meanwhile, we have a wide range battery to meet the needs of various products, such as Digital Consumer products, Telecom Product, Electric Tools, Electric Toys, Lamps, Notebook, GPS, Medical Instrument, UPS, Backup battery, Solar products, E-Bike, HEV and other electric products.
LR always pay more attention to product quality as our life and has already established a very strict, scientific quality control system according to the requirement of ISO 9001:2000 to ensure the quality control from the purchasing and inspecting of raw materials (IQC), In process quality control (IPQC) to Out-going quality control (OQC). Meanwhile, we have a complete training system, all staffs need to train and pass exam before work. The scientific management system, advanced research capacity, professional quality control team, superior performance and good service obtain many acceptances of customers from all over the world.
