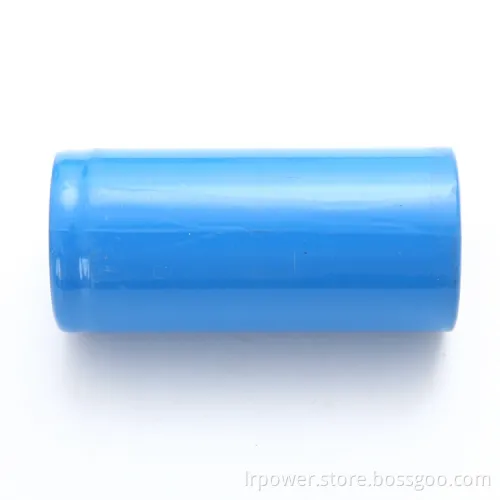

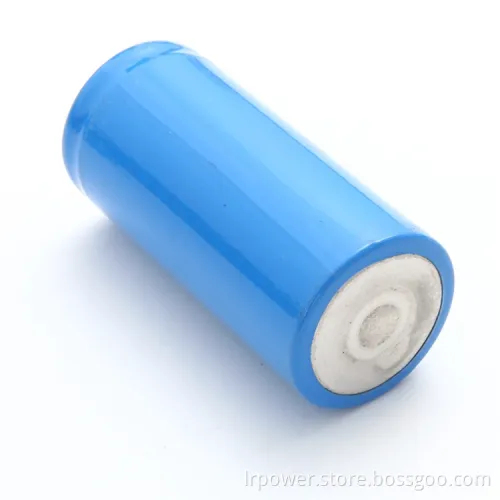

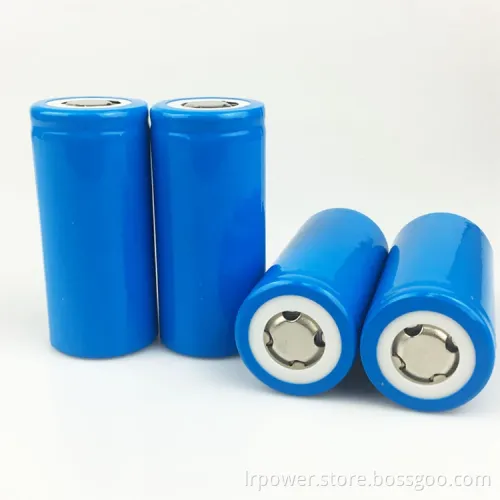

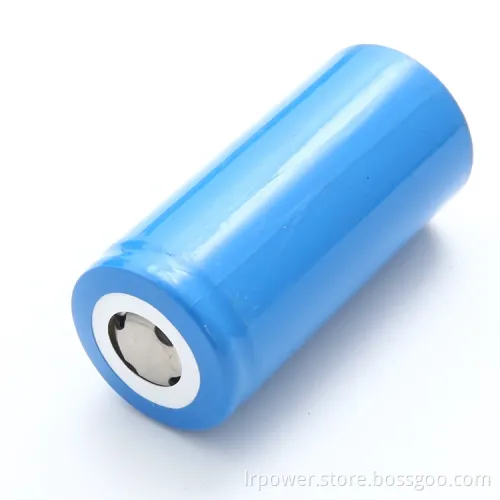

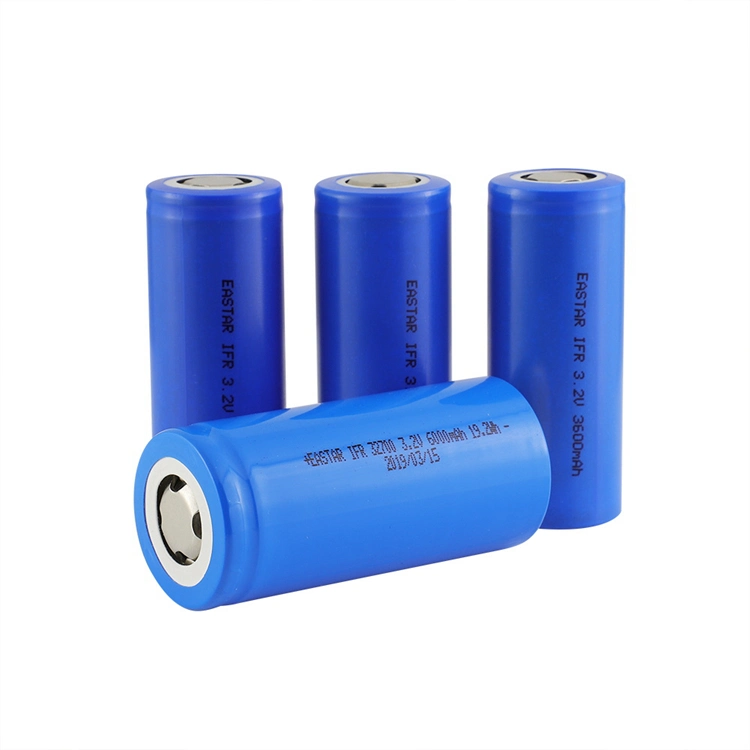

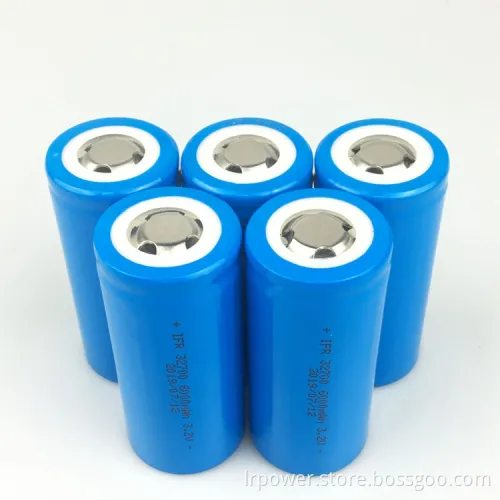

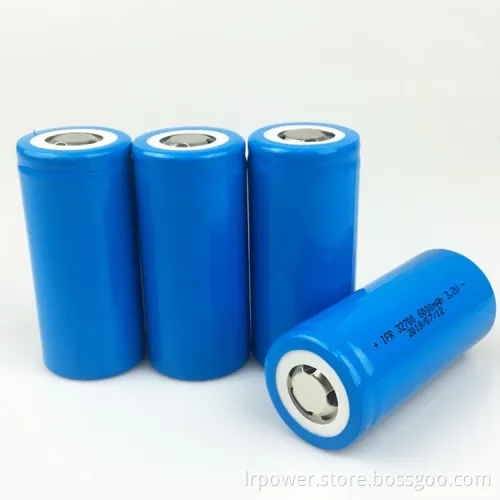

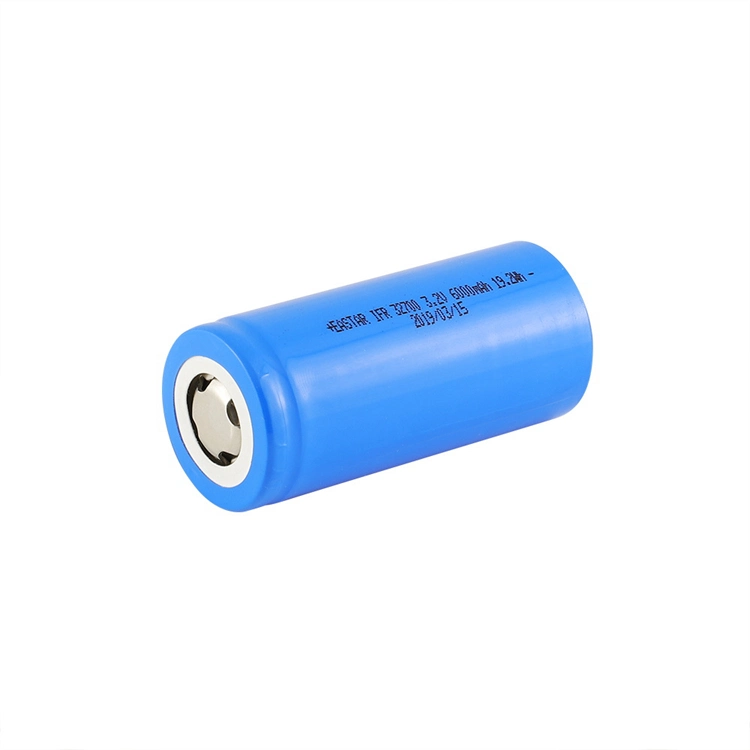

High Quality 3.2V 6000mAh LiFePO4 Battery
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Transportation:
- Ocean, Land, Air, Express
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | L/C,D/A |
|---|---|
| Transportation: | Ocean,Land,Air,Express |
Product Description
Product Description
Basic Info.
Rechargeable
Chargeable
Warranty
3 Years
Cycle Life
More Than 2000 Times
Battery Cell
32650 3.2V 6000mAh
Voltage
3.2V
Capacity
6000mAh
Size
32*65 mm
Transport Package
Cartons, Pallets
Specification
customize
Trademark
eastar
Origin
Shenzhen, China
Production Capacity
10000PCS / Day
Product Description
Specification
Key Features :
♦Longer Cycle Life : Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦Lighter Weight : About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦Higher Power : Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦Wider Temperature Range : -20ºC~60ºC
♦Superior Safety: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
| Name | Specification |
| Battery cell specification | |
| Voltage | 3.2v |
| Capacity | 6000mah |
| Size | 32650 |
| Charge cut-off voltage | 3.6v |
| Discharge cut-off voltage | 2.6v |
| Weight | about 160g |
| Max constant discharging current | 18A |
| Peak Current | 20A |
| Max constant Charge current | 3A |
| Charge method | CC-CV |
| Charge temperature | 0ºC~45ºC |
| Discharge temperature | -20ºC~45ºC |
| Storage temperature | -20ºC~45ºC |
| Size | 32*65 (D*H) mm |
| Cycle life 80% DOD | more than 2000 times |
| Warranty | 3 years |

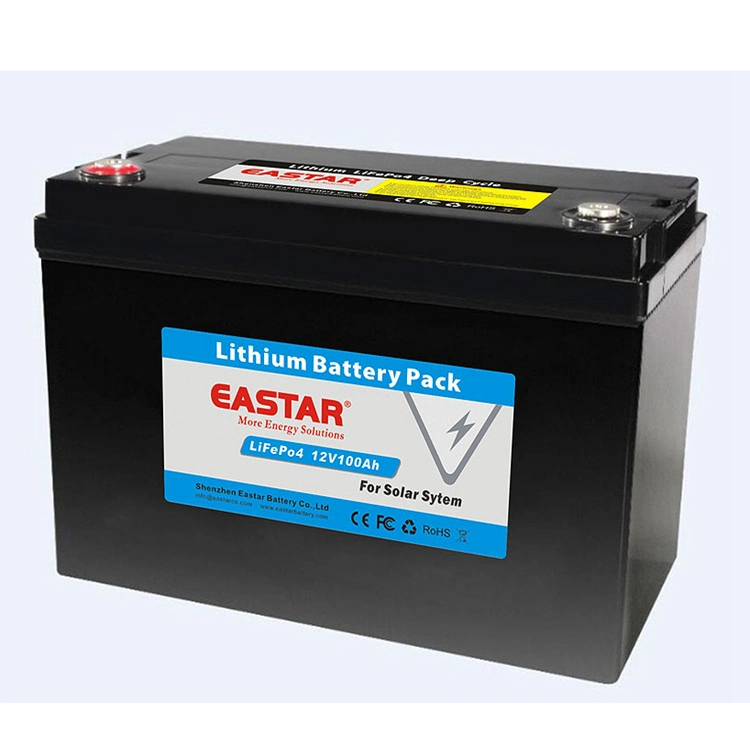

Application

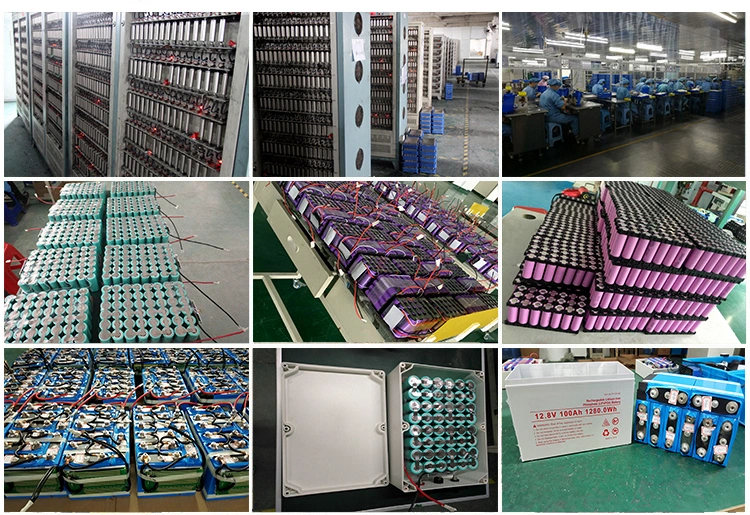

About Eastar Battery
Langrui Energy (Shenzhen) Co.,Ltd was set up as a manufacturer of various batteries in 1997.Our main products include dry batteries ( carbon & alkaline), lead-acid batteries(General batteries, Auto batteries), Ni-MH/Ni-CD batteries and packs, Lithium batteries ( Li-ion, Li-PO).

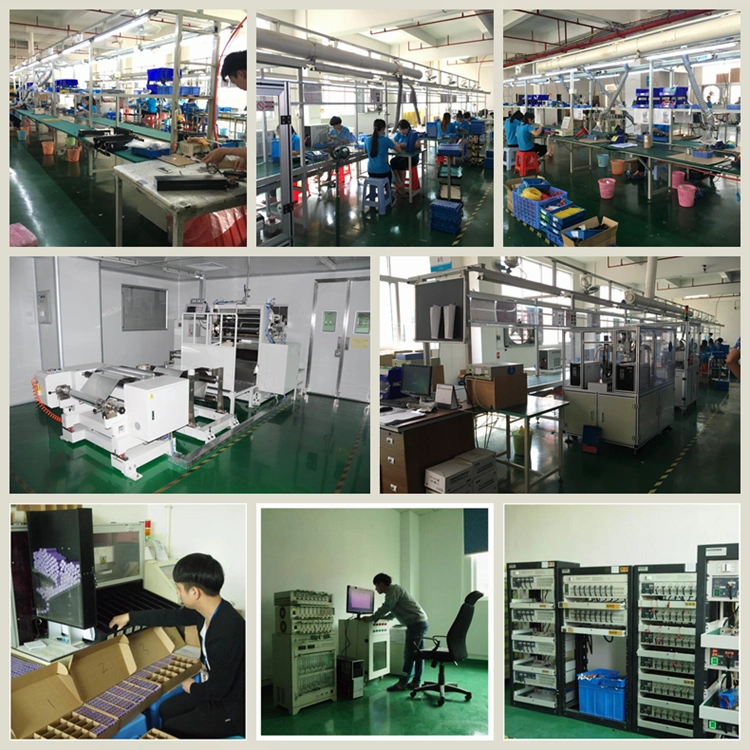

Quality is our life
As a battery manufacturing group, we have separate factory located in Guangzhou, Shenzhen and Xingfeng for different battery types.We invested much on the advanced production facilities and testing equipments.We have a powerful R&D and skillful worker group.Based on ISO9001, we built up a complete quality control system.
The best services to you
1 year Warranty
ODM & OEM service
24 hours online service
Payment & Shipping
=
FAQ
1.Q:Can you accept OEM and ODM Service?
A:Yes, we supply OEM&ODM service as clients requirement.
2.Q:Can we get samples for test?
A:Yes, we offer sample, but free samples are not available at beginning.
3.Q:What's your payment term?
A:TT, L/C, West Union, Paypal etc.
4.Q:What's your warranty for products?
A:Generally speaking, it's one year's warranty, for quality problems, we will send you a new one.
5.Q:How long will be the delivery?
A:Usually delivery in 7-15 days, but could be change according to the quantity or other things.
6.Q:How do you control your product quality.
A:All batteries have 10 steps testing during the whole production.
| Model | Nominal Voltage | Nominal Capacity | Nominal impedance | Dimension | Charge-discharge standard | Approx Weight | |||
| (V) | (mAh) | (mQ) | Diameter | Height | Charge | Discharge | ≈g | ||
| ICR10220 | 3.7 | 130 | <150 | 10 | 22 | 0.5C-1C | 0.5C-1C | 4.1 | |
| ICR10440 | 3.7 | 350 | <120 | 10 | 44 | 0.5C-1C | 0.5C-1C | 9 | |
| ICR14430 | 3.7 | 650 | <100 | 13.8 | 42.8 | 0.5C-1C | 0.5C-1C | 17 | |
| ICR14500 | 3.7 | 900 | <80 | 14 | 50 | 0.5C-1C | 0.5C-1C | 19.5 | |
| ICR17280 | 3.7 | 600 | <100 | 16.3 | 28 | 0.5C-1C | 0.5C-1C | 15 | |
| ICR17335 | 3.7 | 700 | <100 | 16.3 | 33.5 | 0.5C-1C | 0.5C-1C | 18 | |
| ICR18500 | 3.7 | 1400 | <70 | 18.1 | 50 | 0.5C-1C | 0.5C-1C | 33 | |
| ICR18650 | 3.7 | 2000 | <50 | 18.1 | 64.8 | 0.5C-1C | 0.5C-1C | 45 | |
| ICR18650P | 3.7 | 2000 | <40 | 18.1 | 65 | 0.5C-1C | 3C-5C | 45 | |
| ICR18650P | 3.7 | 2200 | <40 | 18.1 | 65 | 0.5C-1C | 3C-5C | 45 | |
| ICR18650 | 3.7 | 2600 | <70 | 18.1 | 64.8 | 0.5C-1C | 0.5C-1C | 45 | |
| ICR26650 | 3.7 | 3500 | <30 | 26 | 65.5 | 0.5C-1C | 0.5C-1C | 85 | |
| ICR26650P | 3.7 | 5000 | <30 | 26 | 65.5 | 0.5C-1C | 0.5C-1C | 85 | |
| ICR18650P | 3.7 | 1500 | <15 | 18.1 | 64.8 | 1C | 10C-15C | 47 | |
| ICR26650P | 3.7 | 2200 | <15 | 26 | 64.8 | 1C | 10C-15C | 64 | |
| IFR14430E | 3.2 | 400 | <115 | 13.8 | 43 | 0.5C-1C | 0.5C-1C | 15 | |
| IFR14500E | 3.2 | 400 | <95 | 13.8 | 50.2 | 0.5C-1C | 0.5C-1C | 15.5 | |
| IFR14500E | 3.2 | 650 | <80 | 13.8 | 50.2 | 0.5C-1C | 0.5C-1C | 17.8 | |
| IFR18500E | 3.2 | 600 | <80 | 18 | 50 | 0.5C-1C | 0.5C-1C | 19.5 | |
| IFR18500E | 3.2 | 1200 | <80 | 18 | 64.8 | 0.5C-1C | 0.5C-1C | 30.4 | |
| IFR18650E | 3.2 | 1500 | <65 | 18 | 64.8 | 0.5C-1C | 0.5C-1C | 40.5 | |
| IFR18650E | 3.2 | 1700 | <80 | 18 | 65.3 | 0.5C-1C | 0.5C-1C | 41.2 | |
| IFR26650E | 3.2 | 3400 | <20 | 26 | 65.3 | 0.5C-1C | 0.5C-1C | 87 | |
| IFR18650P | 3.2 | 1100 | <20 | 18 | 65.3 | 1-3C | 10-25C | 40 | |
| IFR26650P | 3.2 | 2400 | <20 | 26 | 65.3 | 1-3C | 10-25C | 82 | |
