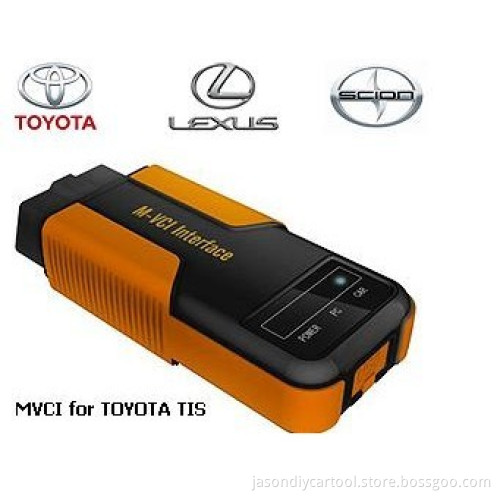

MVCI for TOYOTA TIS

Fully compatible with Toyota TIS, Honda HDS and VOLVO DIDA (New!!!)
Supports Diagnostics, Reprogramming, Active tests, and key programming
Supports most 1996 and newer Toyota, Lexus, and Scion vehicles with OBDII/DLC3 diagnostics
Fully compatible with SAE J2534
Programmable power supply
Able to apply 5V-24V to OBD pins 6,9,11,12,13,14 or AUX 2.5mm stereo connector
Able to apply GND to OBD pins 6,9,11,12,13,14,15 or AUX 2.5mm stereo connector
RGB status LEDs
Supported Protocols

K-Line ISO 9141
KWP 2000 ISO 14230-4
SAE J1850 PWM
SAE J1850 VPW
CAN 2.0B ISO 11898
CAN ISO 15765-4
Specifications

Operating Temperature: -20 to 70 C ( -4 to 158 F )
Storage Temperature: -40 to 85 C ( -40 to 185 F )
Diagnostic Interface: 16PIN
USB Interface : USB 2.0
Power: DC 5 V - 36V
Consumption: 0.7W
Dimensions: 95mm(3.74)L x 49mm(1.93)W x 28mm(1.10)H
Net Weight: 85g
Gross Weight: 193g
Accessories Included

User Manual: Instructions on tool operations
Driver CD: Includes user manual, drivers, and etc.
OBD II cable: Communicates between tool and vehicle
USB cable: Communicates between tool and PC/Laptop
Carry case: A nylon case to store the tool when not in use
LANGUAGE:
English
Deutsch
Francais
Espanol
Italiano
Chinese
