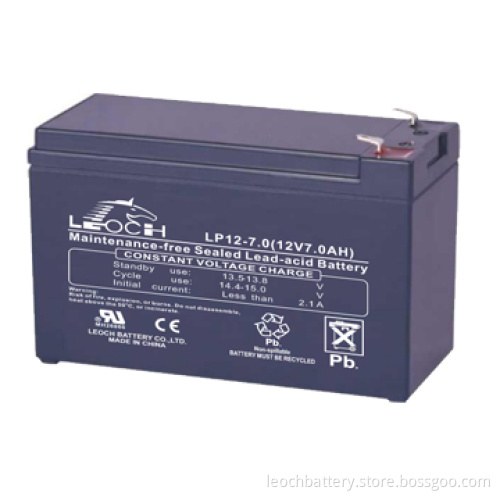

UPS Battery with 12V Nominal Voltage and 7Ah Rated Capacity
Your message must be between 20 to 2000 characters
Contact NowBattery type: valve-regulated lead-acid
Maintenance free lead acid battery
Voltage: 12V
Maintenance type: free
Size (L x W x H): 151 x 64.5 x 94.5mm
Weight: 2.18kg (4.85 lbs)
Nominal capacity: 7Ah/20hrs
Rated capacity: 6.51Ah/10 hours, 5.95Ah/5 hours/4.4Ah/1 hour
Container material: ABS
Maximum discharge current: 105A (5s)
Cycle use: 14.4 to 15.0V at 25°C
Standby use: 13.5 to 13.8V at 25°C
Operating temp. range: <ul>
Discharge: -15 to 50°C (5 to 122°F)
Charge: 0 to 40°C (32 to 104°F)
Storage: -15 to 40°C (5 to 104°F)</ul>
Capacity affected by temperature: <ul>
40° C (104° F): 103%
25°C ( 77° F): 100%
0° C ( 32°F): 86% </ul>
Typical applications:<ul>
Uninterruptible power supply (UPS)
Electric power system (EPS)
Emergency backup power supply
Emergency light
Railway signal
Aircraft signal
Alarm and security system
Electronic apparatus and equipment
Communication power supply
DC power supply
Auto control system</ul>
Features:<ul>
Using oxygen recombination technology: maintenance-free
PbCaSn alloy for plate grids: less gassing, less self-discharging
High quality AGM separator: extend cycle life and prevent micro short circuit
ABS material: increase the strength of battery container (flame-retardant ABS is optional)
High purity raw material: ensure low self discharge rate
Silver-coated copper terminals (T1, T2 terminal), brass insert terminals and lead terminals improve the electric conductivity
