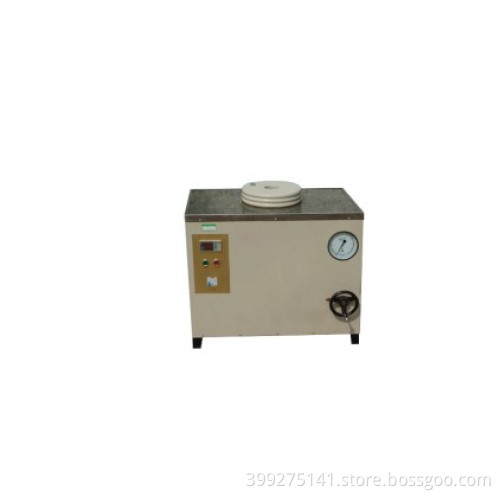

Oxygen Aging Oven (HD-YDY-2)

It is used for aging test for electric wire, cable, the sheath of rubber (plastics and artificial leather) and insulation layer, as well as the other high polymer materials under the specific pressure and temperature in the medium of oxygen and compressed air. It meets the standard of IEC 60884, VDE 0472.

Technical parameter:
Test voltage: 220V AC
Max working pressure: 2.5 mpa
Max blow up pressure: 2.7-3 mpa
Auto control range temperature: 20-150 centigrade degrees
Cubage: 4000 cm³
Heat power: 2400W
Temperature precision: ± 0.5 centigrade degrees
Temperature control: LCD
Temperature alarm: 0-130 centigrade degrees adjustable
External shape of oxygen box: 560× 420× 670mm; 560× 420× 1045mm
Material: Stainless steel

Standard:
IEC 60884
VDE 0472
