Mercedes Benz Diagnosis STAR C3

MB Star  (compact 3 star)    STAR C3

PC Based Mercedes-Benz Diagnostic System WO/Laptop

Compact 3- Star Diagnosis Tester for BENZ (DAS+WIS+EPC) - Compact Star 3 is the professional diagnostic equipment for Mercedes Benz cars manufactured after year 2000, it is the replacement of HHT. Compact 3--Star operate based on the Windows XP system, it includes workshops information system(WIS system), the movement management system (STARUTILITIES) and the automatically diagnose system (the DAS system)

Introduction
MB STAR realizes all the functions of official factory BENZ Star2000: reading out and erasing trouble code; reading the real-time data of sensor and actuator; coding and programming. It applies the latest high-tech central gateway system of car model 221/211 and 203 with software version updated to January of 2009, can enter all the Benz cars, such as autobus truck, saloon car, sports car, smart car and so on.

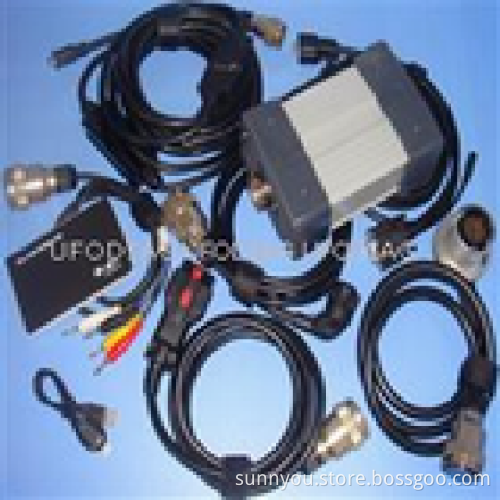

Configuration
- MULTIPLEXER
- 16+PIN OBD II cable
- 38+PIN cable
- 14+PIN cable
- 4+ pin cable
- RS232 communication cable (navigation port)

FUNCTION:
Reading trouble code
erasing trouble code
live-data, adaptation
component testing
maintenance information consultation
component location diagram
wiring diagram.
Coding the new ECU.......

DAS:
Concise interface and straightforward operation with IBM high-quality computer can realize the quick and accurate code reading and the whole car system testing.

WIS net:
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -----all in detail.

star finder:
component location diagram for colorized.

software: it is 09,2009, more than 20 kinds of language, such  as,en,de,fr,cn,jp,kr,gr,br,pl,dk,ru,ro,pt,se,tr,es,hu,sp,it

here is the inner circuit board ,best quality:
