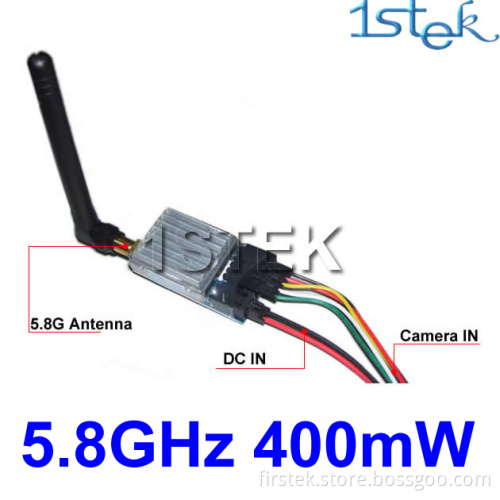

5.8Ghz FPV Video AV TX 400mW 4.0Km For RC Plane

A Transmission frequency 5705-5945MHz,8 channels
B Transmit Power 50dBm/400mW
C Transmission Distance > 4000 meters
D Frequency Control  Built-in PLL(Phase Locked Loop)
E AV input, direct input analog audio and video signals
F Antenna interface,SMA (the pin)
G Supply voltage, 7-15V
H Supply Current, 260mA
I Dimension 55 * 26 * 17mm Weight 30G

Working frequency,

CH1 5705 CH2 5685
CH3 5665 CH4 5645
CH5 5885 CH6 5905
CH7 5925 CH8 5945
