p7.62 indoor SMD 3in1 indoor LED screen
Your message must be between 20 to 2000 characters
Contact NowDetailed Product Description
2.High refresh rate,high brightness
3.Wide viewing angle.
4.Excellent after-sales service
Product Features:
1. Our box of indoor SMD full color uses aluminum alloy casting (special aluminum), which is the industry's only, while other manufacturers use the most use of iron or aluminum box welded. Worth mentioning that our box has a unique lifting structure, particularly suitable for rental use
2 .our quality management is accordance with the requirement of German operating instructions sticktly . the rate of blind spot for indoor SMD full color led screen can be controled within one ten-thousandth
3. The differeces of brighness between 2 kinds of indoor full color led light are less then 15%,to ensure the display brightness and color uniformity, and avoid the appearence of "stain","dazzling”,"mosaic”and vague phenomena
4. Our full color led passed the test of CHINA CEPREI Labortory and meet the standard of 73/23/EEC,89/336/EEC,93/68/EEC, and has got CE,FCC,UL,ROHS approval in succession.

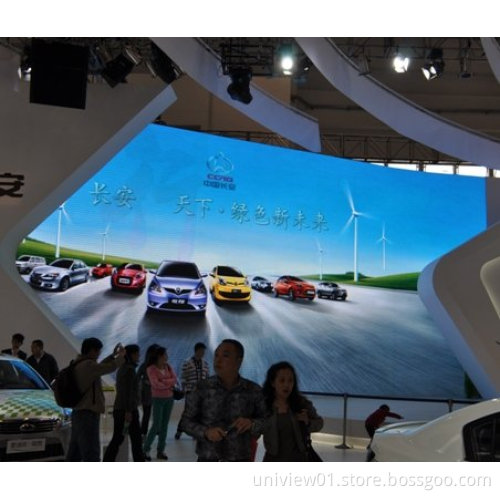

5 .Widely used in advertising, sports, industrial enterprises, transportation, stations, terminals, airports, construction, education system and other public places
Parameters:
|
Pixel pitch (mm) |
P7.62 |
|
Pixel configuration(R.G.B) |
SMD 3 in 1 |
|
Pixel density(dots/m2 ) |
17222 |
|
Module size(mm) : |
244×122 |
|
Cabinet size(mm) |
976×732 |
|
Cabinet weight(kg/pc) |
40 |
|
Brightness (nit/sqm.) |
1500-2000 |
|
Viewing distance (min.-max.) (m) |
3m—200m |
|
Viewing angle(H-degree, V-degree) |
140°(H), 70°(V) |
|
Gray scale(level) |
4096 |
|
Refresh frequency(Hz) |
9000 |
|
IP level(front/rear) |
IP54 |
|
Color temperature |
6500K±500 |
|
MTBF(hours) |
10,000 hours |
|
Blind dots rate |
≤0.0001 |
|
Power consumption(w/m2) |
700w(Max); 240w(Average) |
|
Operating environment |
—20°C~+60°C |
|
Operating system |
WINDOWS(WIN98,WIN2000,WINXP) |
|
Life span |
100,000 hours |
|
Control distance |
100 m by net line; Optical fiber transmission: 500m- 10km |
