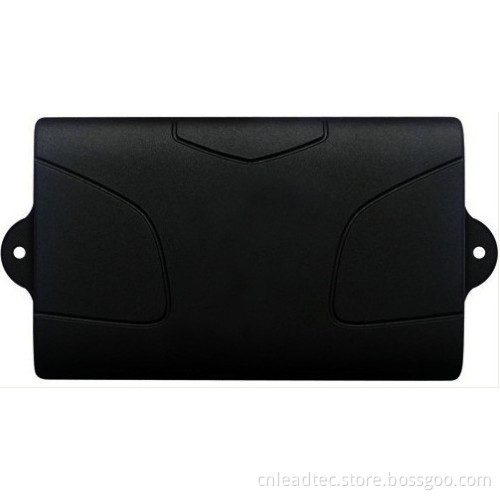

long battery vehicle tracker LT800
Your message must be between 20 to 2000 characters
Contact NowThis tracker is a new product based on the GSM / GPRS network and GPS satellite positioning system, which set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety. It can track and monitor remote target by SMS or internet.
1. Main Features
1.1 Waterproof shell
1.2 Built-in large capacity 6000MA battery, long standby time of 60 days.
1.3 Powerful magnets to absorb to vehicle firmly.
1.4 Real-time tracking, retrieve of lost vehicles, cargo.
1.5 Movement alarm, Geo-fence alarm, shock sensor alarm, remote monitoring.
1.6 Support map viewing on mobile phone screen, get absolute address by SMS, GPRS real time tracking on web based server.
1.7 Built-in high sensitivity GPS and GSM antenna to make it can be used alone without installation, convenient and quick.
1.8 Support for external GSM antenna, GPS antenna, and external power supply for the tracker to be installed on the device which can provide power for long-term using.
2. Basic functions:
2.1. ON/OFF Function
2.2. Initialization
2.3. Change Password
2.4. Add and Delete authorization
2.5. Single Locating
2.6. Successive Locating Automatically
2.7. Get Absolute address including street name
2.8. Check the Vehicle State.
2.9. Check IMEI
2.10. Setup time zone for tracker
2.11. Track Mode
2.12. Monitor mode
2.13. Cut off the Oil and Power System(Option)
2.14. Resume the Oil and Power System(Option)
2.15. Tracker's Hardware Resetting
2.16. Geo-fence
2.17. Movement Alarm
2.18. Over Speed Alarm
2.19. Shock Sensor Alarm
2.20. SOS(Option)
2.21. Low power alarm
2.22. Sleep functions
3. We offer a variety of real-time tracking & monitoring software platfor
3.1 View map on the cell phone screen
3.2 Get absolute address in SMS by cell phone
3.3 PC installation GPRS tracking & monitoring software
3.4 Web based GPRS real time online tracking
3.5 Please check the CD with the tracker for detailed instructions.
4. Applications
Applies to: Locating and tracking service for cars, trucks, container trucks, special vehicles, cargo and criminal investigation officer.
Content | specifications | |
DIM. | 94mm*60mm*38mm | |
Weight | 300g | |
Network | GSM/GPRS | |
Band | 850/900/1800/1900Mhz or 900/1800/1900Mhz | |
GSM/GPRS Module | Simcom340z or Simcom300z | |
GPS Module | SIRF3 chip | |
GPS sensitivity | -159dBm | |
GPS Accuracy | 5m | |
GPS Start time | Cold status | 45s |
Hot status | 1s | |
EXT. Power | DC 12 V -24V | |
Operating Current | Sleep Current | 4mA± 1mA |
GSM operating Current | 54mA± 3mA | |
GPRS Current(data transfer) | 60mA± 5mA | |
Battery | 3.7V 6000mA/h Polymer battery | |
Charge current | 1.2A± 0.2A | |
Charge time | 5h | |
Standby time | GSM sleep mode | 1500h |
Storage Temp. | -40° C to +85° C | |
Operation Temp. | -20° C to +65° C | |
Humidity | 5%--95% non-condensing |
