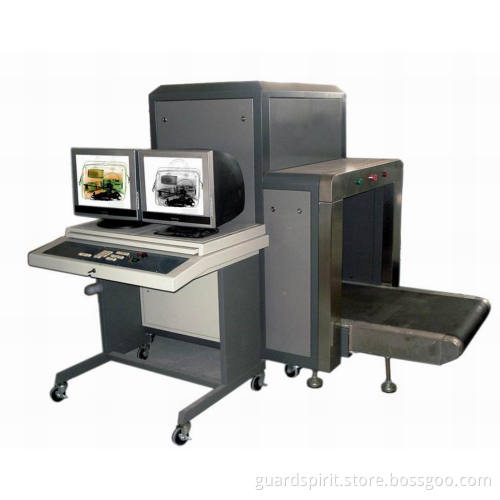

x-ray machine luggage scanner XJ8065

Features:

*High resolution images

*Simple User-friendly operation

*Strong Image storage capacity

*Automatic Self-diagnostic maintenance system

*One Key shutdown control

Parameter:

*Tunnel Size:800mm(W)*650mm(H)

*Load Weight:150Kgs

*Conveyor Speed:0.2-0.23m/s

*Radiation Leakage:0.54 μG/h

*Penetration:34mm steel

*X-ray resolution:40WAG

X-Ray Generator:

*X-ray beam direction:From Top

*Beam Divergence:80°

*Tube Voltage:80-160Kv

*Electronic Current:0.2-1.25mA

*Cooling:Sealed oil cooling + 100% Dutycycle

Image Function:

*X-ray Converter Arrangement:Dual Energy L-shaped photodiode array detector

*Inorganic/Organic Stripping:Organic substances display in Orange, Inorganic

substances display in blue, mixtures display in green

*Maximum Image Resolution:1024*768

*Image Storage:100,000pcs

*Image Display Color:Black/White & Color

*Grey Level:65536

*Zone & Zoom:1-9 image zones, 2,4,8 times zooming

*Other Function:Alarm, Review, Density Enhancement, Negative/positive image,Light/Dark Enhancement, automatic count, One Key Power Off, Working status display, Date & time display, Rush Stop Protection,Dangerous Alarm, System Failure Alarm etc.

Working Environment:

*Work Temperature & Humidity:0°C~+45°C/ 20%~95%(Non Cooling),

-10°C~+45°C/ 5%~95%(Optional)

*Storage Temperature & Humidity:-40°C~70°C/ 5%~95%(Non Cooling)

*Power:220VAC(+10%~-15%,,50Hz±3Hz)
