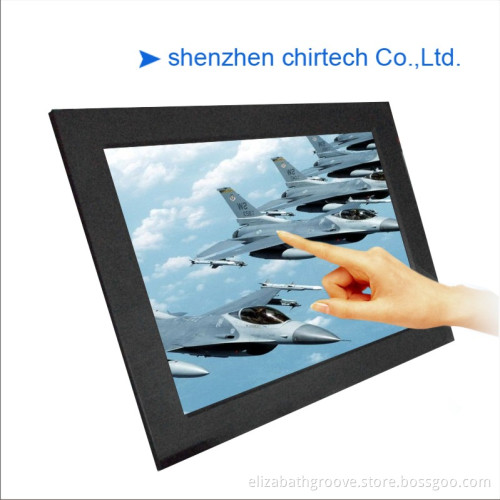

12 inch Industrial Touchscreen LCD Monitor (LMI121WT)

Chirtech (LCD monitor manufactor) is an excellent supplier specializing in the design and production of LCD monitor for industry, research centers and millitary.

The 12.1" flat panel LCD display with touchscreen is designed specially to be used in a variety of industrial and process control environments. This monitor is suitable for industrial, ATM's, marine equipment, CNC, HMI, medical, public information, food, chemical, pharmaceutical, process control etc.

This display is PC compatible with VGA video boards, besides the BNC in and loop-through out, which satisfies a wide variety of industrial control and man-machine interface application.

Feature:
1. Rugged construction ensures long-lasting durability with professional High Purity Color filters
2. Excellent Brightness and Contrast
3. 3-D video noise reduction
4. Motion adaptive 3-D comb filter
5. High-quality dual scaling engines & dual 3-D video de-interlacers
6. Specific high performance picture/color processing engine
7. Applicable to all surveillance system
8. High performance and programmable sharpening filters with Noise Coring
9. Easy Operation on muti-language OSD

Parameter:

Des LMI121WT
Panel Type 12.1" TFT Color LCD
Active Display Area 246(H)mmx184.5(V)mm

Brightness 250CD/m2
Contrast Ratio 300: 1
Resolution 800X600
Response Time 12ms
Viewing Angle 140/130
Input Signal PC Connector: Analog input D-SUB-15pin Fh: 31KHz-80KHz Fv: 50Hz-75Hz
VIDEO NTSC/PAL Composite Video
1CH BNC In (Lever: 1.0V p-p/75ohm)
1CH BNC Loop-through Out
Touch Screen Type 4-Wire or 5-Wire resistive
Interface USB or RS232
Resolution 4096x4096
Software Windows 7/Vista/XP/2000, Linus, Mac OS
Life Over 1 million
Surface 3H hardness
Power Input DC12V/3A
Operating Method 5 keys keypad OSD
Power Consumption Max. 25W
Operation Temperature
-10~60
Operation Humidity 10%~80%
Storage Temperature
-20~65
Storage Humidity 10%~80%
Case Material steel
Net Weight
2.8kg
