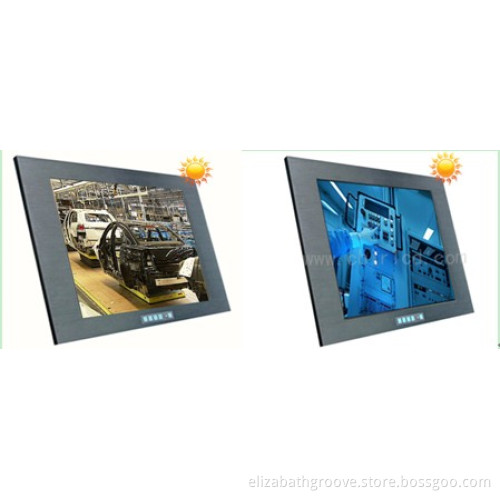

10.4 inch Outdoor Industrial Lcd Display(LMB104WM)
- Min. Order:
- 0
- Min. Order:
- 0
- Delivery Time:
- 5 Days
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | Shenzhen,China |
|---|---|
| Supply Ability: | 10000/per year |
| Certificate: | CE,EMC,SGS,ROHS,ISO9001 |
Des LMB104WM
Panel Type 10.4 inch high brightness panel
Active Display Area 211.2(H)mm*158.4(V)mm
Brightness 1000nit
Contrast Ratio 600: 1(typ. )
Resolution 800*600
Response Time 12ms
Backlight LED
Dimming range 10-100%
Viewing Angle (H)-70~70; (V) -65~55
Input Signal PC Connector: Analog input D-SUB-15pin Fh: 31KHz-80KHz Fv: 50Hz-75Hz
VIDEO NTSC/PAL Composite Video
1CH BNC In (Lever: 1.0V p-p/75ohm)
Optional S-Video, DVI, HDMI
Touch Screen (optional) Type 4-Wire or 5-Wire resistive
Interface USB or RS232
Resolution 4096*4096
Software Windows 7/Vista/XP/2000, Linus, Mac OS
Life Over 1 million
Surface 3H hardness
Power Input DC12V/2A
Operating Method 5 keys keypad OSD
Power Consumption Max. 20W
Operation Temperature -25~60
Operation Humidity 10%~80%
Storage Temperature -30~65
Storage Humidity 5%~85%
Case Material Alumium/Cool rolled steel
Net Weight 3kg
