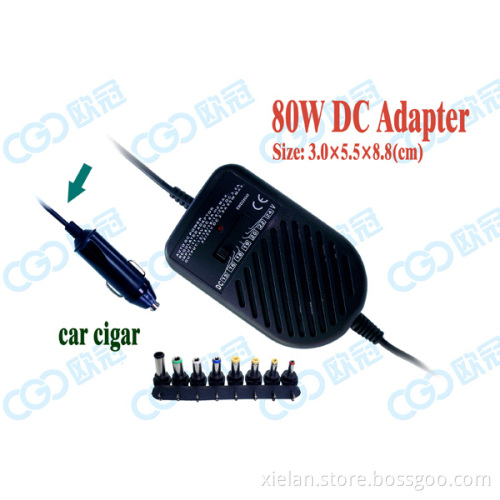

80W universal car charge

80W universal car charge

1.Small size,ultra audible sound box
2.OVP OCP OTP SCP
3.Safe standard:FCC CE EMC ROHS

Model:OGD-80057-PCM
Input voltage/frequency:DC-DC11V-14V
Input current:1.5A MAX
Output Voltage:2-24V                 15-24V
Output current:5.83A-2.92A        4.67A-2.92A

There are seven group of output voltage:(DC15V 16V 18V 19V 2OV 22V 24V USB5V)/(DC12V 15V 16V 18V 19V 20V 24V USB5V),Which are suited for brand laptops,such as DELL IBM TOSHIBA FUJITSU ACER COMPAQ SHARP SONY etc.

size:3.0*8.5*5.5(CM)
N/W(exclude the accessories and packing):0.164kg
Efficency:≥80%
Ripple and noise :100mvp-p
Starting time: <3s
100%load aging
warranty:12 months

Output protection:
over voltage protection
over current protection
over circuit protection
over temperature protection

Output load regulation: 5%
Output line regulation:2%
Operating way:constant voltage
Environmental:operating temperature:-10^oC-+40^oC
Storage temperature: -20^oC-+85^oC
Operating humidity:30%-85%
Storage humidity:10%-95%

Safe and regulatory standards:FCC CE
ROHS and EMC standard

Price includes Dc tips,AC cables and gift boxes,or AC cables ,DC tips and gift box can be made at customer's  request
