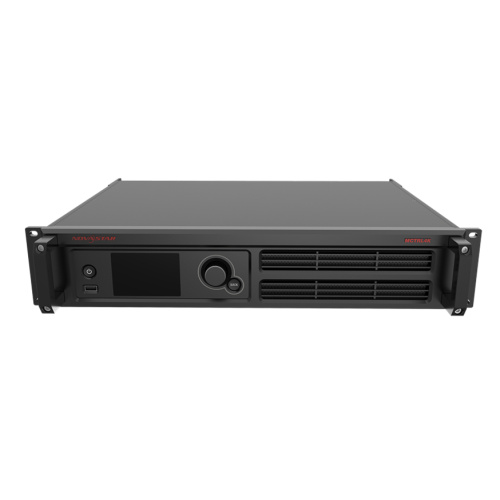

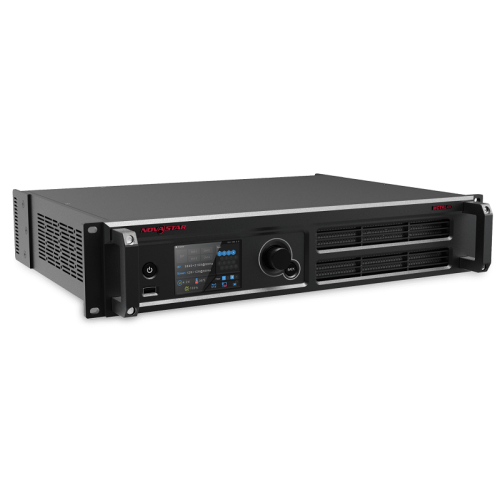

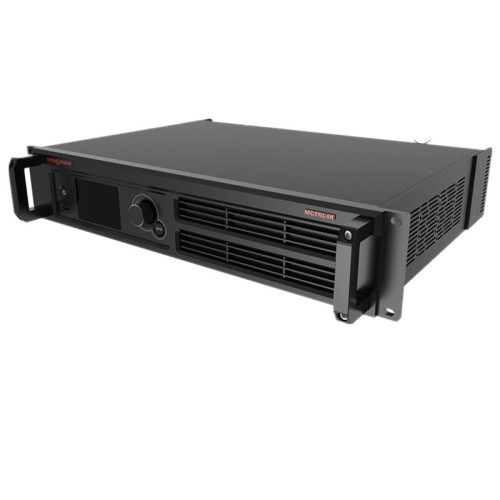

Novastar REAL 4K Led Display Screen Controller MCTRL4K

Description:

NovaStar MCTRL 4K LED Display Controller is a 4K x 2K controller with a charging capacity of up to 3840×2160@60Hz and supports any resolution in this range. These features make this controller suitable for very large and wide LED displays.

Two controllers in one device:

Using the Multi-Card mode, the MCTRL4K LED Display Controller can be split into two independent controllers and can play back signals from two input sources.

In addition, the controller supports HDR in conjunction with A8s or A10s (160203-1), which further increases the image quality.

If you need to bridge a long distance between your controller and the LED display, you can combine the MCTRL4K led display controller with a CVT4K-S/M to achieve a maximum distance of 300 meters or ten kilometers.
Hardware features:

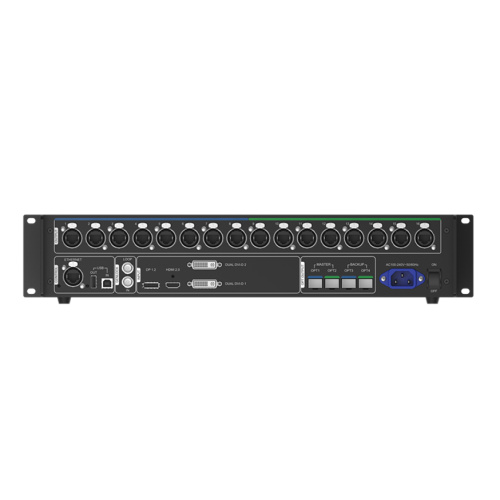

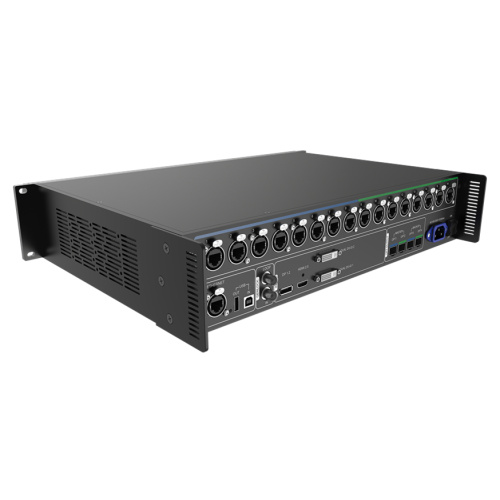

Inputs:

• 1x DP 1.2

• 1x HDMI 2.0

• 2x Dual-Link DVI

• 16x LED output (RJ45)

• 4x OPT Out (2x Main, 2x Backup)

• supports HDR10

• 8/10/12-bit color depth

• GENLOCK In/Loop

• Cascading via USB

• Control via USB or LAN (incl. web interface)

• Supply voltage: AC 100-240V, 50/60HZ

• Power consumption: 30 watts

• Dimensions: 482.6 x 372x 96 mm (WxDxH)(with rack rails); 435.6 x 330 x 89mm (WxDxH)(without rack rails)

• Weight: 4.6kg
