P1.25 High Definition 4K Indoor Led Display Panel

P1.25 High Definition 4K Indoor Led Display Panel

$1200.00 - $4750.00/Square Meter

Min. Order:: 1 Square Meter

Min. Order:: 1 Square Meter

Transportation:: Express, Ocean, Land, Air

Port:: shenzhen sea port, guangdong province, china

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Place of Origin:	shenzhen
Productivity:	4000sqm/mon
Supply Ability:	4000 Square Meter/Square Meters per Month
Payment Type:	L/C,T/T,Western Union,MoneyGram
Incoterm:	EXW
Certificate:	ISO
HS Code:	8528591090
Transportation:	Express,Ocean,Land,Air
Port:	shenzhen sea port,guangdong province,china

Product Description

What's The Fine Pixel Pitch led display

Fine Pixel pitch led display means the led screen can display fine video effect, Then, how to get that? frist, you need HD video resource. And most important, you need one high resolution led display so that afford your HD video resoure.

Fine pixel pitch led display, it have high resolution, high grey, easy installation feature.

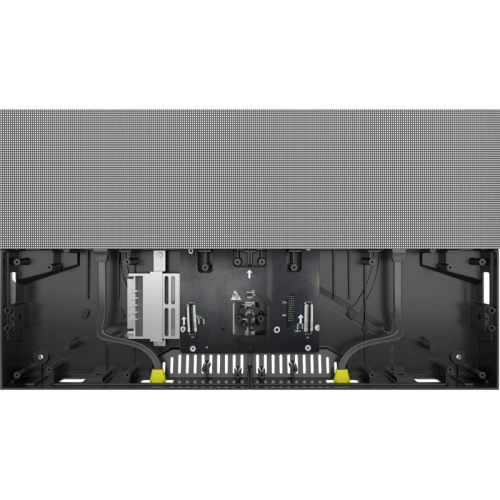

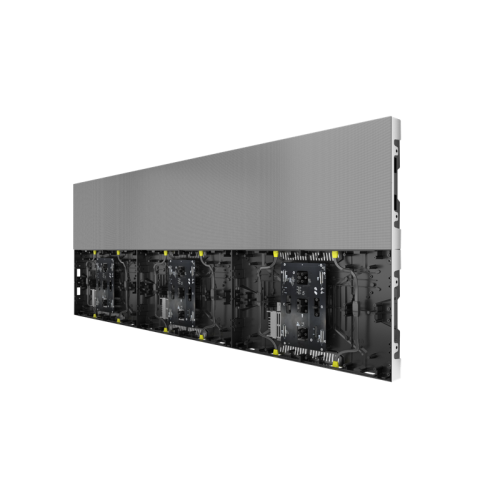

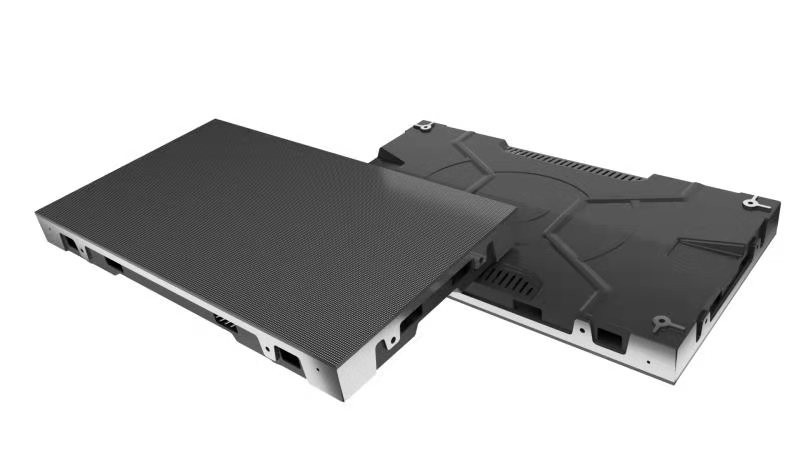

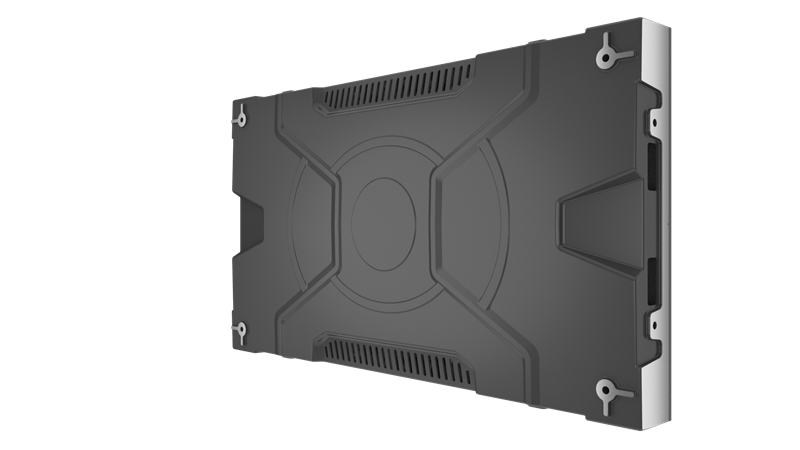

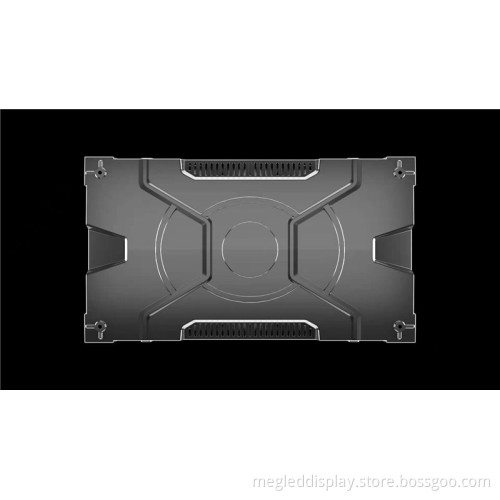

One big led screen is made of many panels, P1.25 high definition 4K indoor led display panel, panel size : 600*337.5mm, the ratio is 16:9, we call this gold ratio. if want one gold ratio led display. Fine pixel pitch led display will be the best solution.

Pixel Pitch	P0.9mm	P1.25mm	P1.56mm	P1.667mm	P1.875mm	P2.5mm
LED Package	Black SMD mini	Black SMD1010	Black SMD1010	Black SMD1515	Black SMD1515	Black SMD2121
Module Size	300*168.75mm	300*168.75mm	300*168.75mm	300*168.75mm	300*168.75mm	300*168.75mm
Module Resolution	320*180dot	240*135dot	192*108dot	180*102dot	160*90dot	120*68dot
Cabinet Size	600*337.5mm	600*337.5mm	600*337.5mm	600*337.5mm	600*337.5mm	600*337.5mm
Cabinet Resolution	640*360dot	480*270dot	384*216dot	360*204dot	320*180dot	240*136dot
Cabinet Materials	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum	Die casting aluminum
Cabinet Wegiht	6KG/PC	6KG/PC	6KG/PC	6KG/PC	6KG/PC	6KG/PC
Brightness	>600nits	>600nits	>600nits	>800nits	>800nits	>800nits
Refresh Rate	>3840hz	>3840hz	>3840hz	>3840hz	>3840hz	>3840hz
Max Power Consumption	500W/sqm	520W/sqm	500W/sqm	500W/sqm	400W/sqm	420W/sqm
Ave. Power Consumptio	120-180W/sqm	120-180W/sqm	120-180W/sqm	120-180W/sqm	120-180W/sqm	120-180W/sqm
Operating Humidity	10% - 95%	10% - 95%	10% - 95%	10% - 95%	10% - 95%	10% - 95%
Certificate	CE,ROHS,FCC,ACMA
Life Span	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours	>100,000 Hours
Input Source	HDMI, DVI, AVI, MPEG,VOB, RM, etc)

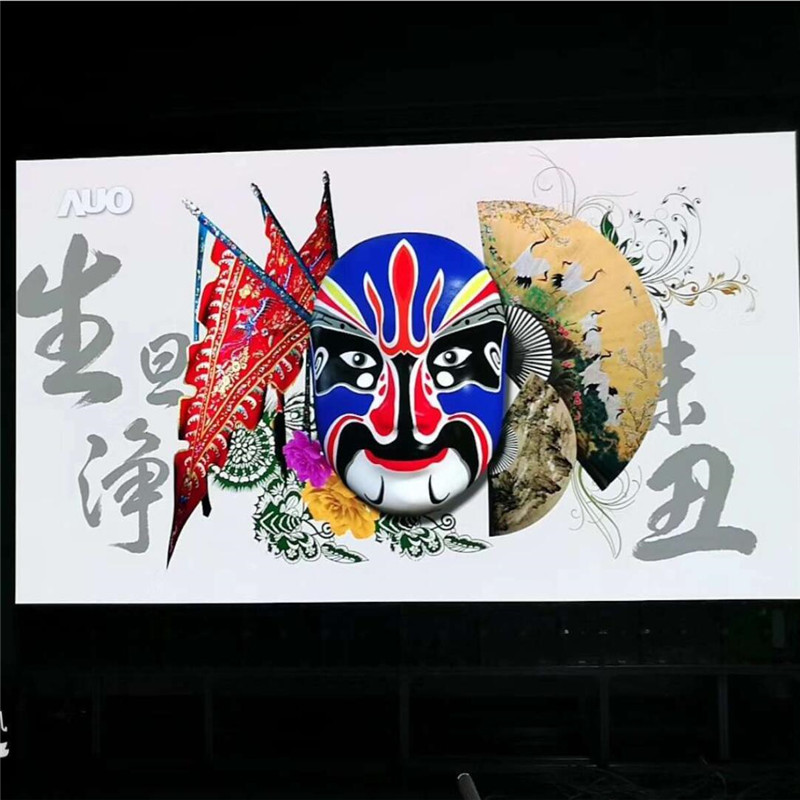

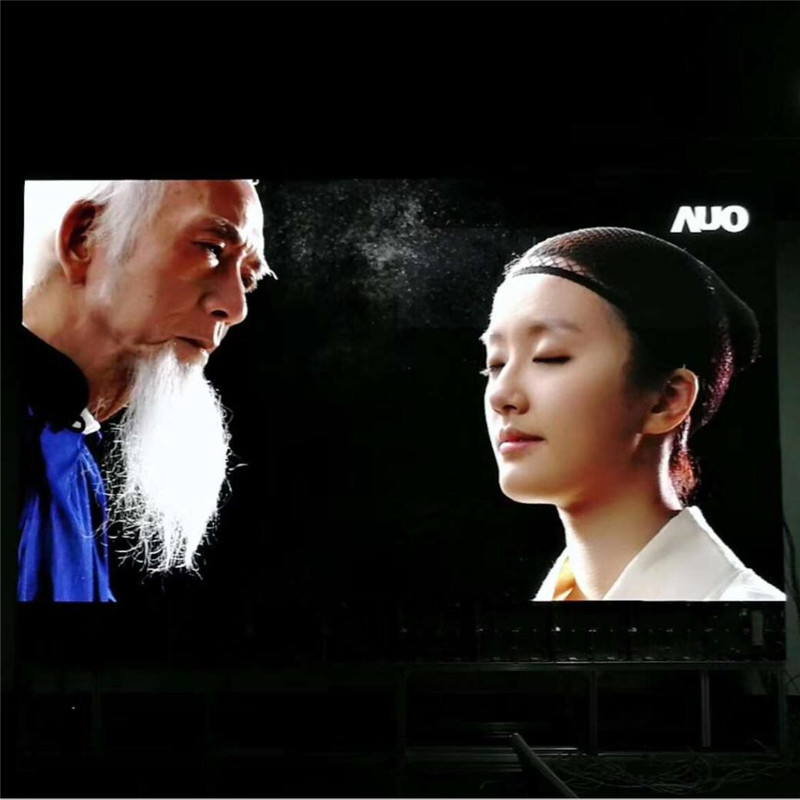

Indoor 4K Led Display Fine Pixel Pitch led display

Fine Pixel Pitch led display

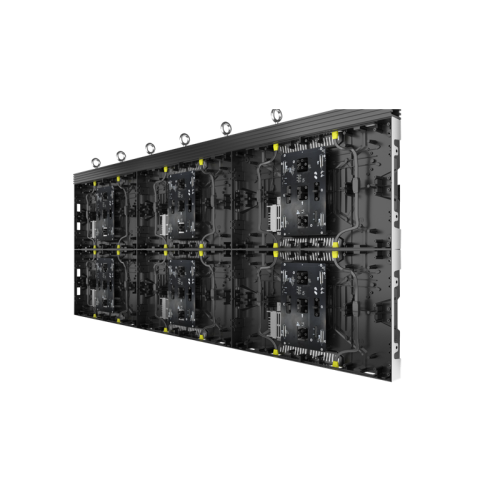

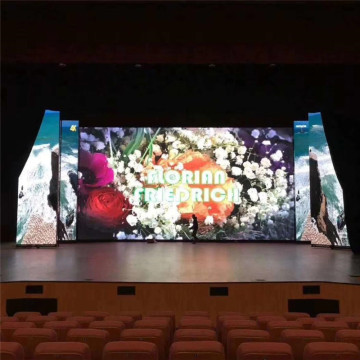

Because of Fine Pixel Pitch led display own extra thin and easy installation feature, most clients, use them for the HD 4K led video wall, to play the 4K or HD video.

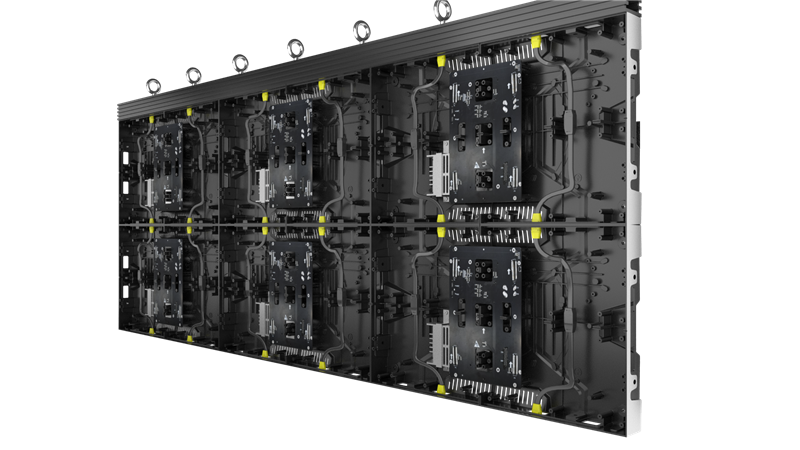

And, also extra light, fine pixel pitch led screen is good for hanging.

System Diagram

First adopt led screen solution, from the picture, we can see how to connect led screen to the computer or other video equipment.
