Medical Battery

ACE Battery Co., Ltd., as a reliable Chinese power battery manufacturer, focuses on the development, production, sales of lithium ion battery and LiFePO4 battery packs, serving diversified markets such as ESS, UPS, medical, material handling, power tools, and industrial cleaning, etc. Headquartered in Shenzhen, the company has production bases in Shenzhen, Dalian, Zhengzhou, Shandong, and other places.

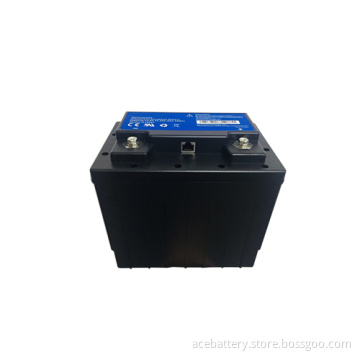

Medical Battery 12.8V/52Ah
Medical Batteries are mainly used in Medical products like Medical vehicle batteries/Emergency X-ray Machine/Portable B Supersonic Diagnostic Set/Medical Infusion Pump, medical lithium battery pack voltage include 12V/24V/36V/48V voltage range from 15~100Ah capacity.

Medical lithium ion batteries for medical devices, produced by lithium-ion battery factory, use ACE BMS manage the system with complete protection design to ensure ultra-high safety and reliability, Support I2C/SMBUS/CANBUS/RS484/RS232 Communication with high precision fuel gauge, and warning user to replace the ecg machine battery according to remain run time, to keep the medical battery system safe and continuous operation. Contact us for reasonable ecg machine battery price.

Medical Batteries, as high-quality lithium-ion batteries, can support parallel functions to extend capacity base on application, and support hot-swap function with medical equipment battery packs, and customers can replace medical battery pack to keep their device being continuous.

Features of Medical Battery 12.8V/52Ah
Maintained free
Cycle life is long
The capacity is higher than lead-acid
The BMS can communicate with the device
The device controller can monitor SOC% and SOH and so on

PHYSICAL SPECIFICATIONS OF MEDICAL BATTERY
Model Voltage Capacity Dimension (mm) Weight (kg) Case
Minimum Typical Length Width Height
YL18001 12.8 51.0Ah 52.5Ah 210 138 186 6.5 ABS

ELECTRICAL  SPECIFICATIONS OF MEDICAL BATTERY
Electrical Features
Charge Charge voltage 14.4±0.1V
Charge current 10.8A
Max charge current 40A  ≤2S
Discharge Continuously discharge current 30A
Peak discharge current 40A
Discharge Cut Off Voltage 9.6V
Temperature Charge temperature 0℃～+45℃
Discharge temperature -20℃～+60℃
Storage temperature -10℃～40℃
BMS Protection Over charge/over discarge, over current, over/under temperature, under voltage, short circuit, passive cell balance
Communication SMBus
