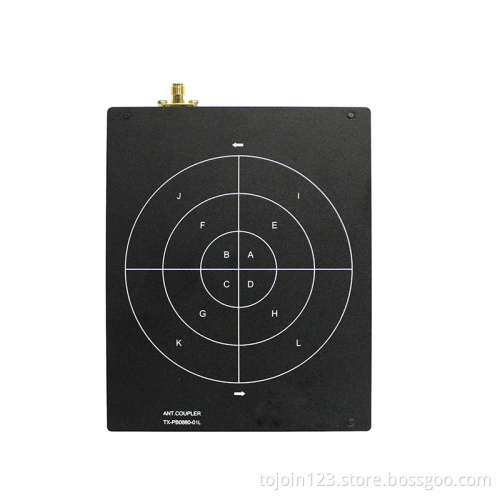

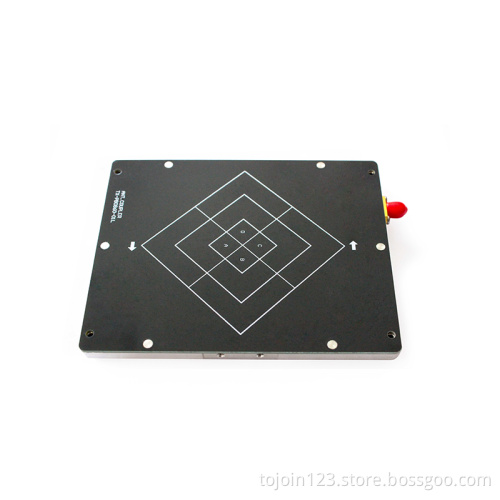

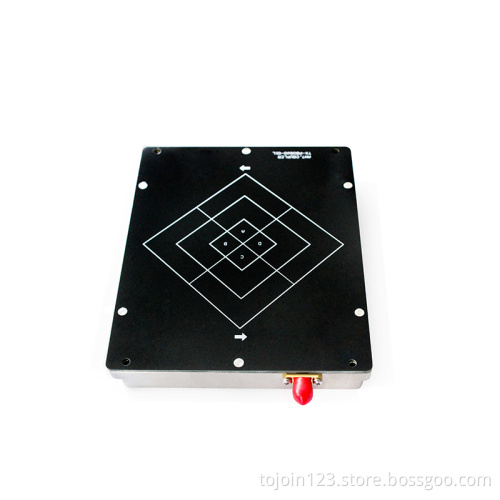

130×106×16mm 0.8~6GHz Coupled Antenna small for wifi power test
$150.00 - $160.00/Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
- Min. Order:
- 1 Piece/Pieces
Quantity:
Your message must be between 20 to 2000 characters
Contact NowBasic Info
Basic Info
| Payment Type: | T/T |
|---|---|
| Incoterm: | EXW |
Product Description
Product Description
Specifications:
| Parameter | Min. | Typ. | Max. |
| Frequency Range (GHz) | 0.8 | — | 6.0 |
| Insertion Loss (dB) | 8 | — | 18 |
| Polarization Mode | — |
vertical polarization |
— |
| VSWR | — | 2.0 | 2.2 |
| Input Impedance (Ω) | — | 50 | — |
| Connectors | — | SMA | — |
| Operating Temperature (°C) | -10 | normal temperature | +50 |
| Storage Temperature (°C) | -15 | — | +65 |
|
Physical Dimension(mm) |
— | 130*106*16 | — |
| Weight (g) | — | 250 | — |
