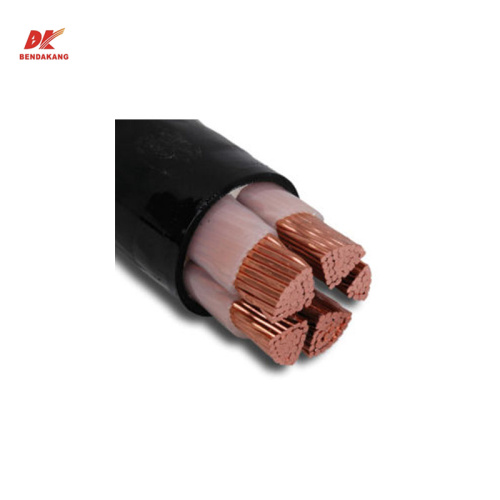

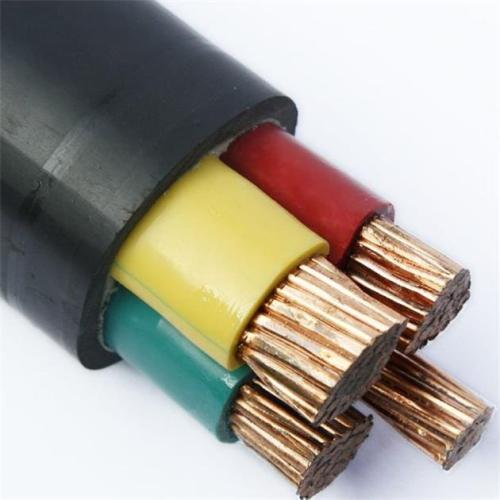

0.6/1KV Cu/XLPE/PVC Unarmoured Power Cable
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50 kilometer/ day |
| Supply Ability: | 50 kilometer/ day |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | SAA/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |
0.6/1KV XLPE Insulated Cable , XLPE unarmoured Power Cable description: 2 & 3 Core with Earth Circular Cable, Copper Conductor, X-90 XLPE Insulated,
90- PVC Sheathed, to IEC60502 AS/NZS 5000.1.and other types of. 2 Core + Earth 3 Core + Earth 35mm 95mm to 240mm,below for control,
monitoring circuits and protection circuits. The current domestic standard are IEC60502 BS6346 AND AS/NZS 5000 ,Plastic Insulated Power Cable.
CONSTRUCTION
1 Conductor
Plain circular, compacted or shaped stranded copper or aluminium conductor, conform to IEC 60228 class 2.
2 Insulation
XLPE ( cross-linked polyethylene ) rated at 90 °C.
3 Colours for core identification
Single core - natural ( black on request )
Two core - red, black
Three core - red, yellow and blue
Four core - red, yellow, blue and black
Five core - red, yellow, blue, black and green/yellow
4 Assembly
Two, three, four or five insulated conductors are laid up together, if necessary filled with non-hygroscopic material
compatible with the insulation. The filling may be omitted provided the outer shape of the cables remains practically
circular and no adhesion occurs between cores and sheath.
Noted:These cables are designated for general use including underground burial, where they are not likely to suffer mechanical damage.
Why choose us-BDK Cable ?
1. We engaged in oversea market from 2008, supply oversea partners around 60 countries.
based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.
2. A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .
3. A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.
4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
