Solar Panel Extension Cables
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 1 million meters/ week |
| Supply Ability: | 1 million/week |
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Certificate: | ISO 9001 |
| HS Code: | 85444929 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou |

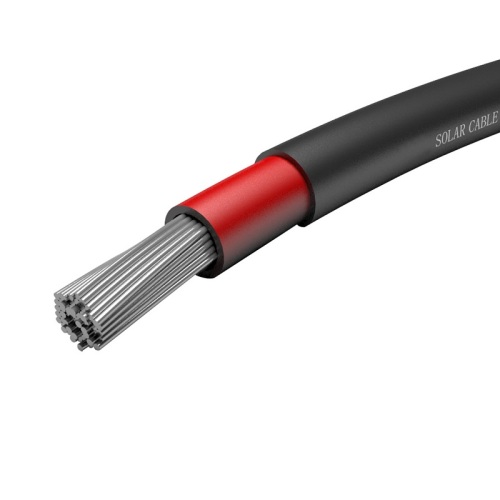

Solar Panel Extension Cables
Standards: 2PfG 1169/08.2007 (PV1-F),
Conductor: Class 5 Tinned Copper according to VDE0295/IEC60228
Insulation: Halogen Free, cross-linked, flame retardant compound
Cores: Single core, Flat 2 cores
Sheath: Halogen Free, cross-linked, flame retardant compound
Nominal Voltage: AC 1000/1000V, DC 1500V
Test Voltage: 6500V, 50Hz, 5Min
Temperature Rating: -40°C to 90°C ,More than 25 Years
Flame retardant according to IEC/EN 60332-1-2
Low smoke Halogen free according to IEC/EN 60754-1/2
UV Resistant according to HD 605 S2 EN60811-501
Applications
These 6mm solar pv cable are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions.
Approvals
Company Introduction
BDK is a leading cable wire China manufacture, the main products include: Coper wire, LV Power Cables, Solar Cable, PV1-F H1Z2Z2-K and other electric items.
The annual turnover reach USD 0.45 billion. We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
Exhibitions&Visiting
