AS/NZS 5000.1 Orange Circular Cable 0.6/1kV
-
$2.56≥1000 Meter
- Min. Order:
- 1000 Meter
- Min. Order:
- 1000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50KM per day |
| Supply Ability: | 50KM Per day |
| Payment Type: | T/T |
| Incoterm: | FOB,CFR,CIF,EXW,DAF,FCA |
| Certificate: | ISO/CCC/SAA |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |
The cable features a circular cross-section and is typically made of copper conductors with V90 PVC insulation and 5V-90 sheath. The orange color of the cable is used to indicate its high voltage rating, which typically ranges from 450/750V to 0.6/1kV.

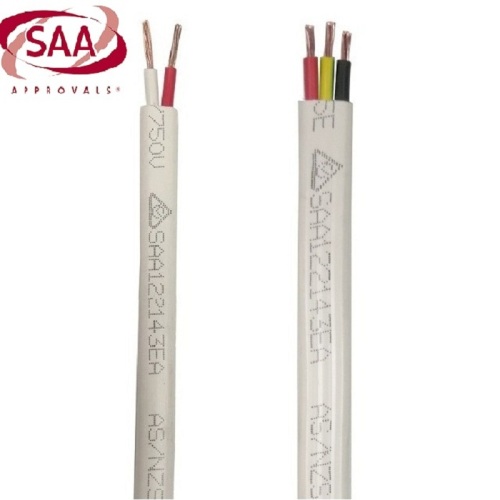

AS/NZS 5000.1 is the Australian and New Zealand standard that governs the design and installation of electrical wiring cable systems. It sets out the requirements for the selection, installation, and use of power cables, including the Orange Cable Circular. and twin and earth cable for AS/NZS 5000.2

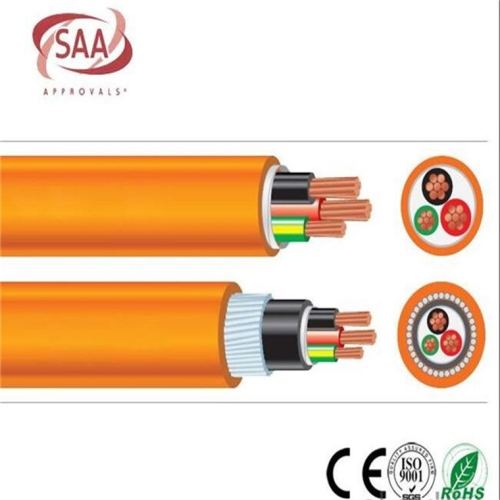

Overall, the AS/NZS 5000.1 covers Armored Cable, Electric Power Cable, Electrical Cable, Fire Cable, Low Voltage Power Cable. Orange Circular Cable is a reliable and durable power cable that is widely used in a variety of industrial cable and building wire commercial applications throughout Australia and New Zealand.and have SAA approval.

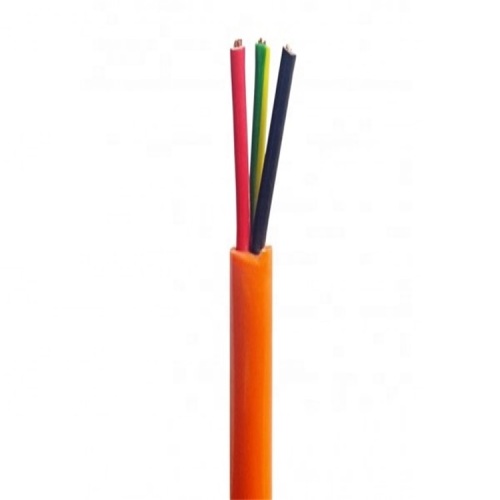

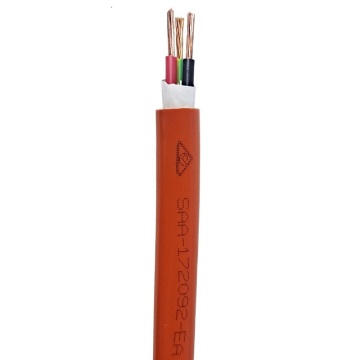

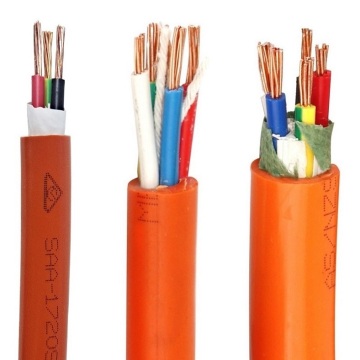

Orange Cable Circular 2C+Earth & 3C+Earth AS AS/NZS 5000.1
Application
These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit,
buried direct or in undergound ducts for buildings and industrial plants where not subject to
mechanical damage, suitable fo glanding.and suitable to be used in fixed installation especially
in power and lighting circuits of commercial buildings. It is resistant against UV and thus could
be used outdoors under sunlight.
Technical Data
Reference Standards : sizes 1.5mm2 to 6mm2 refer AS/NZS 5000.2
sizes 10mm2 to 120mm2 refer to AS/NZS 5000.1
Conductor : Fine plain annealed copper
Conductor Stranding : Multi–wire in acc. to AS/NZS 1125
Insulation Material : V-90, comply with AS/NZS 3808
Core colours : Red, White, Blue, Black, and Green/Yellow
Sheath Material : 5V-90, comply with AS/NZS 3808
Sheath Colour : Orange
Electrical Data
Voltage Rating : For sizes 1.5mm2 to 6mm2 - 450/750V
For sizes 10mm2 to 120mm2 - 600/1000V
Test Voltage : 3.5kV/5min to AS/NZS 1660
Insulation Resistance : Min 5 Mohm/km
Mechanical data
Min. Bending Radius :
≤ 25mm2 4 x OD (fixed installation)
≥ 35mm2 6 x OD (fixed installation)
Temperature Rating : -20°C up to +90°C
Flame Retardant : in acc. to AS/NZS 1660.5.1/IEC 60332.1
UV Resistant : in acc. to AS/NZS 5000.1 cl
Test Methods
- 450/750V comply with AS/NZS 5000.2
- 600/1000V comply with AS/NZS 5000.1
Standard packing
For conductor sizes 1.5 to 16.0mm2, packing in 1000m drum
For conductor sizes 25 & 35mm2, packing in 500m drum
For conductor sizes 50 & 120mm2, packing in 250m drum
