2.5mm Orange 2 Core and Earth Electrical Cable
- Min. Order:
- 5000 Meter
- Min. Order:
- 5000 Meter
- Transportation:
- Ocean, Land, Air
- Port:
- Shenzhen, Guangzhou, Shanghai
Your message must be between 20 to 2000 characters
Contact Now| Place of Origin: | China |
|---|---|
| Productivity: | 50 kilometer/ day |
| Supply Ability: | 50 kilometer/ day |
| Payment Type: | L/C,T/T,D/P,D/A |
| Incoterm: | FOB,CFR,CIF,EXW,FAS,FCA |
| Certificate: | SAA/ ISO |
| HS Code: | 854449 |
| Transportation: | Ocean,Land,Air |
| Port: | Shenzhen,Guangzhou,Shanghai |

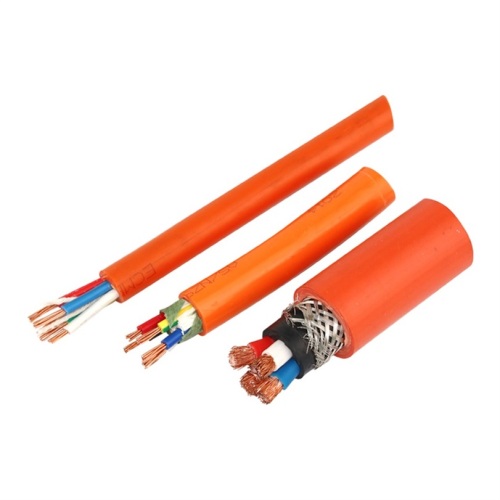

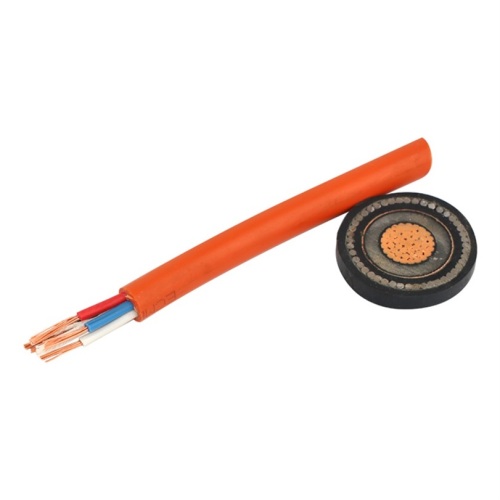

Multicore Core plus Earth Circular Orange Cable
2.5mm Orange 2 &3 Core and Earth Electrical Cable
Technical Data:
Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2
sizes 10mm² to 120mm² refer to AS/NZS 5000.1
Conductor : Fine plain annealed copper
Insulation Material : V-90
Core colours : Red, white, blue, gn/ye
Sheath Material : 5V-90
Sheath Colour : Orange
Electrical Data:
Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V
for sizes 10mm² to 120mm² - 600/1000V
Test Voltage : 3.5kV/5min
Insulation Resistance : Min 5 Mohm/km
Mechanical data:
Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)
≥ 35mm² 6 x OD (fixed installation)
Temperature Rating : up to +90°C
Application:
Low Voltage Orange Power Cables and Orange Circular Cable suitable for power networks, direct burial, outdoors,
indoors and in cable ducts, where not subject to mechanical damage may occur.
Orange Circular Cable are Multi Core Cables ranging from 2 & 3 Cores + Earth right up to 6 Cores + Earth
in a variety of different sizes from 1.5mm and above.
Why choose us-BDK Cable ?
1. We engaged in oversea market from 2008, supply oversea partners around 60 countries.
based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.
2. A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .
3. A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.
4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
