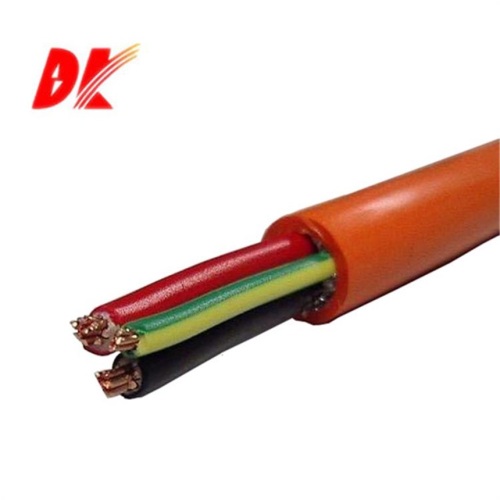

0.6/1KV PVC V-90 Insulated Orange Circular Power Cable

The Orange cable is a plastic cable used in construction and engineering. Its insulation and sheath are made of polyvinyl chloride material, referred to as PVC (plastic); This cable is not as good as XLPE cross-linked Power cable in terms of compression resistance and flame retardancy However, due to its low price, light weight, heat insulation, moisture resistance, flame retardant, easy construction, etc., and various specifications, colors and patterns, it is very decorative, and is widely used in production and life.

It is still widely used in the field of engineering.

0.6/1KV PVC V-90 Insulated Orange Circular Power Cables to AS/NZS Standard

Technical Data:

Reference Standards : sizes 1.5mm² to 6mm² refer AS/NZS 5000.2

sizes 10mm² to 120mm² refer to AS/NZS 5000.1

Conductor : Fine plain annealed copper

Insulation Material : V-90

Core colours : red, white, blue, gn/ye

Sheath Material : 5V-90

Sheath Colour : Orange

Electrical Data:

Voltage Rating : for sizes 1.5mm² to 6mm² - 450/750V

for sizes 10mm² to 120mm² - 600/1000V

Test Voltage : 3.5kV/5min

Insulation Resistance : Min 5 Mohm/km

Mechanical data:

Min. Bending Radius : ≤ 25mm² 4 x OD (fixed installation)

≥ 35mm² 6 x OD (fixed installation)

Temperature Rating : up to +90°C

Application:

Low Voltage Orange Power Cable and Orange Circular Cable suitable for power networks, direct burial, outdoors,

indoors and in cable ducts, where not subject to mechanical damage may occur.
