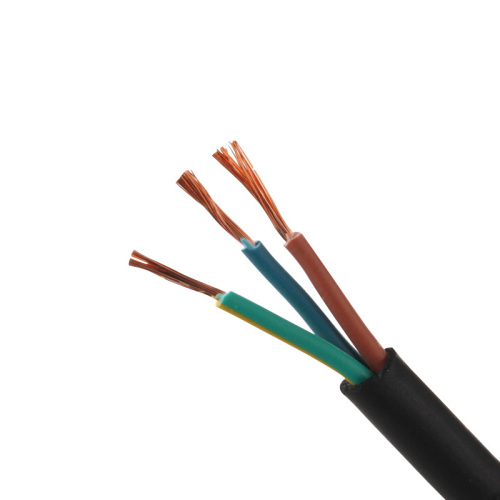

Multi-core 309-Y H05V2V2-F YY Control Flexible Cable

Application of flexible cable with the accelerated pace of modern industry, all kinds of electrified and intelligent machinery and equipment have developed rapidly, such as scrapers, power plant bucket wheels, cranes, loaders and other heavy handling equipment, which have become a major tool for mechanical operations. However, due to the particularity of the working nature and use environment of this type of equipment, to ensure its "safe and efficient" operation, a long-life multifunctional flexible flexible cable has become the top priority. The cable should not only have the power and control signal transmission functions required for special equipment operations, but also have the properties of softness, drag resistance, high and low temperature resistance, and movement resistance. It can work in different harsh environments and has a long service life. . The purpose of this project is to provide a multi-functional mobile flexible control cable, which can meet the transmission of cable power and control signals, and improve the flexibility, drag resistance, movement resistance and environmental fire resistance cable, so as to ensure the "safety of mechanical equipment". , efficient” operation.

Multi-core 309-Y H05V2V2-F YY Control Flexible Cable  300/500V

Conductor:Class 5 flexible plain copper conductors
Insulation:PVC (Polyvinyl Chloride)
Sheath:PVC (Polyvinyl Chloride)
Sheath Colour:White/Black
Voltage Rating:300/500V,450/750V
Temperature Rating:
-5°C to +70°C

Technical data:
Standard:  IEC60 227
Nominal voltage: 300 / 500 V,450/750V
Test voltage: 2000 V
Inflammability test: IEC 332-1
Max. permmisible temperature - fixed insulation: - 40 °C do + 70 °C
Max. permmisible temperature - flexing: -5 °C do +70 °C
Specific insulation resistance, 70 °C 108 Ωm
Minimum bending radius: 6 x ∅

Description: PVC Insullation Flexible cable composed of fine wire conductor, class 5,insulated with a layer of PVC compound .

It has two or more cores, bunch stranded and PVC sheathed.widely used CY cable, SY cable, YY cable, and LiYCY & LiYY cables

designed for a wide range of industrial process automation applications, including signal transmission, measurement, control and regulation.
