6242Y pvc insulated flat cable 2.5 mm
  • 6242Y pvc insulated flat cable 2.5 mm
  • 6242Y pvc insulated flat cable 2.5 mm
6242Y pvc insulated flat cable 2.5 mm
6242Y pvc insulated flat cable 2.5 mm

6242Y pvc insulated flat cable 2.5 mm

  • $0.80
    ≥5000 Meter
Min. Order:
5000 Meter
Min. Order:
5000 Meter
Transportation:
Ocean, Land
Port:
Shenzhen
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Supply Ability: 1 million/week
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF,EXW
Transportation: Ocean,Land
Port: Shenzhen
Product Description
Product Description

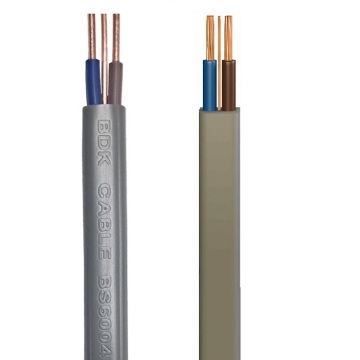

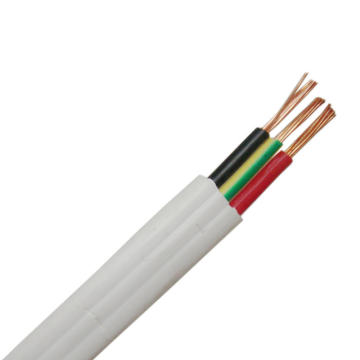

6242Y pvc insulated flat cable 2.5 mm twin and earth (also known as T&E) is a flat PVC insulated and PVC sheathed general wiring cable, they are used for fixed wiring of domestic wiring and lighting circuits, power outlets.

BDK twin earth cable are tested as per BS 6004, the third party test reports issued by GQI (Previously Known as CEST, a CNAS accredited testing body).

The Building Cables contain three conductors. the sizes range from 1mm2 up to 16mm2. The sheath colour can be Grey, White or as per request. The common type PVC outer sheathing Twin & Earth cable with (6242Y, 6423Y ) and LSZH sheathing Twin & Earth cable ( 6242B, 6243B,) are available

There are different packages for option: coil, reel, blister packaging.

twin and eart
item
value
Model Number
Twin and Earth 624Y 624B
Standard
BS 6004   BS 7211   300/500V
Certification
Third Party Test Reports
Conductor Material
Plain annealed copper solid (1.0 - 2.5mm2) or stranded(4.0- 16.0mm2) as per BS EN 60228
Insulation Material
PVC,    LSOH
Earth
non-insulated bare earth wire,  central protective circuit (CPC)
Sheath
PVC,   LSOH
Sheath Colour
Grey, White or as per request

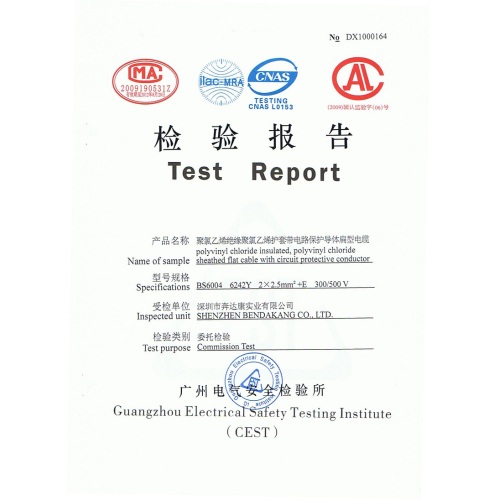

Third Party Test Reports
6242Y
Company Introduction

cable manufacture
Shenzhen Bendakang Cables Holding Co., Ltd, a leading copper wire cable manufacture , the main products include: twin and earth cable, LV Power Cable, Armored Cable, PV Solar Cable and other electric items.

The construction area cover 300,000 square meters, with around 350 workers, the annual turnover reach USD 0.45 Billion. We are the qualified supplier of State Power Grid, China Southern Power Grid and Vanke Group, Country Garden,ect and other large, medium partners around the world.
