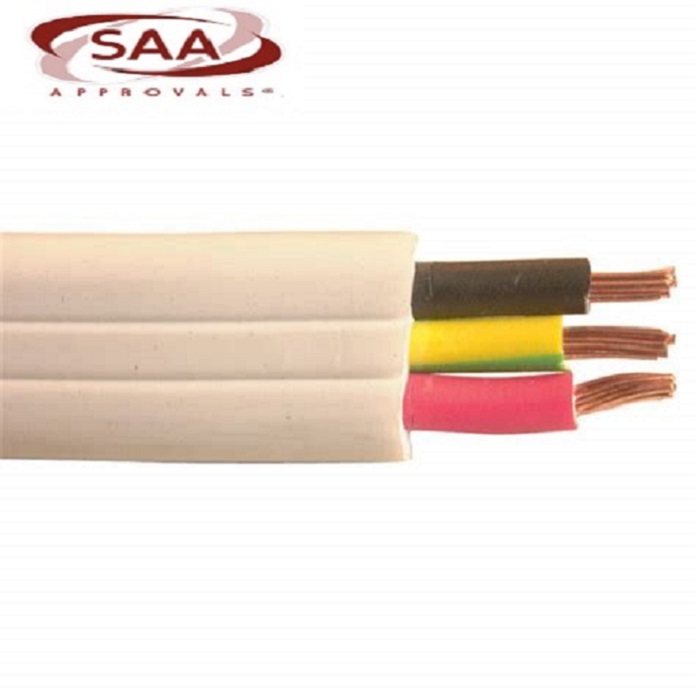

2.5mm Flat Twin and Earth Cable Australian Standard

2C+E Flat PVC

PVC INSULATED LAID FLAT AND PVC SHEATHED CABLE TO AS/NZS 5000.2
CABLE CHARACTERISTICS:
For general wiring, unenclosed, enclosed in conduit, buried direct or in underground ducts for domestic, commercial and industrial installations where not subject to mechanical damage.

CONDUCTOR:

Plain annealed copper conductor to AS/NZS 1125Maximum continuous operating temperature: 75°C
Can also be operated at temperatures up to 90ºC when not exposed to mechanical deformation

INSULATION:
V-90 PVCColours: Red, Black, Green/Yellow

SHEATH:
3V-90 PVCColours: White

Based on 75°C conductor temperature, 40°C ambient air temperature and where applicable, burial depth of 0.5m, soil temperature of 25°C and soil thermal resistivity of 1.2°C.m/W. Refer to AS/NZS 3008.1 for other installation conditions
