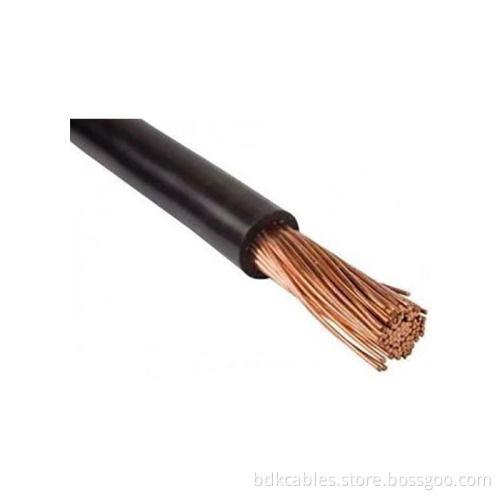

Single core flexible pvc insulated electrical cable wire

Application

Electrical Wire designed for internal wiring in switch control, relay and instrumentation panels of power switchgear and for purposes such as
stationary, static appliances, internal connectors in rectifier equipment, motor starters and controllers.

Standard

DIN EN 50525-2-31,  BS EN 50525-2-31.VDE 0285-525-2-31,

Technical Data

Voltage Rating : H05V-K 0.5 to 1 mm² - 300 / 500V, H07V-K 1.5 to 240 mm² - 450 / 750V
Temperature Range : -30°C to +70°C
Minimum Bending Radius :
Cable diameter ≤ 8 mm : 4 x outer diameter
Approx. diameter > 8 to 12 mm : 5 x outer diameter
Approx. diameter > 12 mm : 6 x outer diameter
Test Voltage : 2500V

Construction

Conductor Class 5 flexible plain / metal coated stranded according to EN 60228.
Insulation PVC (Polyvinyl chloride) TI1 to BS EN 50363- 3.

Properties

PVC self-extinguishing and flame retardant according to EN 60332-1-2.

Cable Design Parameters

Kindly complete the part numbers for these cables by adding the suffix (in place of ‘xx’) for the colour required:
01 – green, 02 – black, 03 – red, 04 – blue, 05 – yellow, 06 – green/yellow, 07 – white, 08 – violet, 09 – brown, 10 – orange, 11 – pink, 12 – grey.
By adding the suffix (in place of ‘c’) for the conductor type required: 0 = Annealed Bare Copper (ABC), 1 = Annealed Tinned Copper (ATC)

Ans other types of electrical cable and electric wire, copper wires

Why choose us-BDK Cable ?

1. We engaged in oversea market from 2008, supply oversea partners around 60 countries.

based on high quality, the cables had passed SAA certified, CE certified, CB certified,CCC and RoHS, etc; third party testing. We are well experience in producing the cables as per IEC, AS/NZS, BS,VDE, SABS, etc and clients’ request. We guarantee 100％ quality, on-time delivery, and 5-star after-sales services.

2. A large factory, annual turnover reach USD 0.3 Billion,bulk purchasing, standardized production, price competitive, quality assured, We have a great of advantage in types of LV power cables manufacturing and armored cable .

3. A leading, reliable Electrical Wires & Electrical Cables manufacture, we value your each inquiry, order, fulfill our each promise.

4. We have a great variety of wires and cables , IEC standards Flexible cable ,XLPE/PVC insulated Copper wire , House wiring , armoured power cable ,etc.. and AS/NZS standards Flat TPS Cable , Orange Circular Cable ,Building wire and so on…
