X Ray Machine Screening Scanner Machine SF100100

X Ray Machine Screening Scanner Machine SF100100

Get Latest Price

Min. Order:: 1 Unit

Min. Order:: 1 Unit

Transportation:: Ocean

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	200 Unit/Units per Month
Payment Type:	L/C,D/P,D/A,T/T,Paypal,MoneyGram
Incoterm:	FOB
Transportation:	Ocean
Port:	SHENZHEN

Product Description

Electronic Scanning Airport X Ray Machine Reliable Security Screening Scanner Machine SF100100

General Specifications

Tunnel Size :	1000 (W) ×1000 (H) mm
Power Requirement:	220V AC (±10%) 50±3Hz
Power consumption:	1.0KW (Max)
Noise level:	<58dB
Conveyor Speed:	0.22m/s
Conveyor Max Load:	38AWG
Spatial Resolution:	1.0mm Horizontal and Vertical
Steel Penetration:	38mm
Single inspection dosage:	< 1.6μGy
Leakage radiation:	<0.2µGy/h
Film Safety:	Guarantee ISO1600 Film

X-Ray Generator
Voltage:			100-160KV (Adjustable)

Tube Current:			0.4 ~1.2mA (Adjustable)
Cooling:			Sealed oil bath with forced air
Duty Cycle:			Rated for 100%Duty Cycle
Beam Direction:			Downward
Beam Angle:			80°
Detector:			L-shaped Array

Main Features

1.Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time
2.Safety ray: Ray is transmitted under automatic control, avoiding the error
3.One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient
4.Eagle eye: Capable of expediently observing the magnifying area
5.Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Certifications

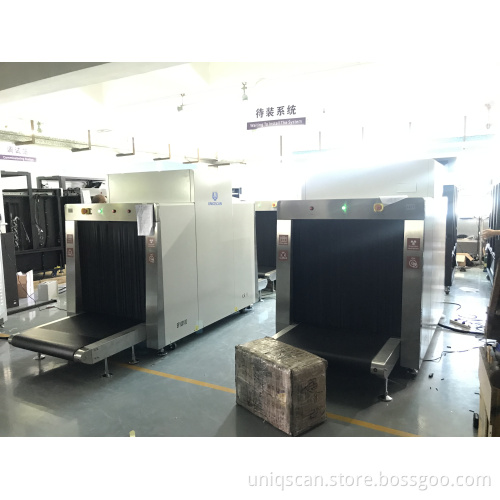

Detailed Images

Machine Parts

Name: Keyboard

Main Features

Name: Rollers

Machine Parts

Name: Detecting board

Main Features

Name: Tool box

Packing & Delivery

Packaging
Size	2350(L)1030(W)1440(H) 1430(L)710(W)710(H)mm
Weight	665 KG/unit
Packaging Details	The normal package is wooden box, If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
