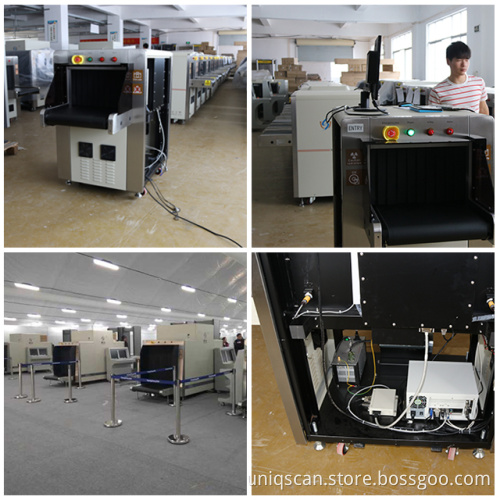

x-ray baggage scanner detector for Hotel, Parison, Sport

UNIQSCAN high resolution SF6550 dual energy x-ray baggage scanner detector for Hotel, Parison, Sport ect

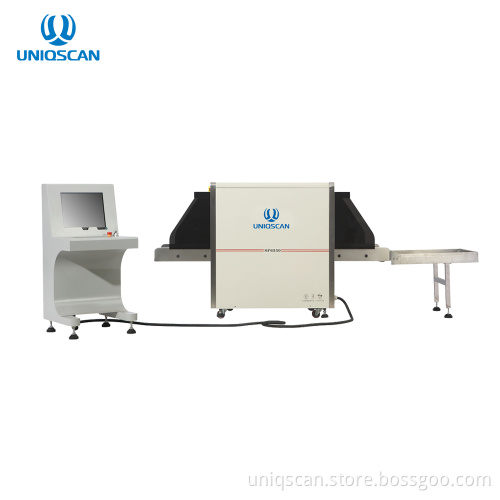

Model: SF6550

General Specifications

Tunnel Size : 650 (W) ×500 (H) mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 180 kg

Single inspection dosage: < 1.32μGy

Wire Resolution: 40AWG

Steel Penetration: 40mm

Film Safety: For ISO 1600

X-RAY GENERATOR

Orientation: Upward

Tube Current:0.4~0.7mA(adjustable)

Anode Voltage: 140-160KV(adjustable)

Angle: 80°

Generator cooling/working periods:

Sealed oil bath with forced air/100%

OPERATING ENVIRONMENT

Storage Temperature: -20oC to 60oC

Operating Temperature: 0oC to 45oC

Relative Humidity:

20 to 95% non-condensing

System Power: 220 VAC (±10%) 50±3HZ

Power wastage: 1.0 KW (Max)

Noise<65DB

X-RAY Sensor:

L-shaped array detector

24bit

Dual energy

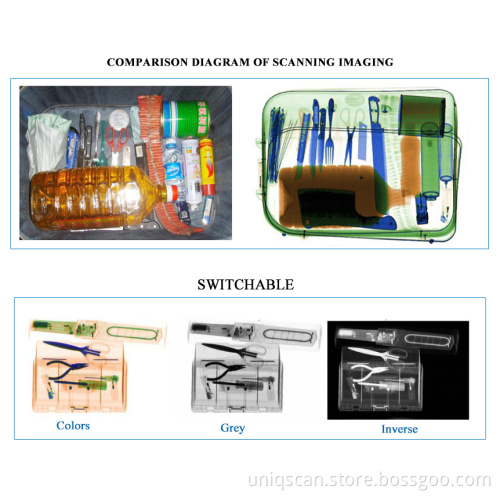

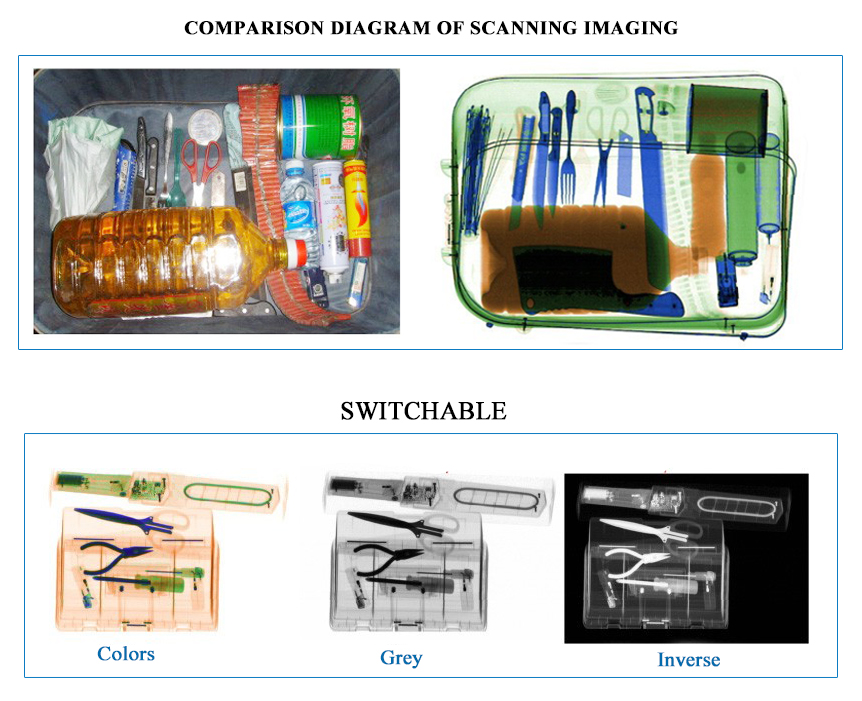

Image Performance System:

Display:  High-resolution 19 inch color LCD display

Color quality: 24-Bit real colors based on materials

Edge enhancement: Object contour edge is more distinct

Super image enhancement: Image detail is more distinct

High penetration display: Increase the contrast of bright area in image to make the area that is easy to penetrate appear more clearly

Low penetration display: Increase the contrast of dark area in image to make the area that is difficult to penetrate appear more clearly.

Magnifier: Partial magnifying function

Brightening/dimming: Increase/Decrease brightness of image

Image recurrence: Display the previous twenty images and process any one of them

Image restoration: Restore image to initial status

Image storage: Real-time store any image and process it in operation status

Special features:

Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

Safety ray: Ray is transmitted under automatic control, avoiding the error

One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

Eagle eye: Capable of expediently observing the magnifying area

Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

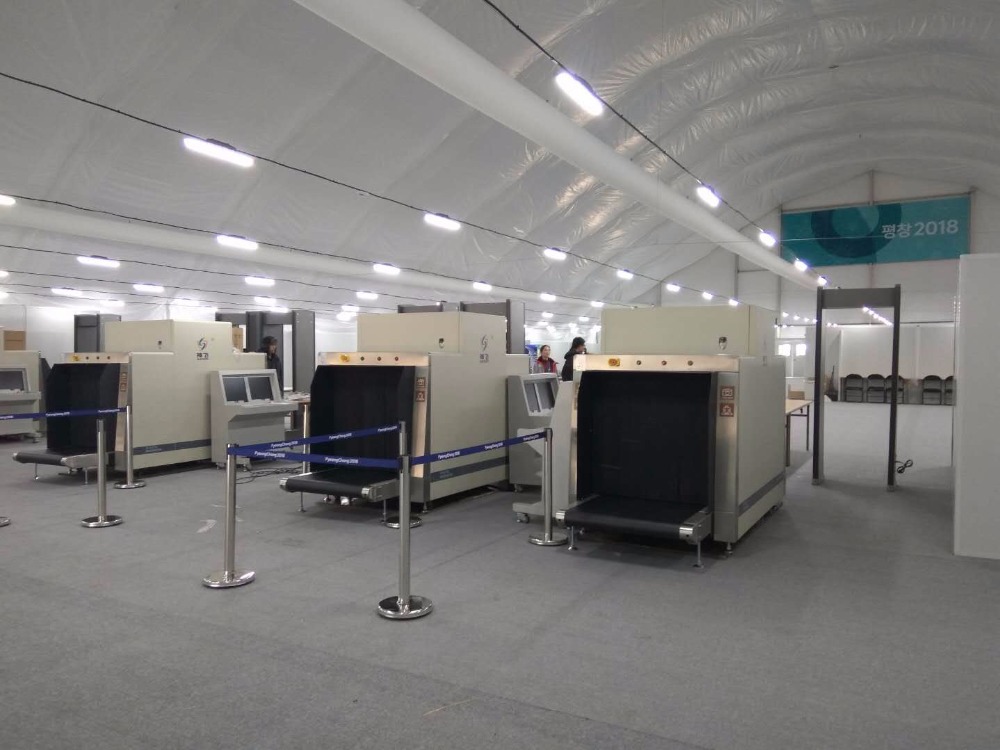

Application

Exhibition center,Station, Electronic Factory, Bank, Prison, Government office, Hotel etc
