UNIQSCAN X-ray baggage scanner safety detector SF8065

UNIQSCAN X-ray baggage scanner safety detector SF8065

$17000.00

1-4 Others
$16800.00

≥5 Others

Transportation:: Ocean

Port:: SHENZHEN

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Supply Ability:	200 Unit/Units per Month
Payment Type:	L/C,D/A,D/P,T/T,Western Union,Paypal,MoneyGram
Incoterm:	FOB
Transportation:	Ocean
Port:	SHENZHEN

Product Description

UNIQSCAN Xray Luggage Scanner Security Baggage Detector SF8065

Product Application

Main Features

1. Network interface: Capable of connecting to LAN, and support multi-terminal check for baggage at same time

2.Safety ray: Ray is transmitted under automatic control, avoiding the error

3.One-key shutdown control: Just rotate the key to shut down the machine; it is safety, easy and convenient

4.Eagle eye: Capable of expediently observing the magnifying area

5.Self-diagnosis function: Give message automatically if malfunction for prompt maintenance

Certifications

Detailed Images

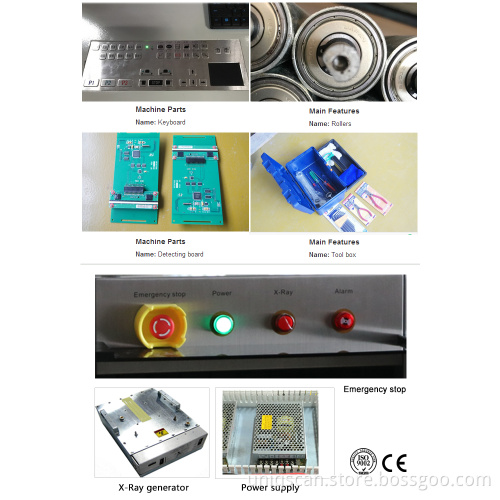

Machine Parts

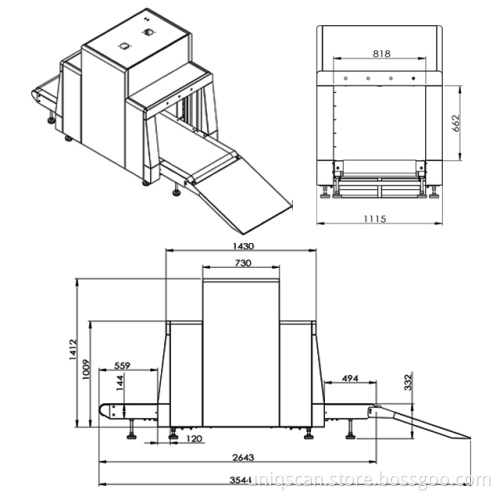

General Specifications
Tunnel Size : 500 (W) ×300 (H) mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 100 kg
Single inspection dosage: < 1.32μGy
Wire Resolution: 40AWG
Steel Penetration: 10mm
Film Safety: For ISO 1600

Main Features

Tunnel Size : 650 (W) ×500 (H) mm
Power Requirement: 220V AC (±10%) 50±3Hz
Power consumption: 1.0KW (Max)
Noise level: <58dB
Conveyor Speed: 0.22m/s
Conveyor Max Load: 170 kg
Wire Resolution: 40AWG
Spatial Resolution: 1.0mm Horizontal and Vertical
Steel Penetration: 40mm
Single inspection dosage: < 1.2μGy
Leakage radiation: <0.1μGy/h
Film Safety: Guarantee ISO1600 Film

Machine Parts

6 zones standard
Power Supply:AC85V-264V
Working temperature:-20℃--+50℃
Working Frequency :4KHZ-8KHZ
Standard External size: 2200mm(H)X800mm(W)X580mm(D)
Standard Internal size: 2010mm(H)X700mm(W)X500mm(D)
Package size for door panels: 2260*650*260mm *1ctn
Package size for control unit: 780*390*250 mm*1ctn
Gross weight: 70KG

Main Features

4 levels Sensitivity: Low sensitivity, normal sensitivity, high sensitivity and ultra-high sensitivity
Power: dedicated 7.4V lithium battery, 9V Ni-MH batteries.
Ultra-long standby: about 100 hours long standby time, dedicated lithium up to 500 hours.
Charger: optional
Operating temperature: -20℃~+65℃(relative humidity:0~95%)
Size: 350X80X60(mm)
Weight: 200g
Material: shock, impact resistant ABS plastic.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support. Two years warranty

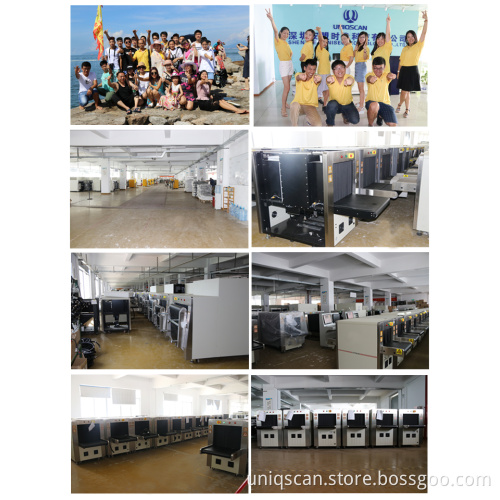

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	200012101690 14401250710
Weight	800KG/unit
Packaging Details	The normal package is wooden box, If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
